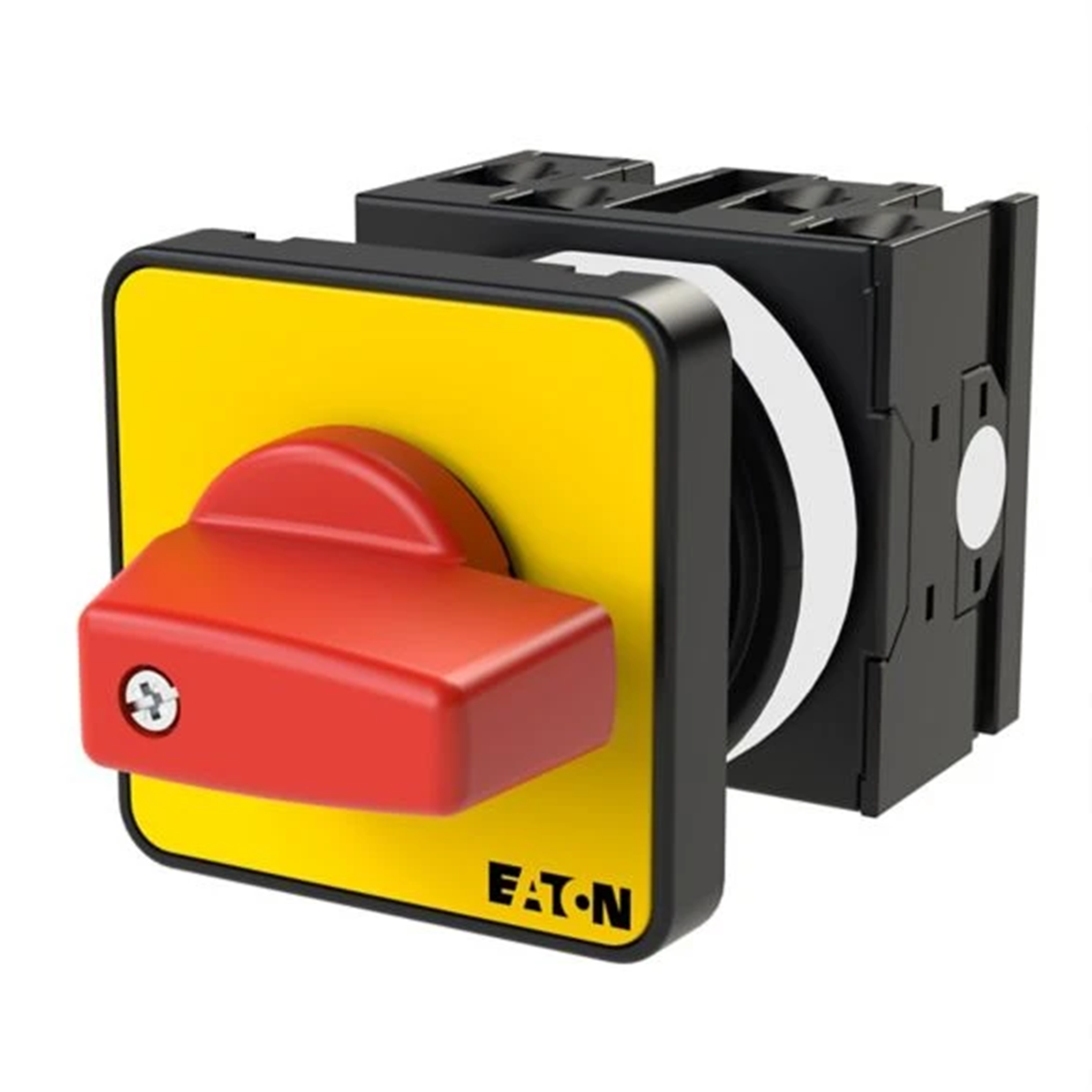

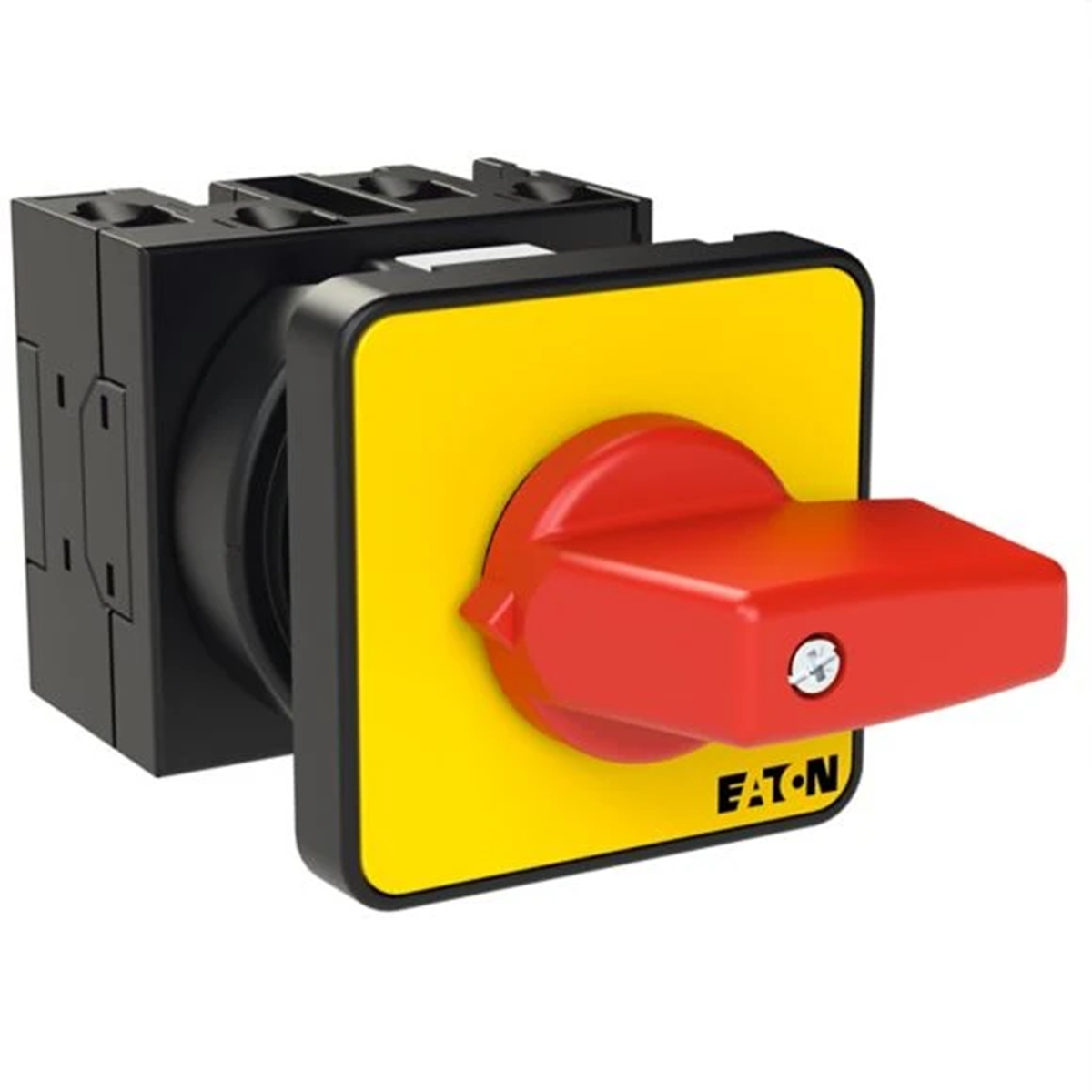

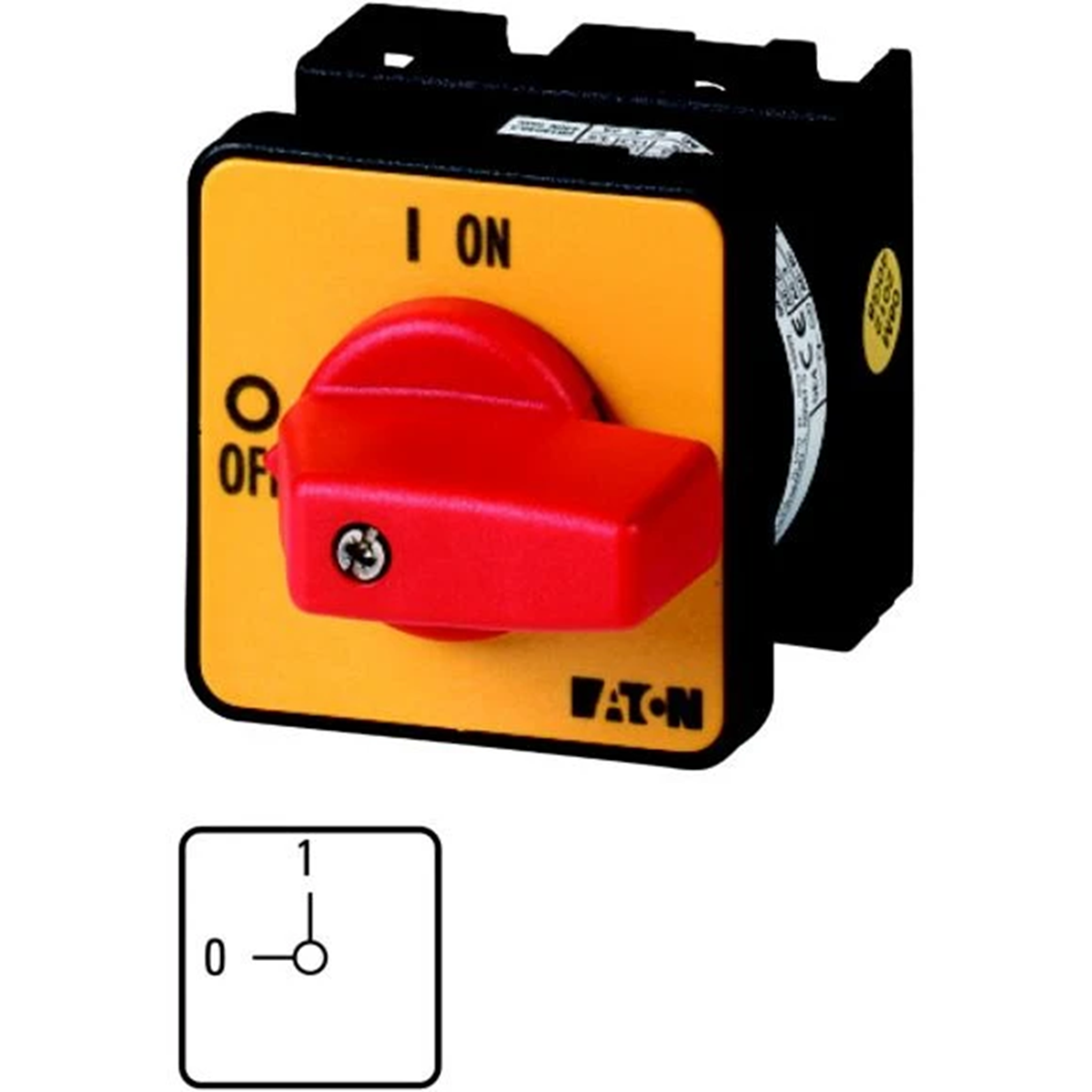

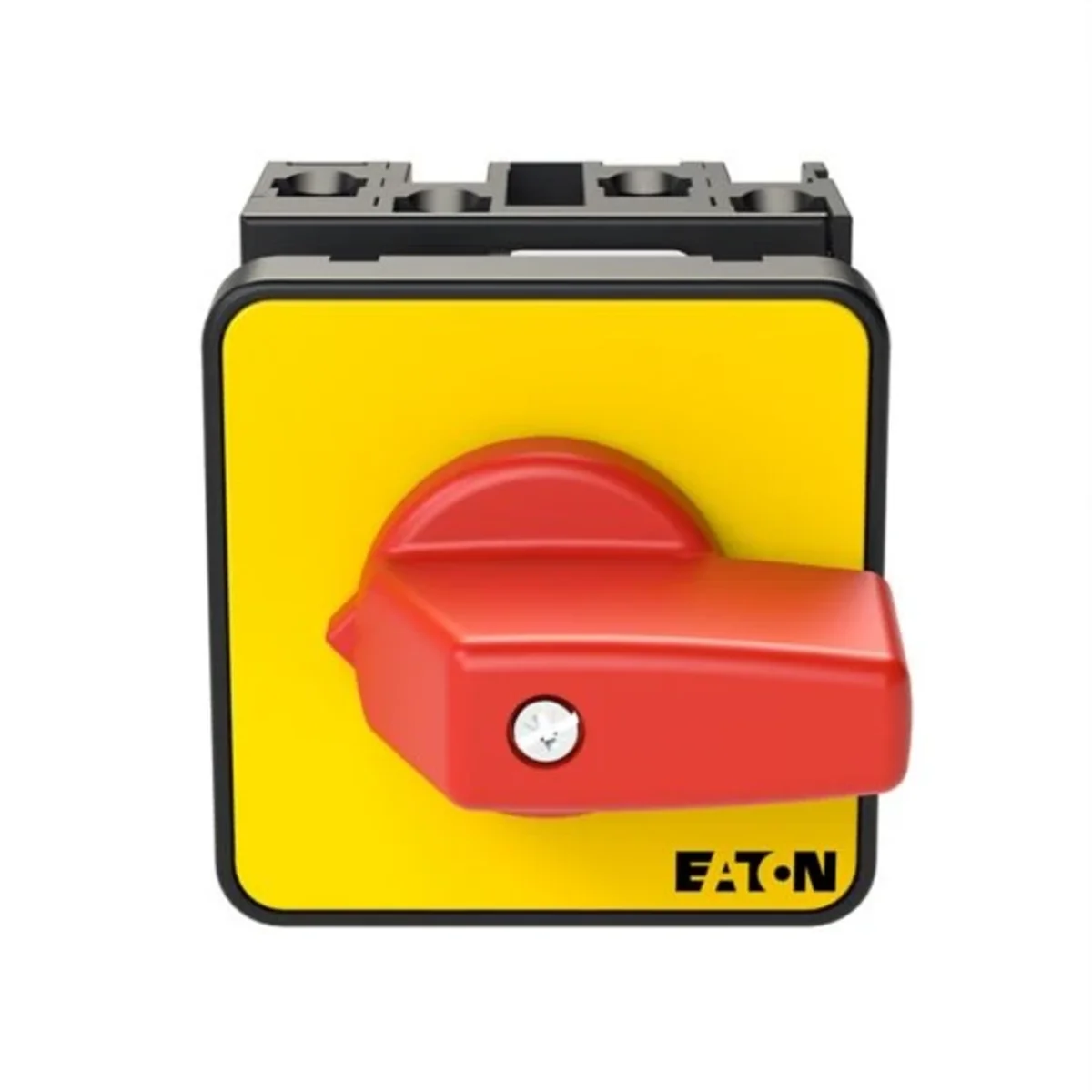

Cam switch, 20A, 6.5kW, T0-2-1/E-RT 011082
local index:
ALK014MOEL
Catalog No:
011082
EAN code:
4015080110828
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
6.5
Main circuits:
3z
Rated current [A]:
20
See full description
Price:
29,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Cam switch In=20A P=6.5 kW
Technical data
Power [kW]
6.5
Rated current [A]
20
Main circuits
3z
Other technical data
Version as main switch
No
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
20 A
Rated operation power at AC-3, 400 V
5.5 kW
Rated operation power at AC-23, 400 V
5.5 kW
Conditioned rated short-circuit current Iq
6 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Yes
Suitable for distribution board installation
No
Colour control element
Red
Interlockable
No
Degree of protection (IP), front side
IP65
Version as maintenance-/service switch
No
Version as emergency stop installation
Yes
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-21, 400 V
20 A
Rated short-time withstand current lcw
0.32 kA
Switching power at 400 V
5.5 kW
Number of poles
3
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
No
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
12
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,139
Volume (m3)
0,001
Width (m)
0,075
Length (m)
0,147
Depth (m)
0,065
