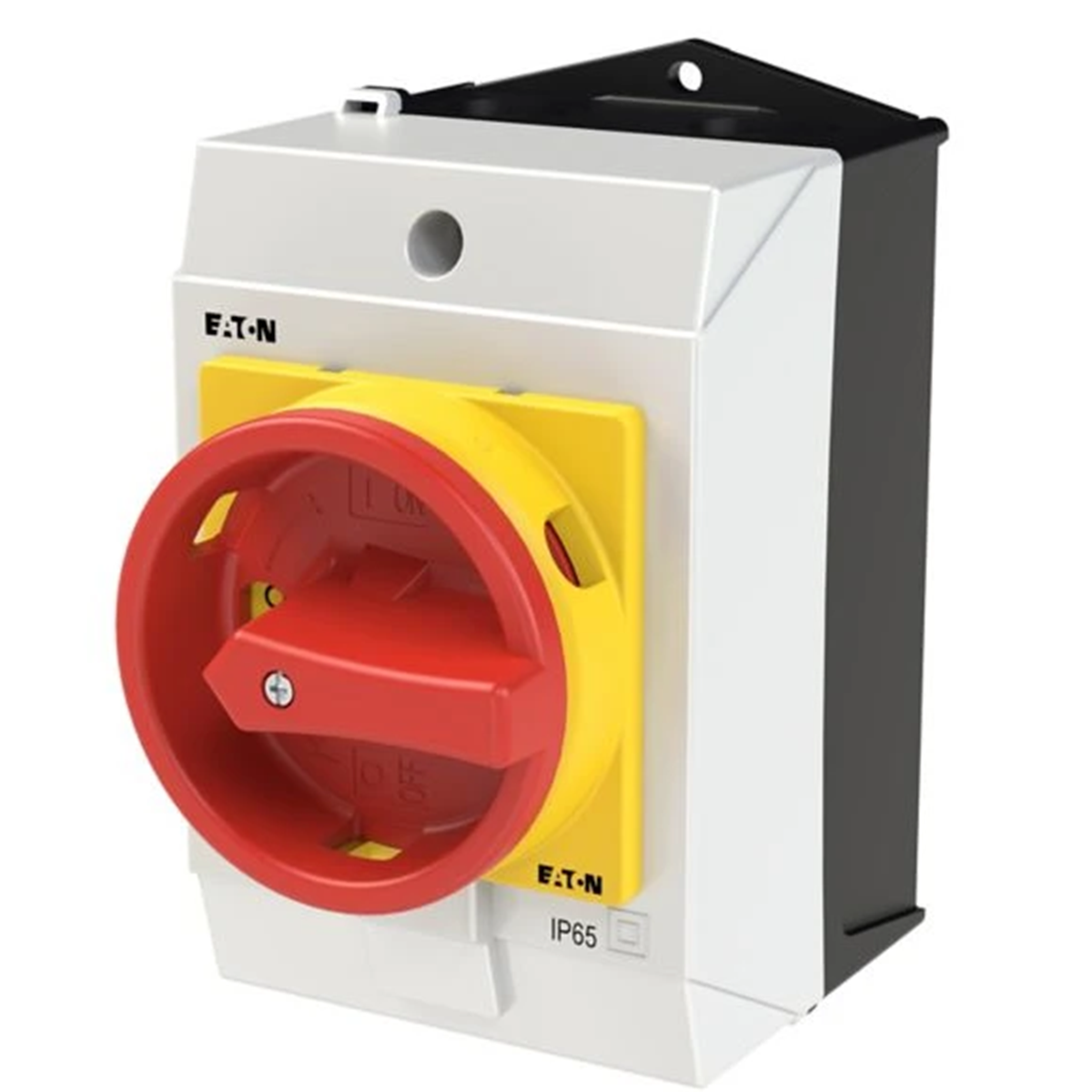

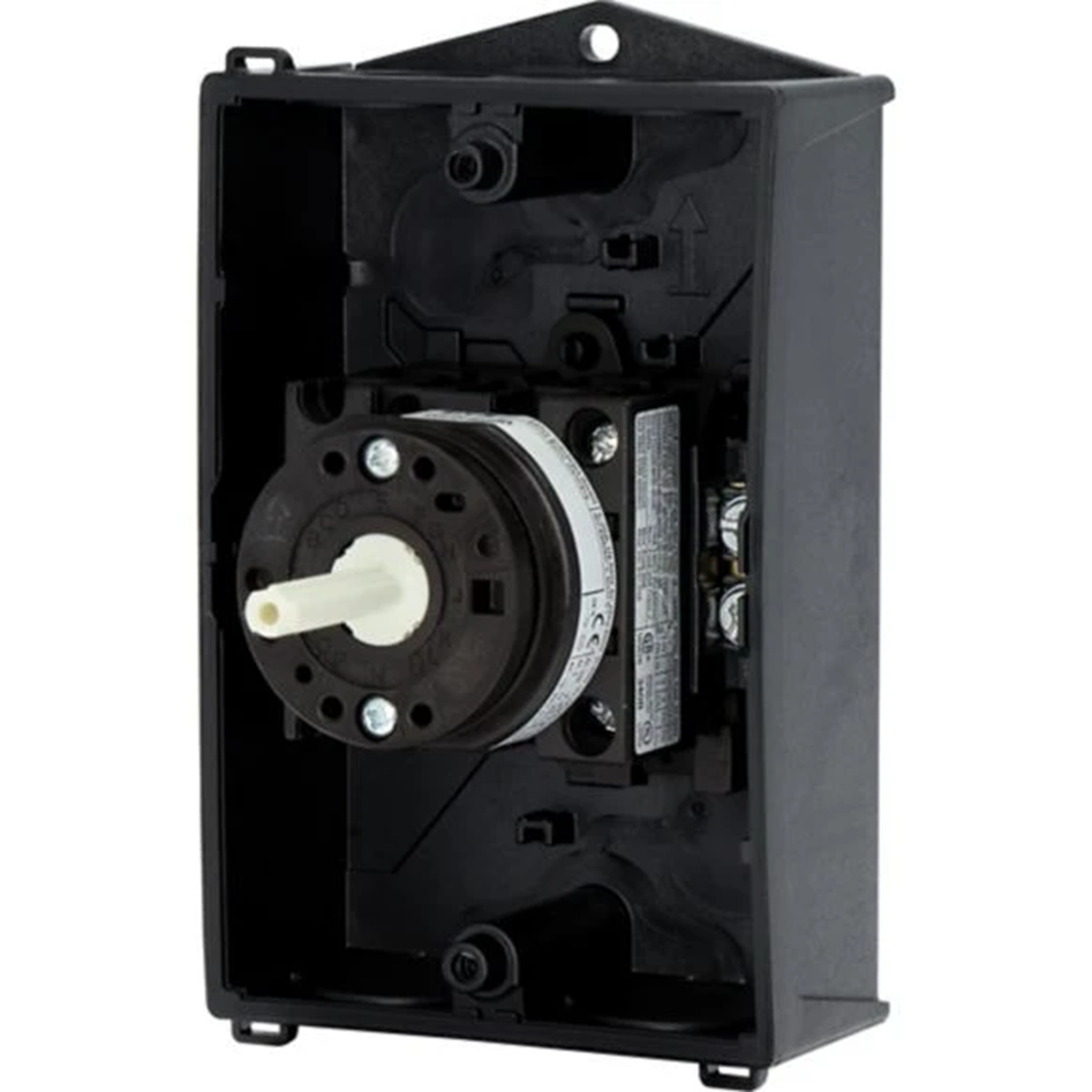

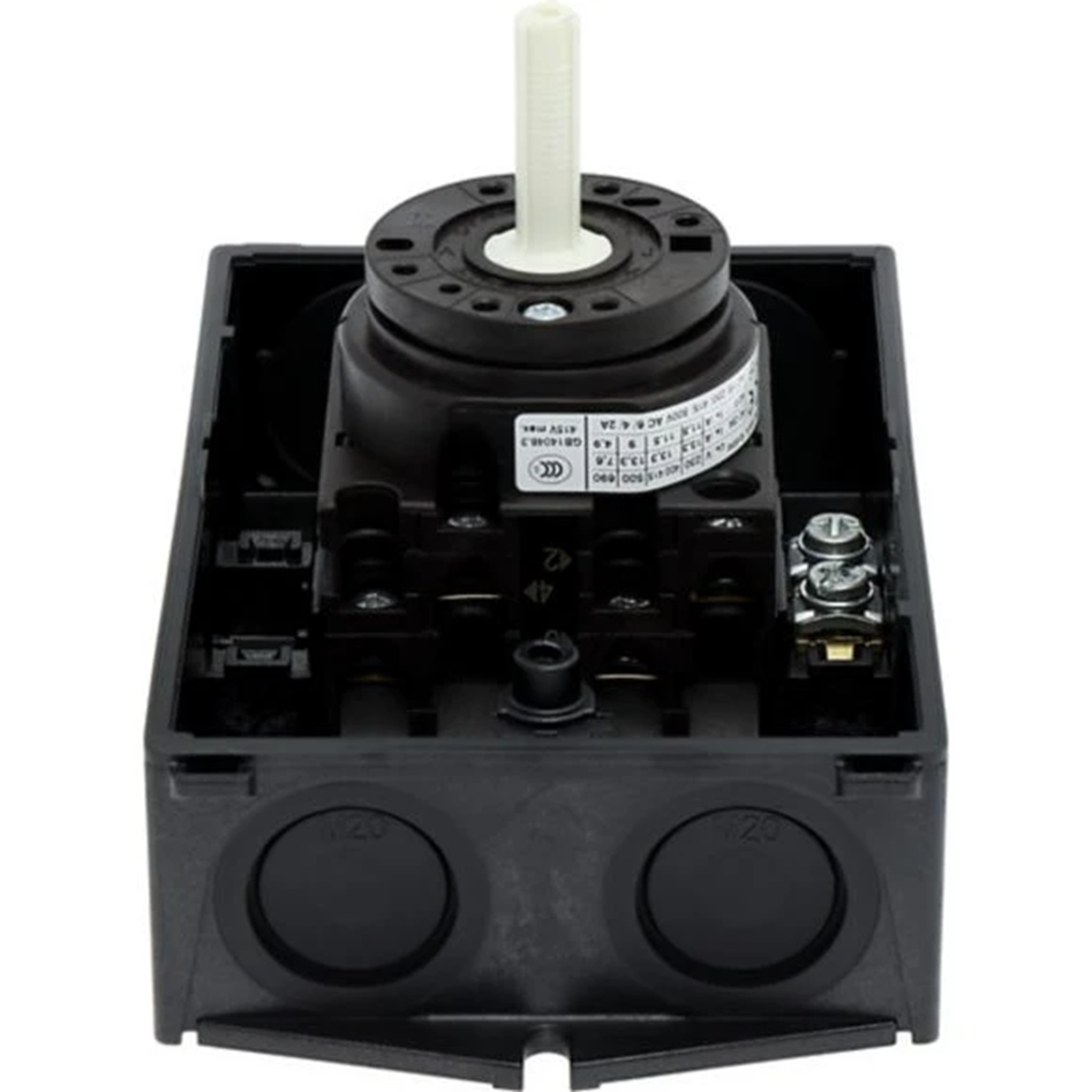

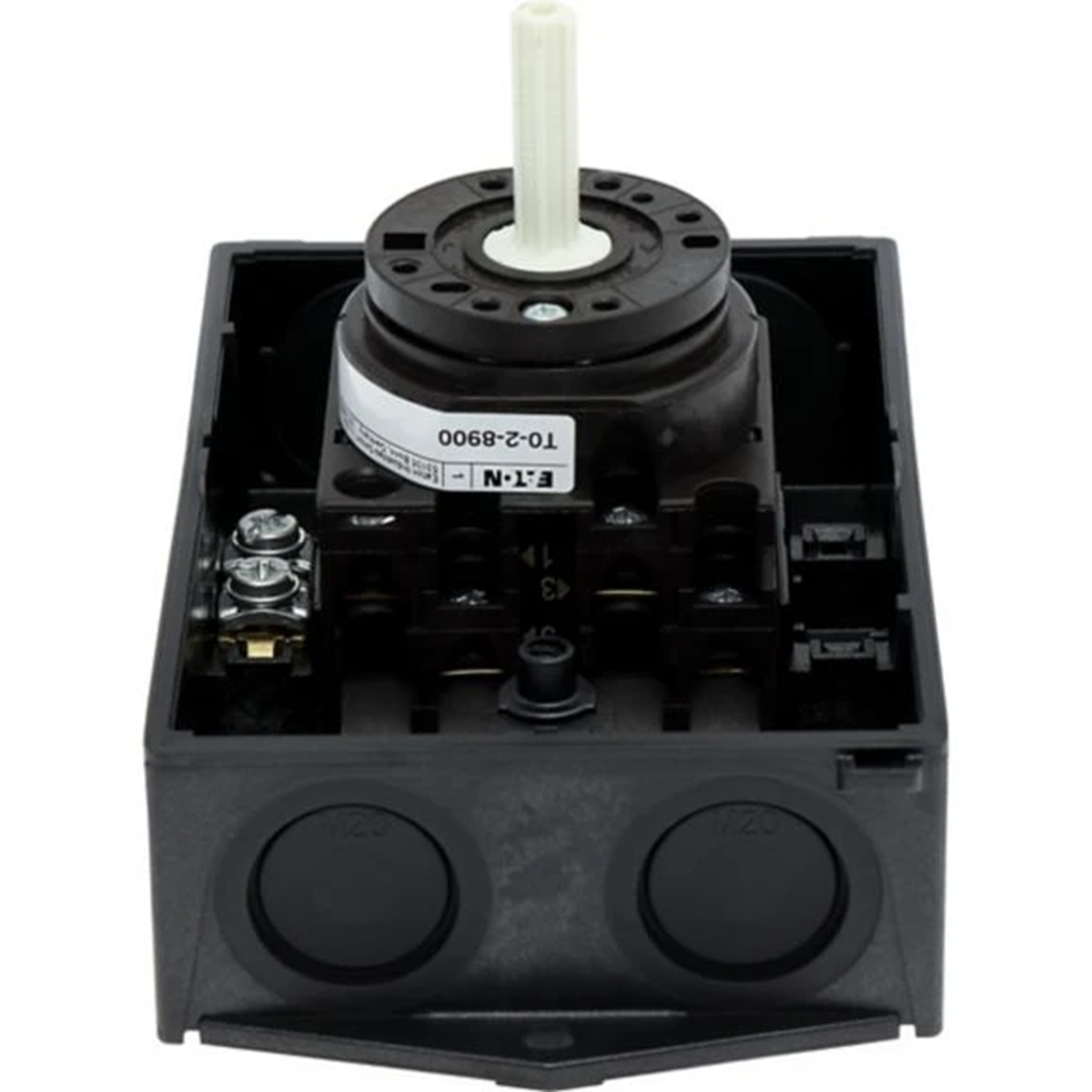

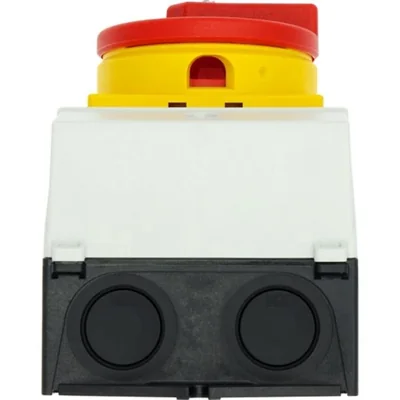

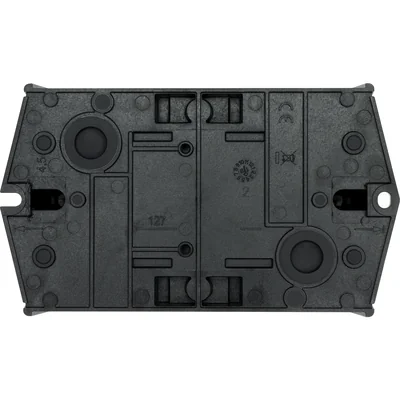

Cam switch, 20A, 6.5kW, T0-2-15679/I1/SVB 207149

local index:
ALK204MOEL
Catalog No:
207149
EAN code:
4015082071493
Manufacturer: EATON
Power [kW]: 6.5
Main circuits: 3z
Auxiliary circuits: 1Z
Price:
53,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cam switch In=20A P=6.5 kW

Technical data

  • Power [kW]
    6.5
  • Auxiliary circuits
    1Z
  • Main circuits
    3z
  • Rated current [A]
    20

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    20 A
  • Rated permanent current at AC-21, 400 V
    20 A
  • Rated short-time withstand current lcw
    0.32 kA
  • Switching power at 400 V
    5.5 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    1
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Door coupling rotary drive
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    12
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Number of switches
    1
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-23, 400 V
    13.3 A
  • Rated operation power at AC-3, 400 V
    5.5 kW
  • Rated operation power at AC-23, 400 V
    5.5 kW
  • Conditioned rated short-circuit current Iq
    6 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Complete device in housing
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    No
  • Colour control element
    Red
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP65

Manufacturer details

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,364 0,395
Volume (m3) 0,001 0,001
Width (m) 0,080 0,088
Length (m) 0,137 0,142
Depth (m) 0,110 0,116
