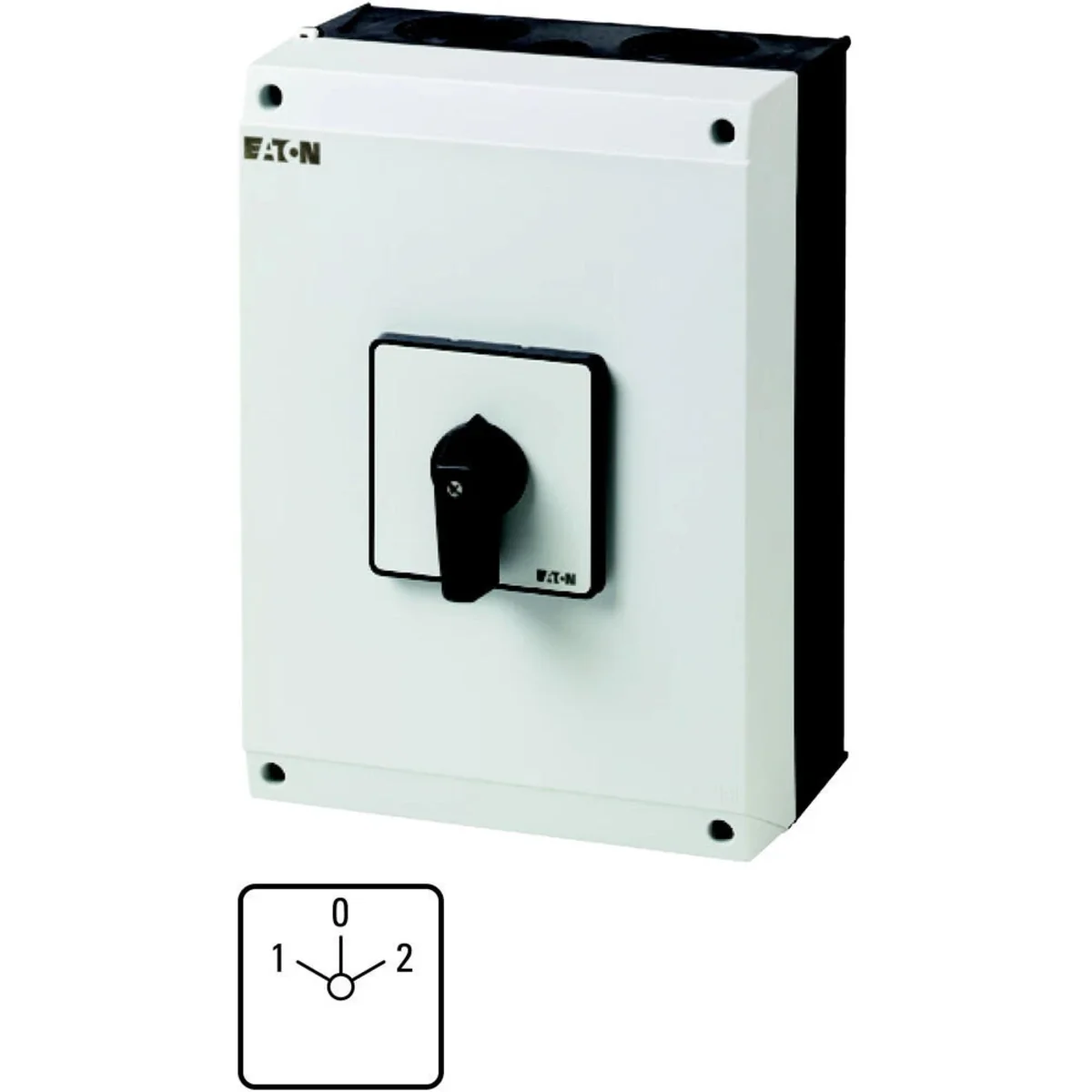

Cam switch, 100A, 30kW, T5-3-8212/I5 207266

local index:
ALI164MOEL
Catalog No:
207266
EAN code:
4015082072667
Manufacturer: EATON
Power [kW]: thirty
Rated current [A]: 100
Price:
374,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cam switch In=100A P=30kW

Technical data

  • Power [kW]
    thirty
  • Rated current [A]
    100

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    100 A
  • Rated operation power at AC-3, 400 V
    30 kW
  • Degree of protection (NEMA), front side
    12
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    Yes
  • Type of control element
    Short thumb-grip
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    55 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,948
Volume (m3) 0,013
Width (m) 0,205
Length (m) 0,290
Depth (m) 0,220
