Beam protection switch, DC, 2b, 30A 120939

Name: Beam protection switch, DC, 2b, 30A
Brand: EATON
SKU: ALI339MOEL
Price: 571.93 PLN
Availability: BackOrder

Índice local:

ALI339MOEL

Número de catálogo:

120939

Código EAN:

4015081187690

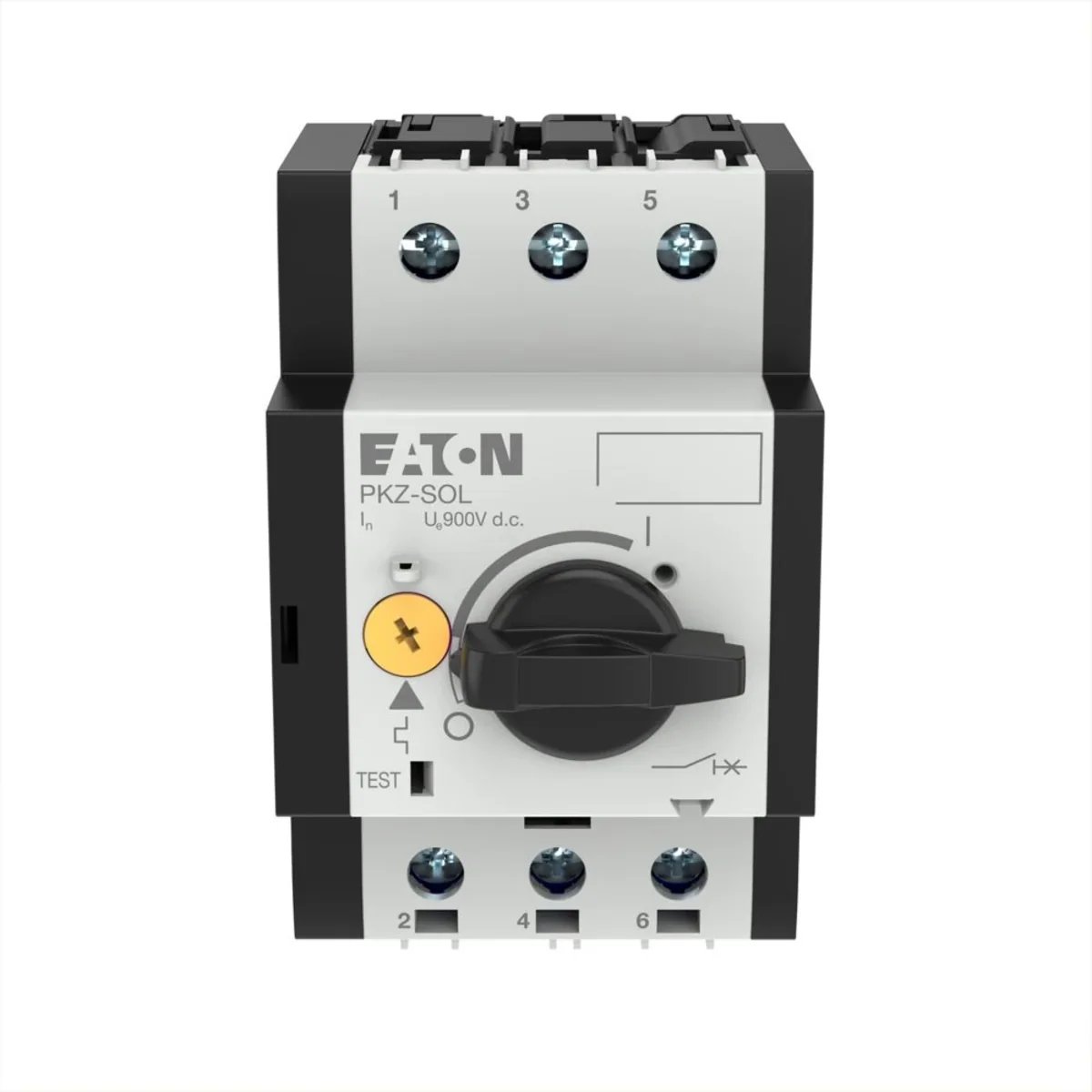

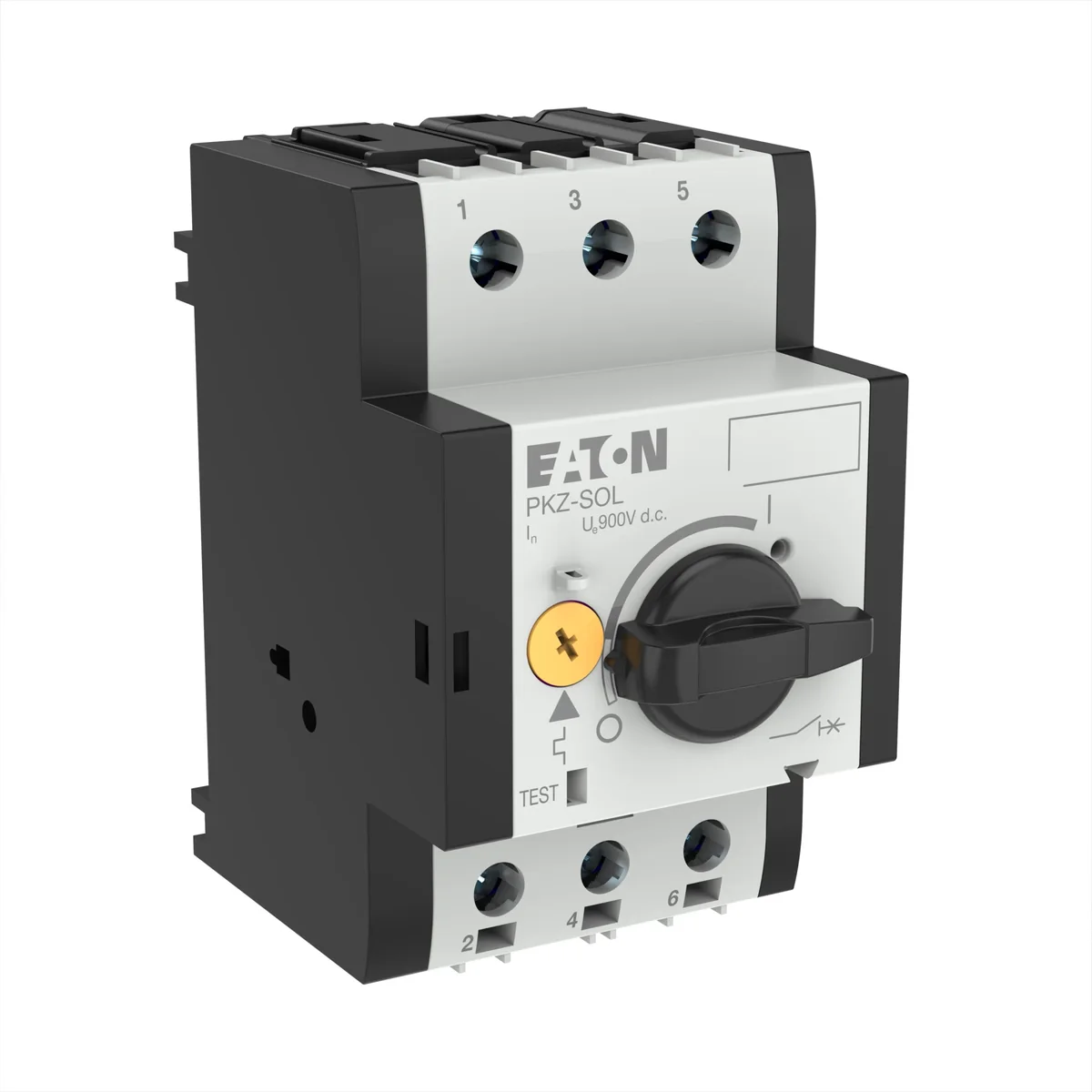

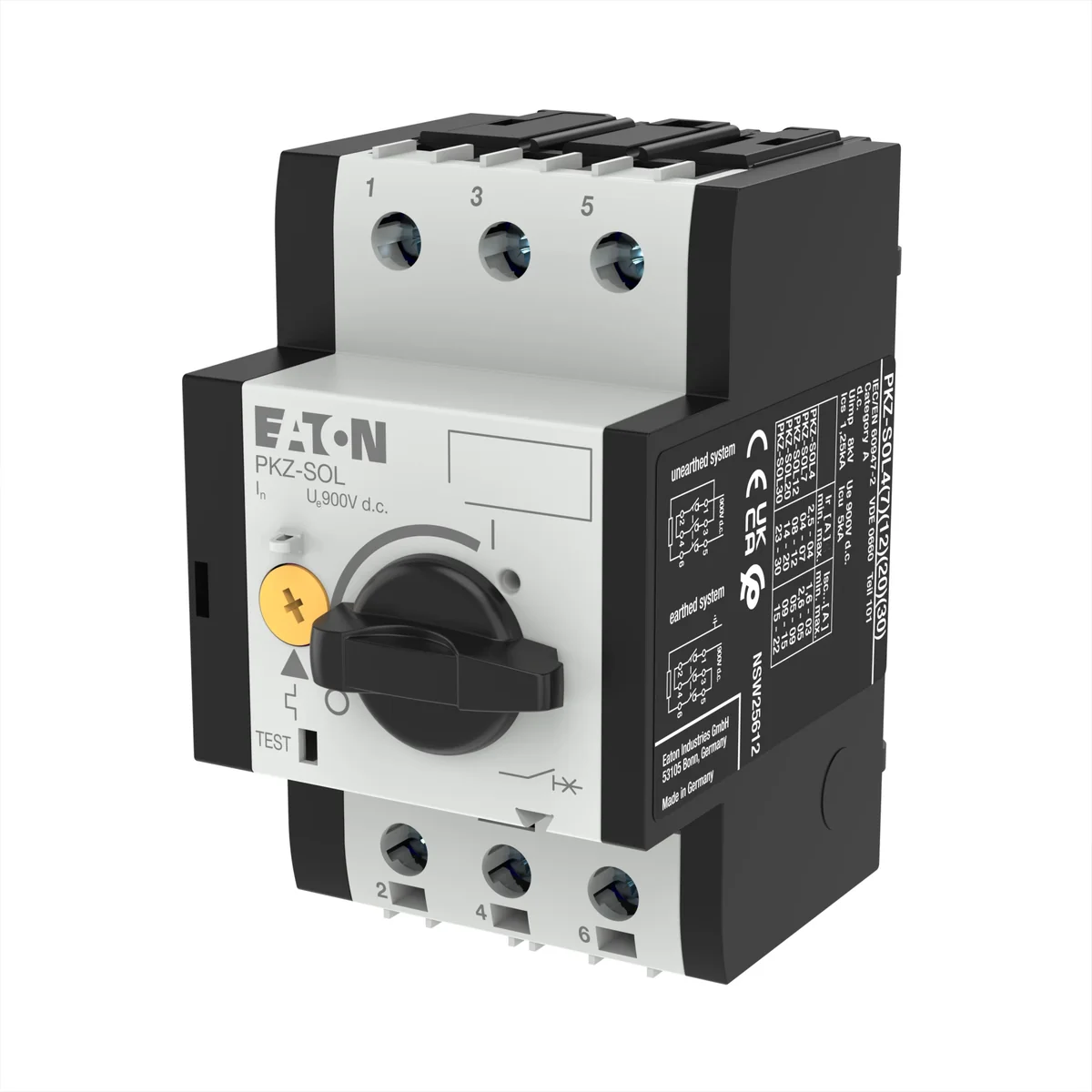

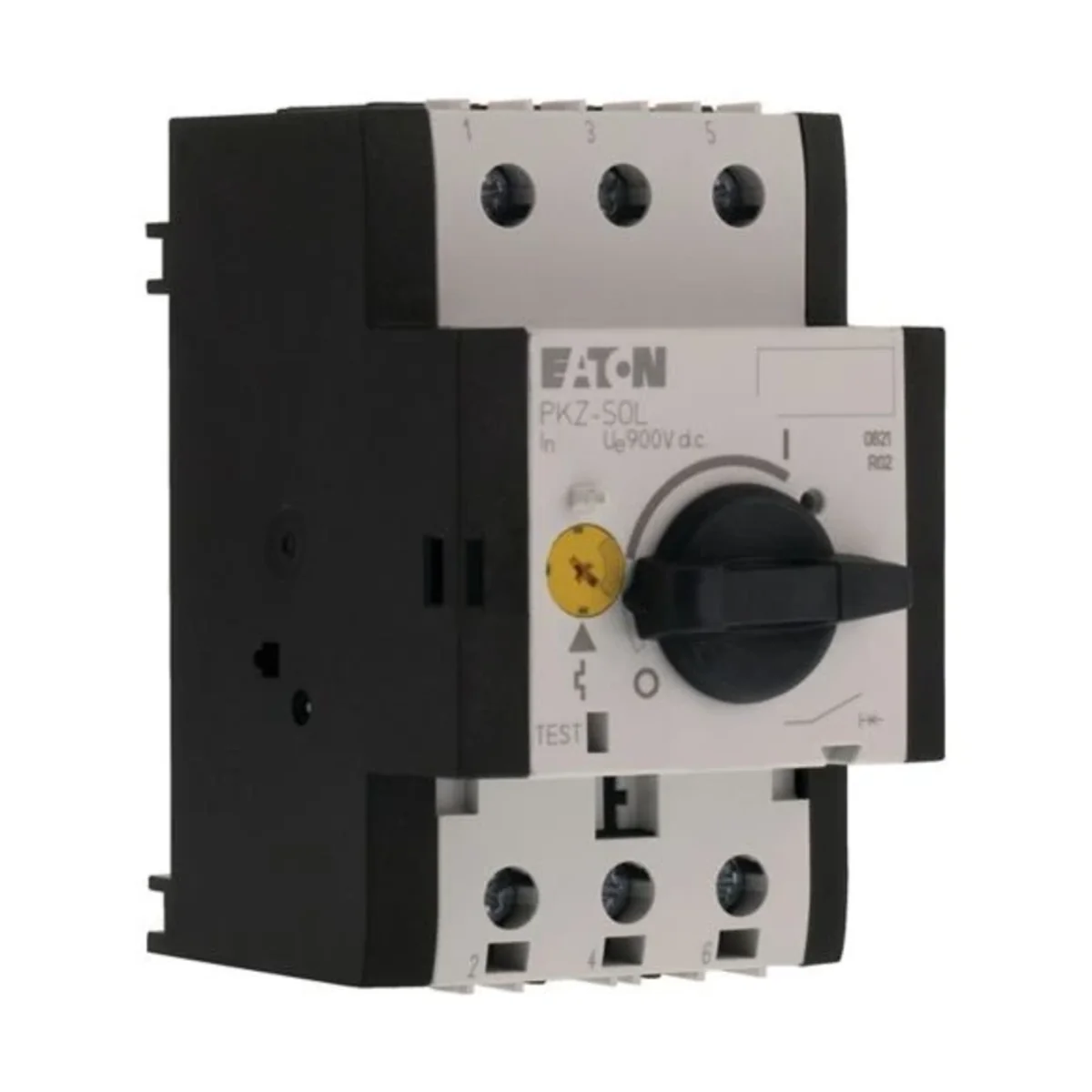

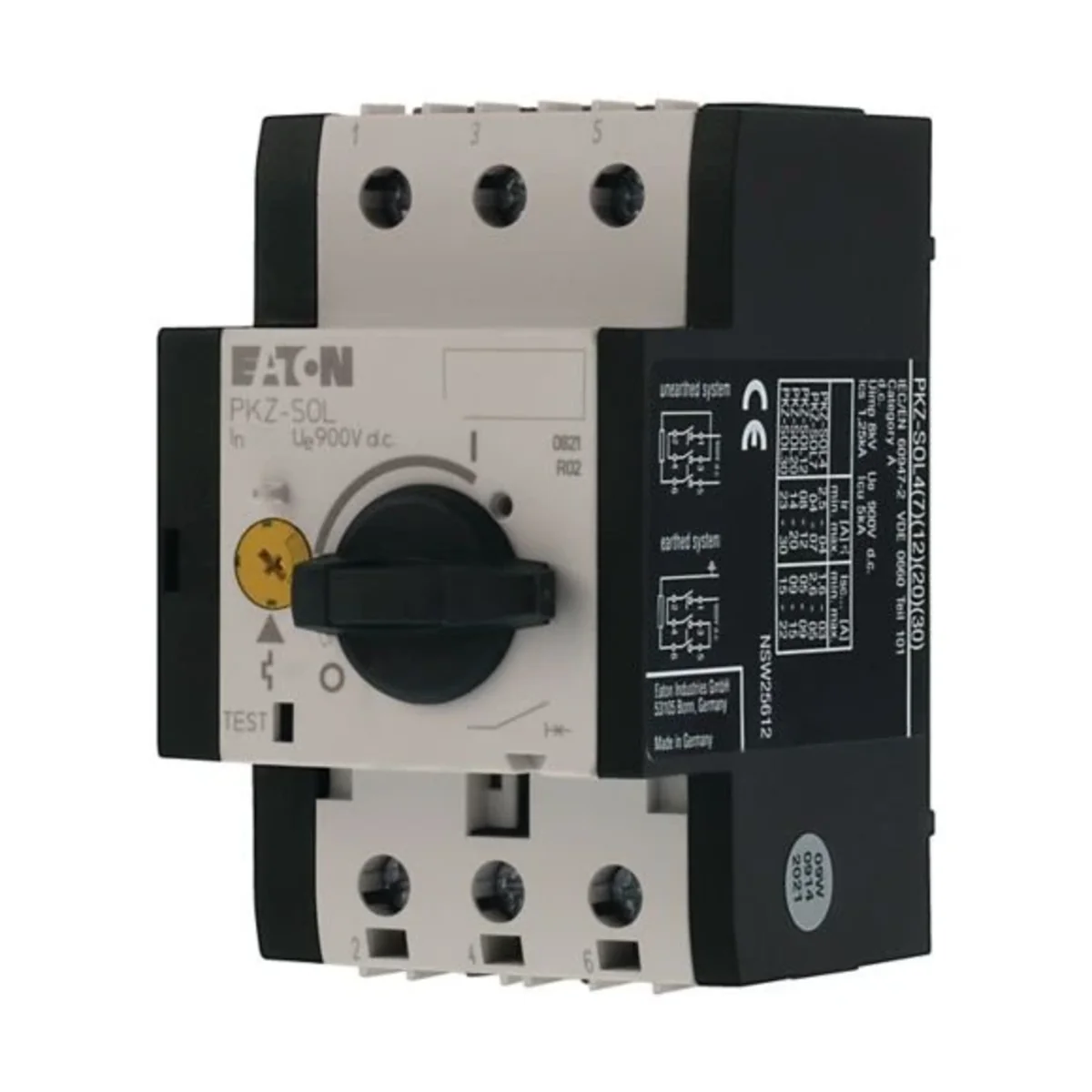

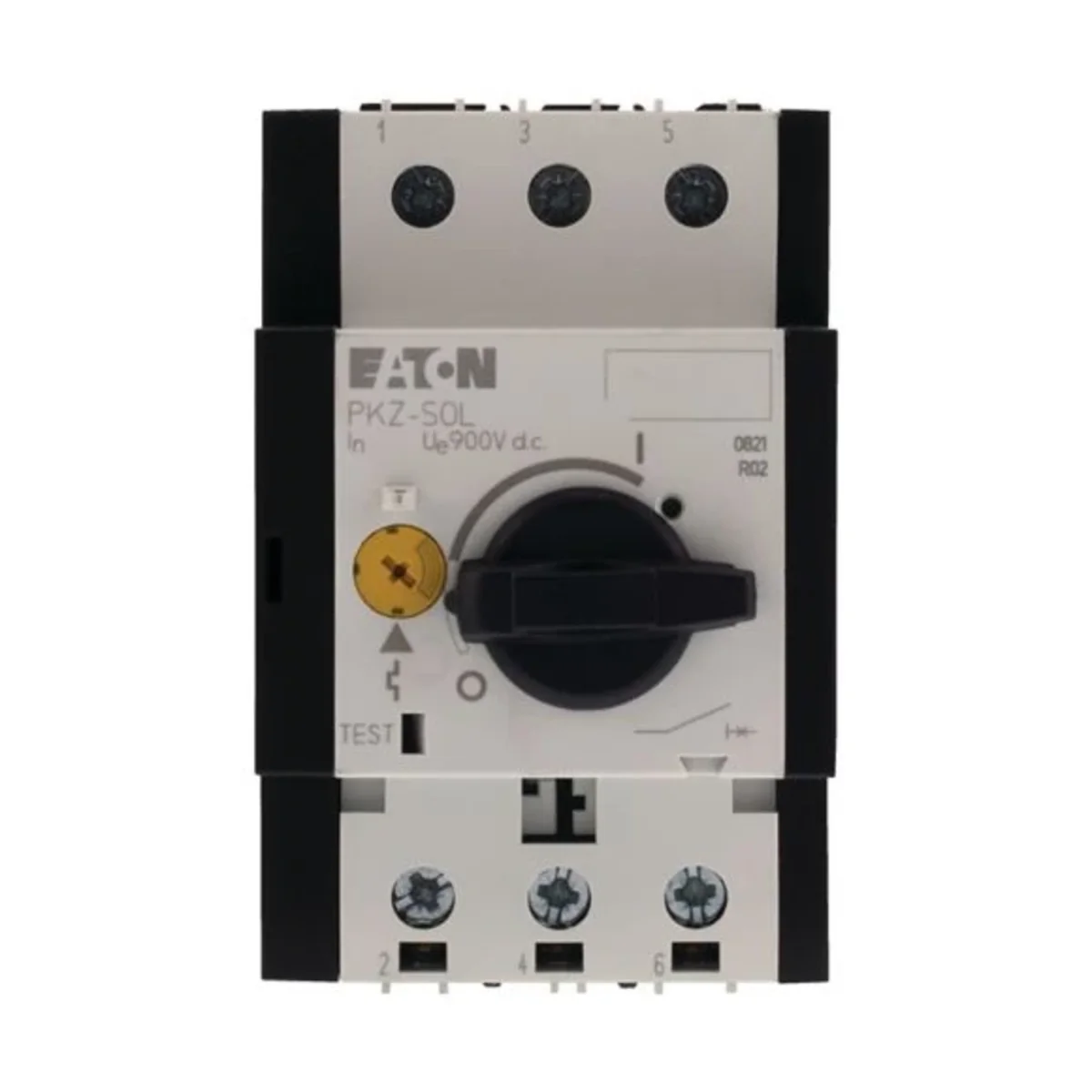

Haga clic en la foto para ampliar

Fabricante: EATON

Number of poles: 2

Operating voltage [V]: 900

Rated current [A]: thirty

Ver descripción completa

Precio:

571,93 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

PKZ-SOL beam protection circuit breakers are a fuse-free alternative for protecting PV modules against short-circuit currents. Thanks to their variable release range, they can be optimally adjusted to the actual short-circuit current. The optional delay undervoltage release P-SOL-XUV allows remote disconnection, e.g. by the fire brigade

Datos técnicos

Number of poles

2
Rated current [A]

thirty

Operating voltage [V]

900

Otros datos técnicos

Rated permanent current Iu

30 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

0 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional

Yes
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

3
Type of control element

Turn button
Motor drive integrated

No
Degree of protection (IP)

IP00

Rated voltage

900 ... 900 V
Overload release current setting

23 ... 30 A
Adjustment range undelayed short-circuit release

180 ... 180 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

Yes
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Other
Complete device with protection unit

Yes
Motor drive optional

No

Detalles del fabricante

Fabricante

Eaton Electric Sp. z o.o.
Dirección

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete	Skrzynia
Cantidad	1 uds.
Peso (kg)	0,328
Volumen (m3)	0,000
Ancho (m)	0,064
Longitud (m)	0,093
Profundidad (m)	0,082
