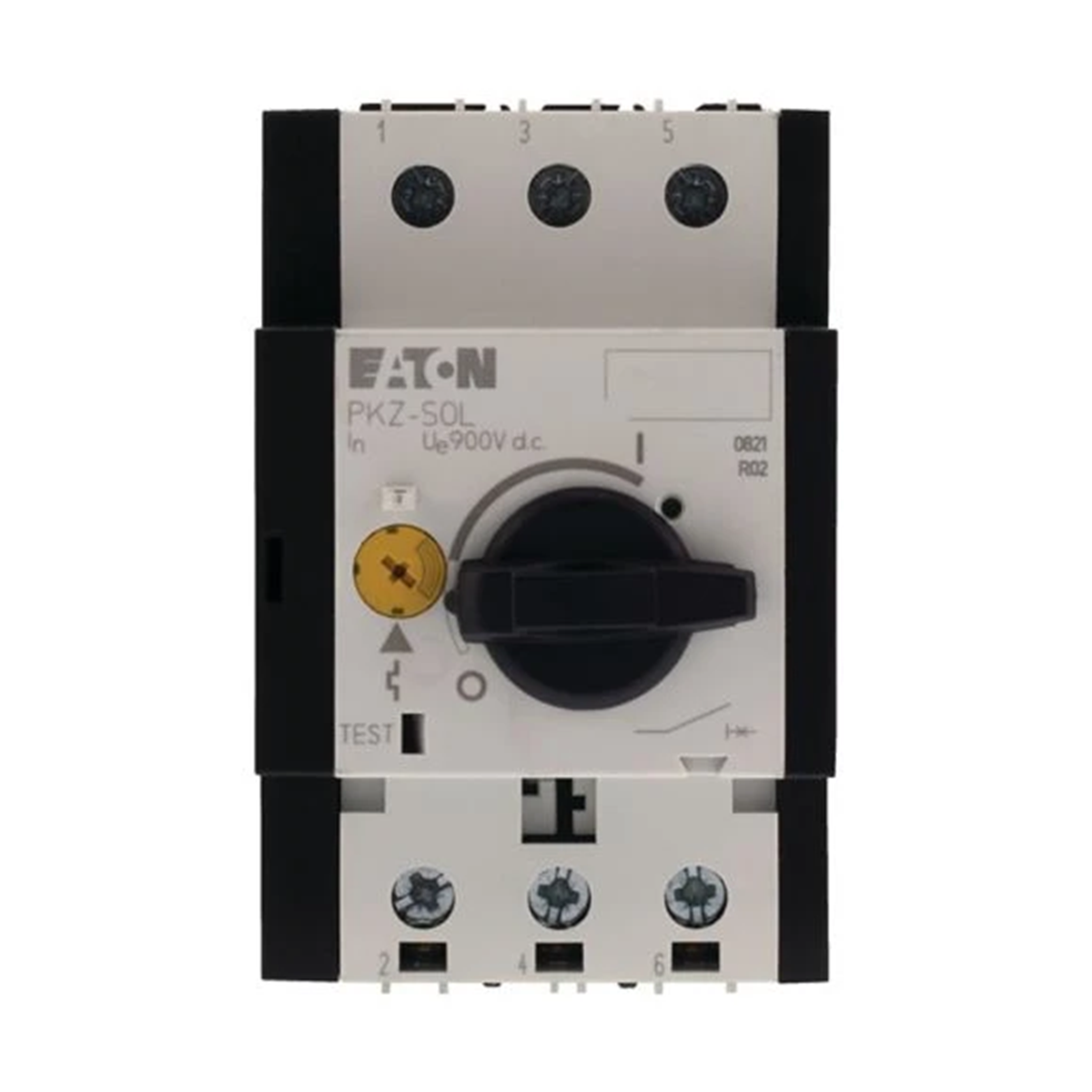

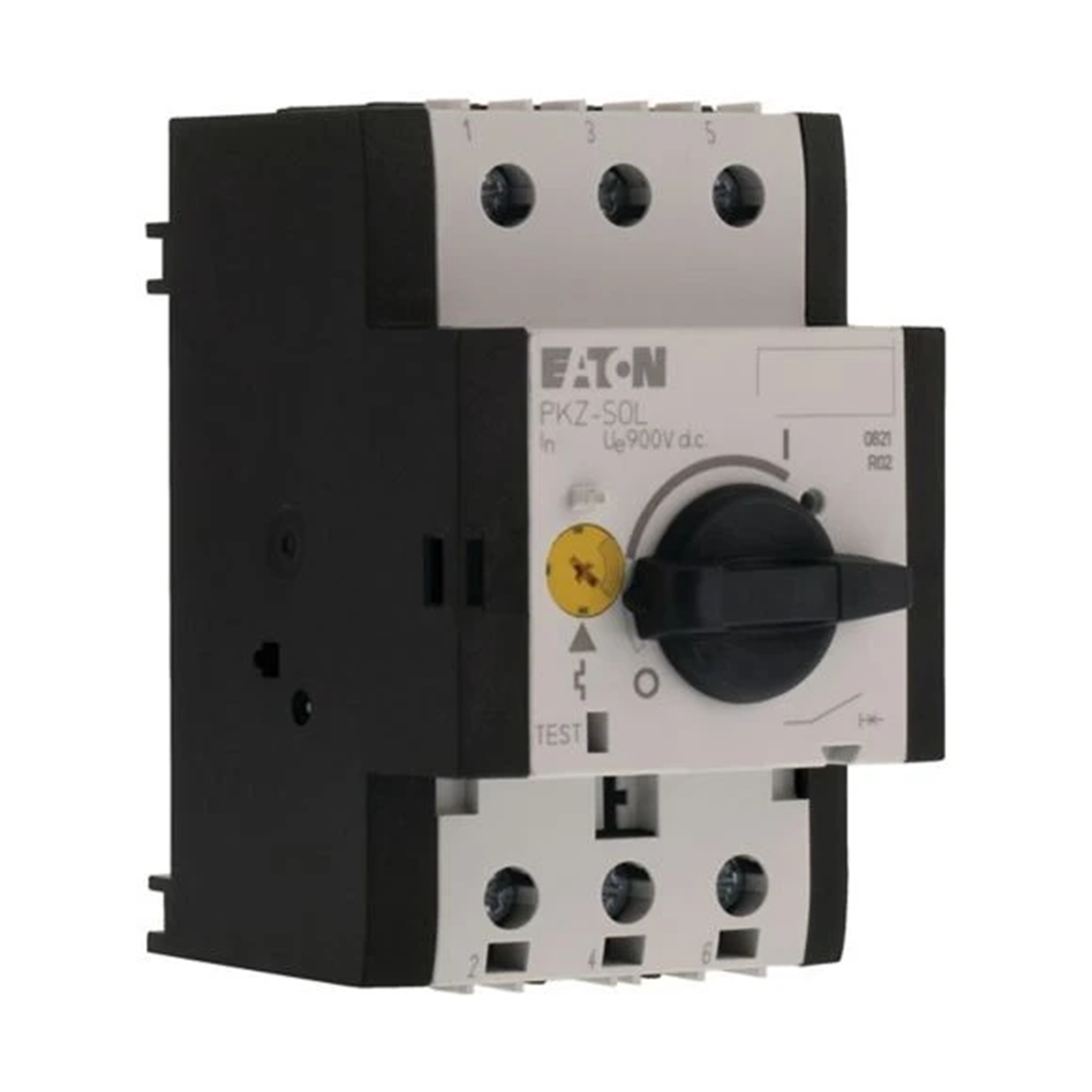

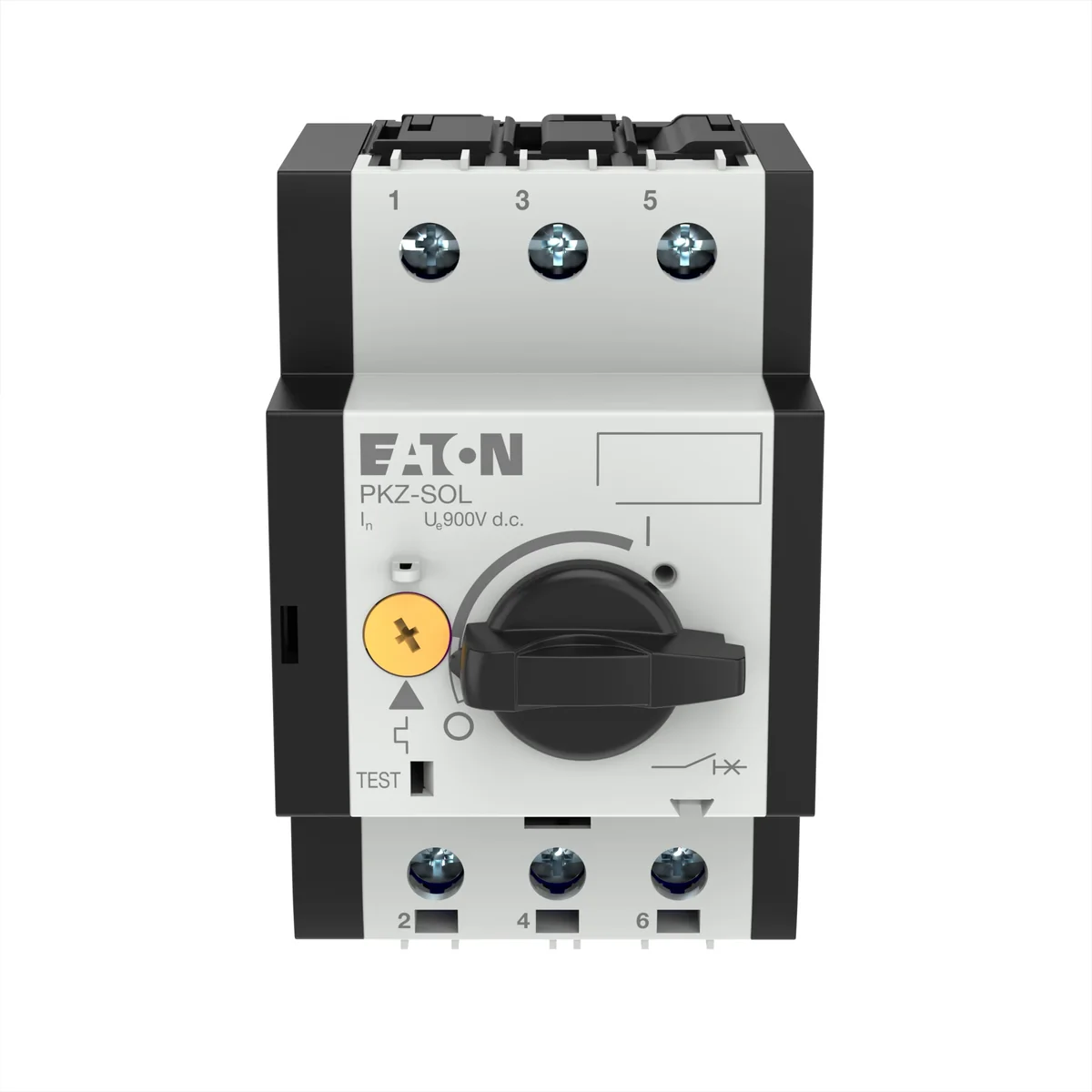

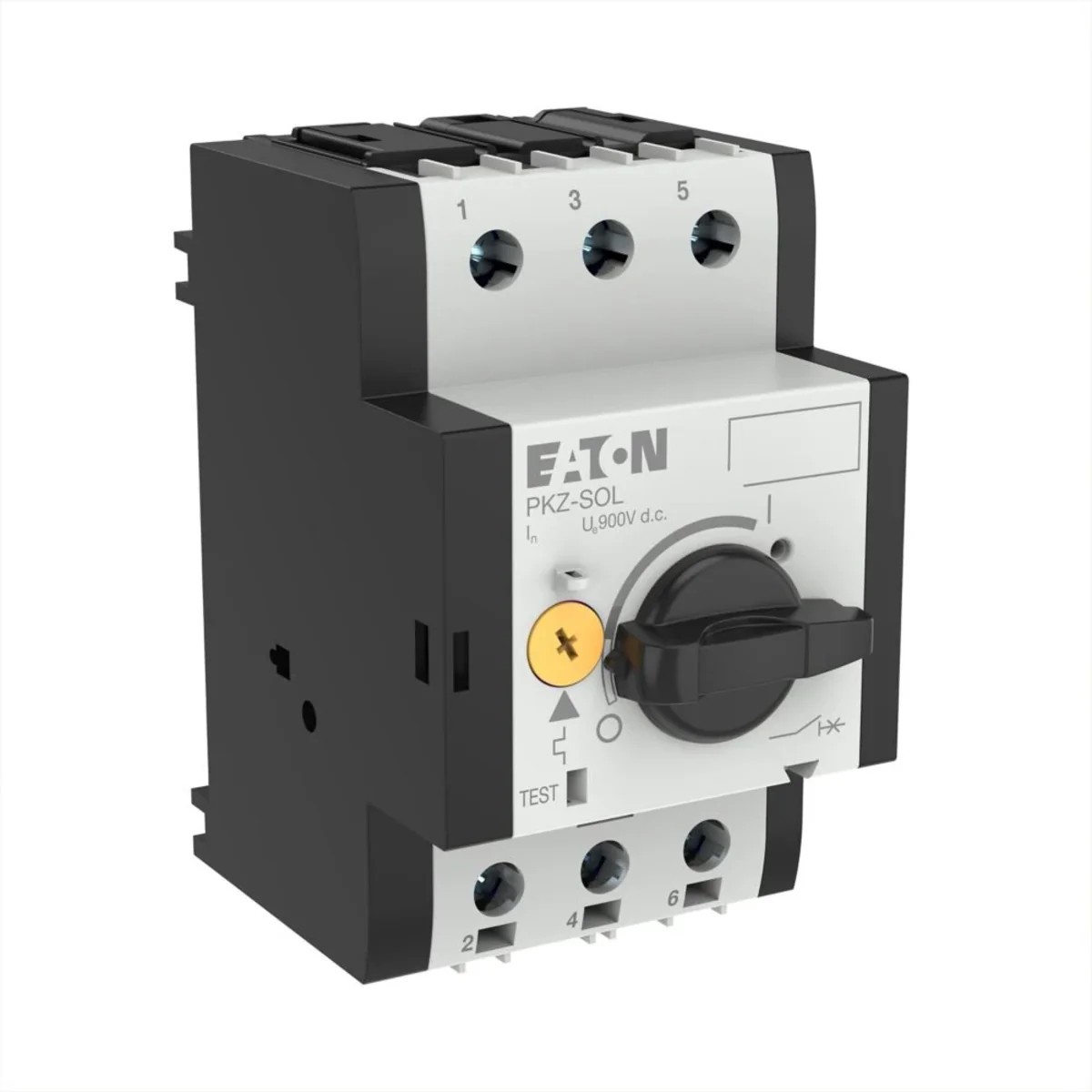

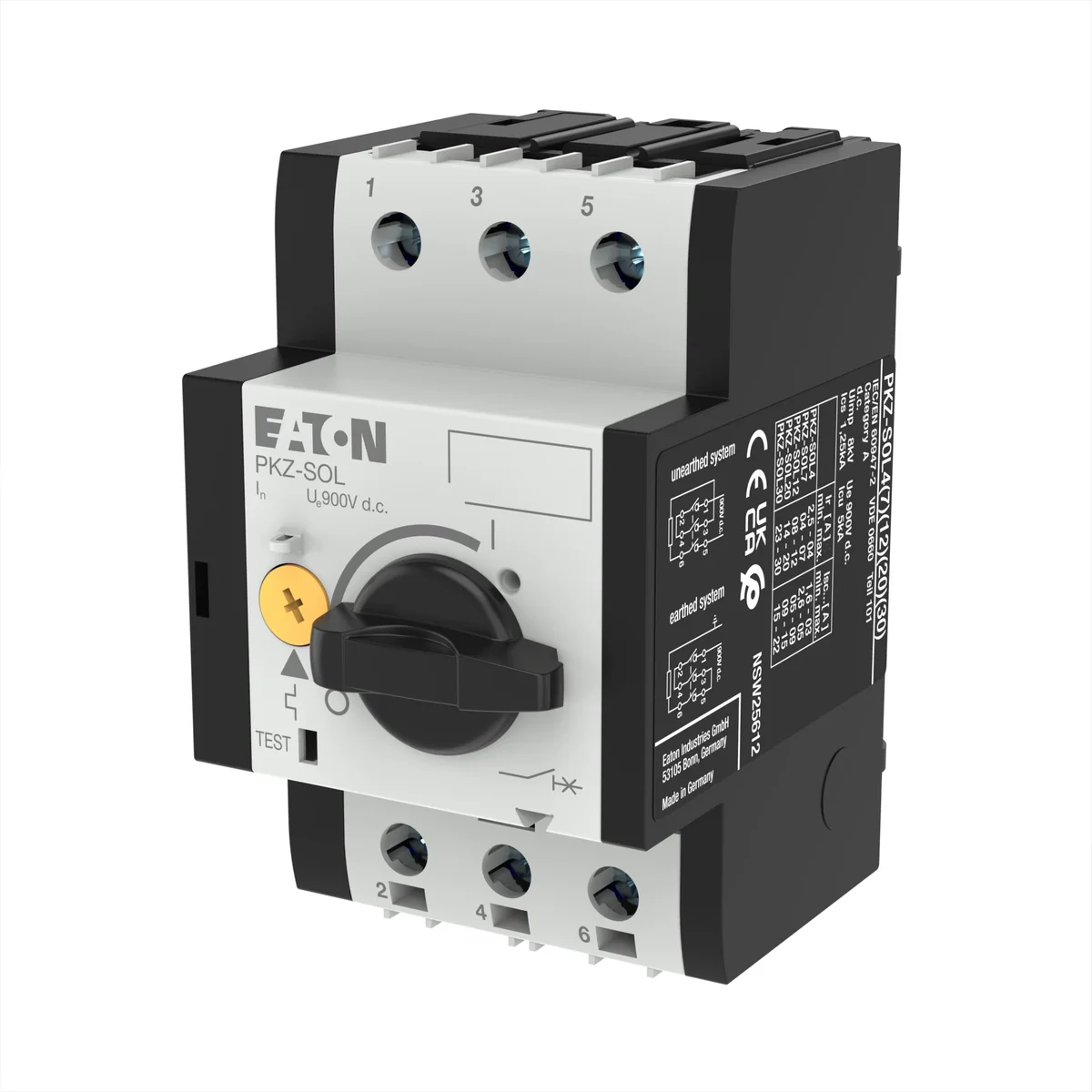

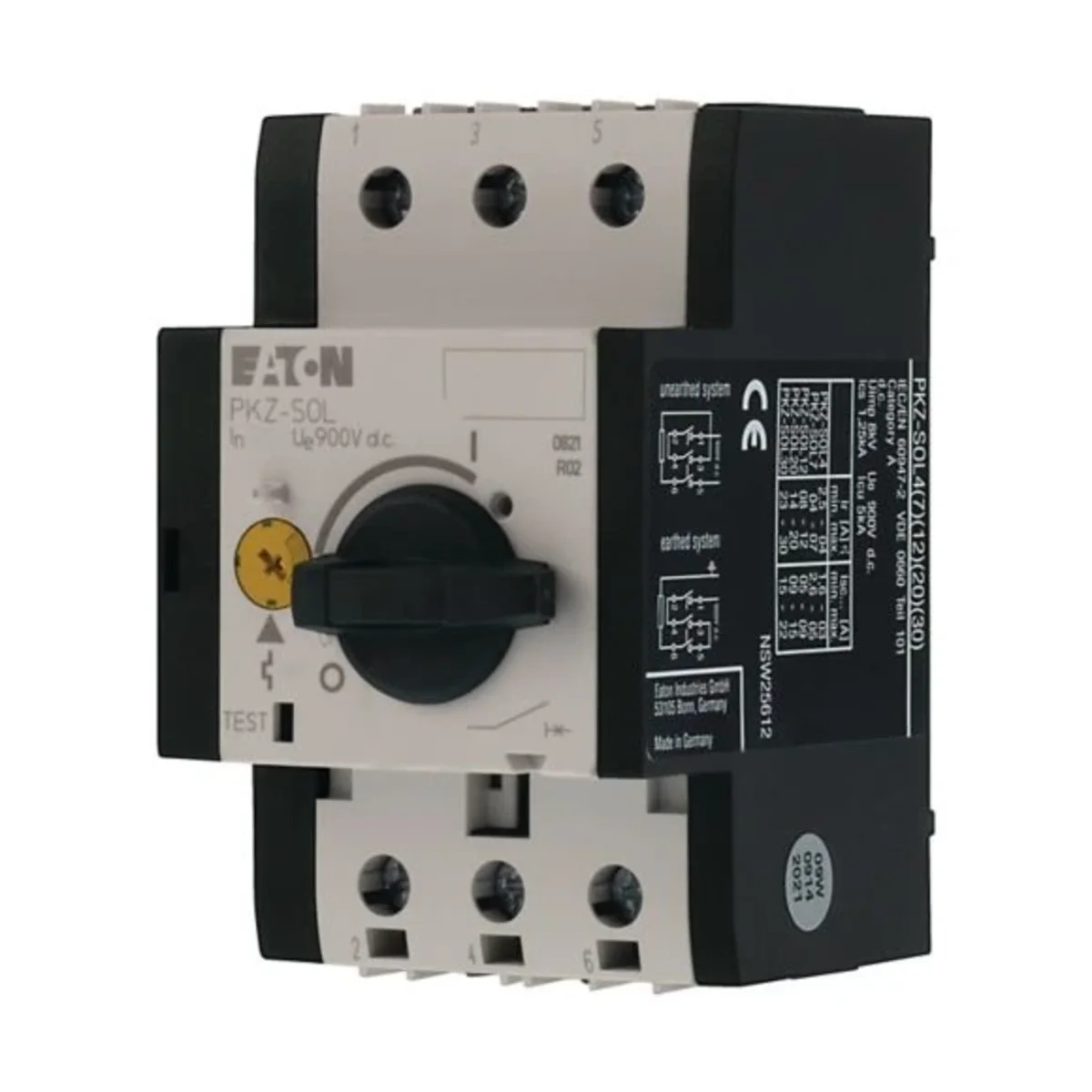

Beam protection switch, DC, 2b, 20A 120938

local index:
ALI338MOEL
Catalog No:
120938
EAN code:
4015081187683
Manufacturer: EATON
Number of poles: 2
Operating voltage [V]: 900
Rated current [A]: 20
Price:
117,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

PKZ-SOL beam protection circuit breakers are a fuse-free alternative for protecting PV modules against short-circuit currents. Thanks to their variable release range, they can be optimally adjusted to the actual short-circuit current. The optional delay undervoltage release P-SOL-XUV allows remote disconnection, e.g. by the fire brigade

Technical data

  • Number of poles
    2
  • Rated current [A]
    20
  • Operating voltage [V]
    900

Other technical data

  • Rated permanent current Iu
    20 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    0 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    Yes
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Number of poles
    2
  • Type of control element
    Turn button
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP00
  • Rated voltage
    900 ... 900 V
  • Overload release current setting
    14 ... 20 A
  • Adjustment range undelayed short-circuit release
    120 ... 120 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    Yes
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • With integrated under voltage release
    No
  • Position of connection for main current circuit
    Other
  • Complete device with protection unit
    Yes
  • Motor drive optional
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,324
Volume (m3) 0,000
Width (m) 0,064
Length (m) 0,093
Depth (m) 0,082
