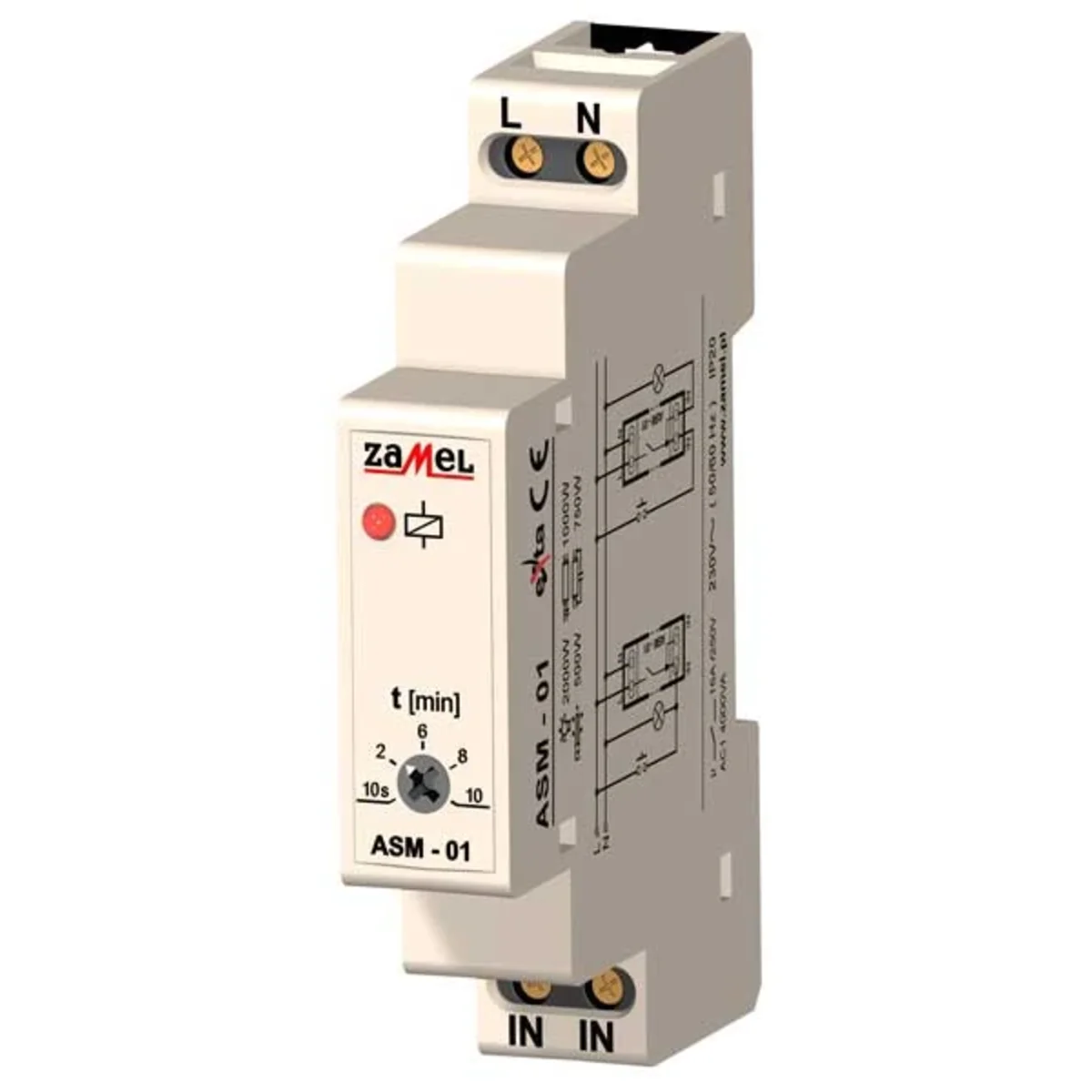

Automatic staircase switch 12-240V AC/DC type: ASM-01/U EXT10000005-WPL

The machine model is characterized by a repetitive work cycle. The device performs the function of switching on with a current pulse. It is completely electronic.
It is designed to be placed on a DIN rail.
The connection system here is three- and four-wire. The maximum switching current of the article with a cosine equal to 0.6 is 10 A.
The device works properly with constant and alternating control voltage, the value of which at the frequency of 50 Hz ranges from 12 V to 240 V.
Maximum switching capacity for of bulbs is 2000 W.
The switching capacity for induction fluorescent lamps is 500 VA, for fluorescent lamps with DUO compensation it is 1000 VA, and with parallel compensation it is 750 VA.
