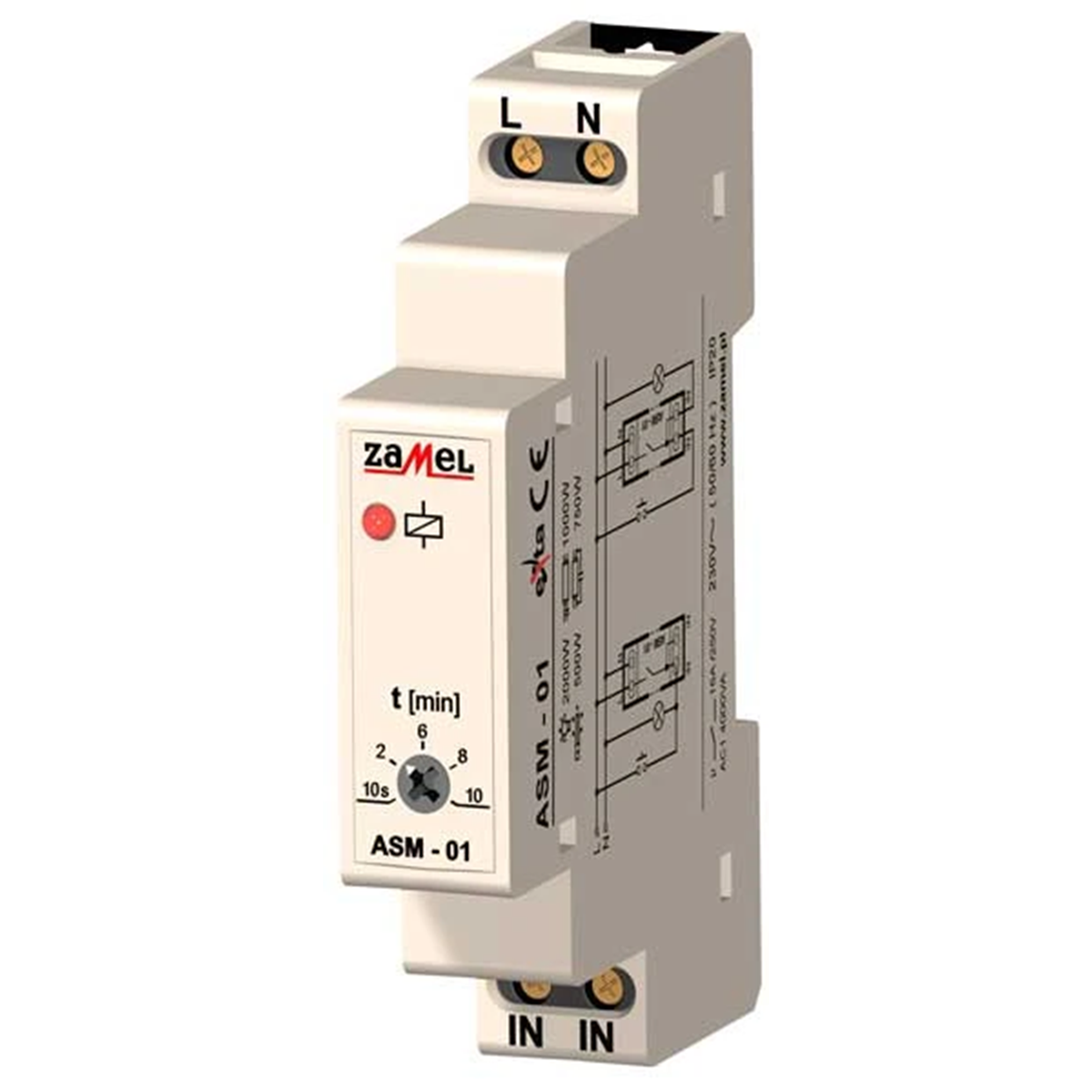

Automatic staircase switch 12-240V AC/DC type: ASM-01/U EXT10000005

local index:
APC018ZAME
Catalog No:
EXT10000005
EAN code:
5903669016953
Manufacturer: ZAMEL
Depth [mm]: 56
Maximum switching capacity for bulbs [W]: 2000
Installation: On the TH-35 rail
Price:
29,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The machine model is characterized by a repetitive work cycle. The device performs the function of switching on with a current pulse. It is completely electronic.
It is designed to be placed on a DIN rail.
The connection system here is three- and four-wire. The maximum switching current of the article with a cosine equal to 0.6 is 10 A.
The device works properly with constant and alternating control voltage, the value of which at the frequency of 50 Hz ranges from 12 V to 240 V.
Maximum switching capacity for of bulbs is 2000 W.
The switching capacity for induction fluorescent lamps is 500 VA, for fluorescent lamps with DUO compensation it is 1000 VA, and with parallel compensation it is 750 VA.

Technical data

  • Depth [mm]
    56
  • Installation
    On the TH-35 rail
  • Family
    EXTA
  • Width [mm]
    26
  • Height [mm]
    69
  • Maximum switching capacity for bulbs [W]
    2000
  • Rated current [A]
    16
  • Level of security
    IP20
  • Type
    Automata
  • PKWIU
    27.12.40.0
