Adapter for circuit breakers NZM 160A UL508, NZM1-XAD160 104554

Name: Adapter for circuit breakers NZM 160A UL508, NZM1-XAD160
Brand: EATON
SKU: ALA148MOEL
Price: 119.30 PLN

local index:

ALA148MOEL

Catalog No:

104554

EAN code:

4015081043729

Adapter for circuit breakers NZM 160A UL508, NZM1-XAD160

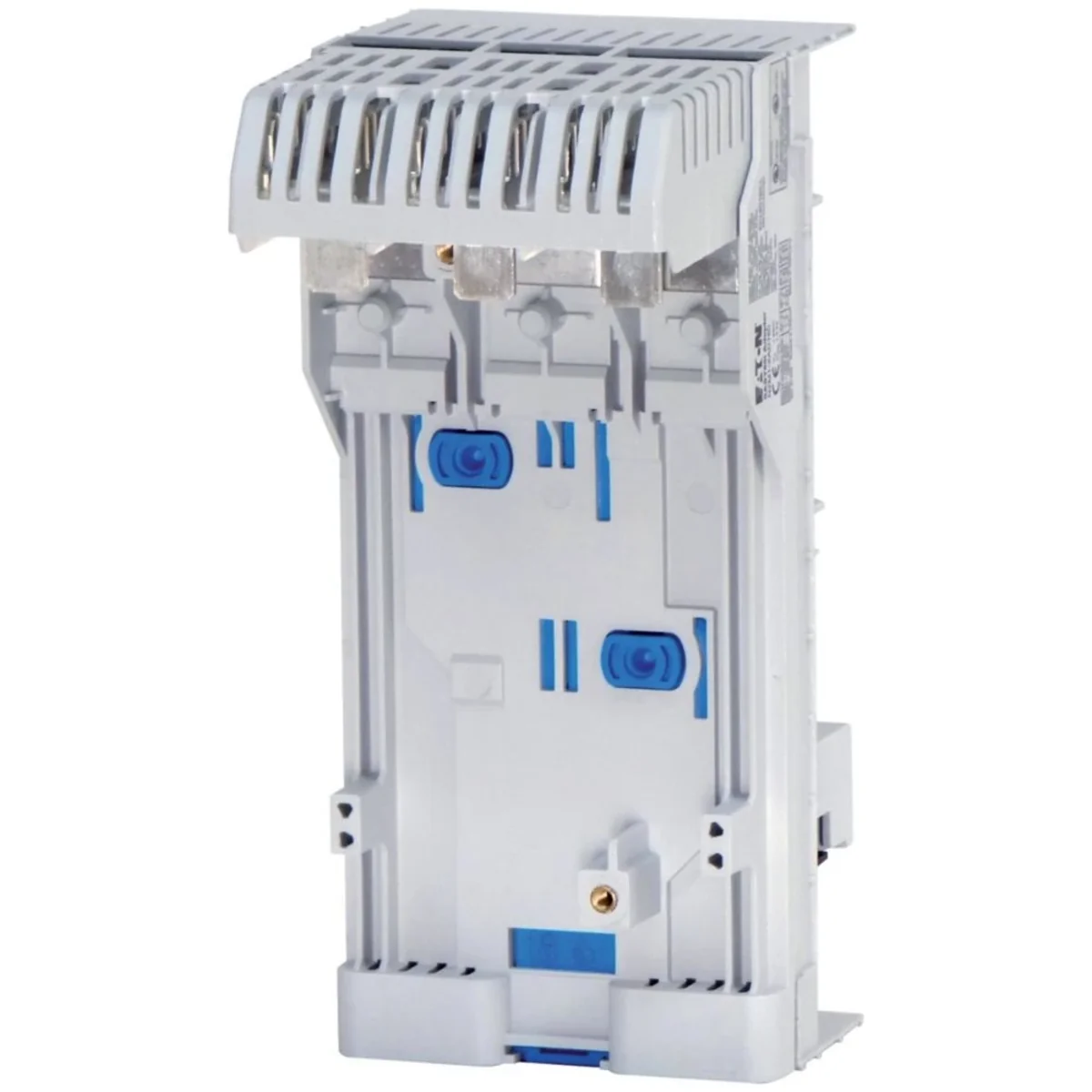

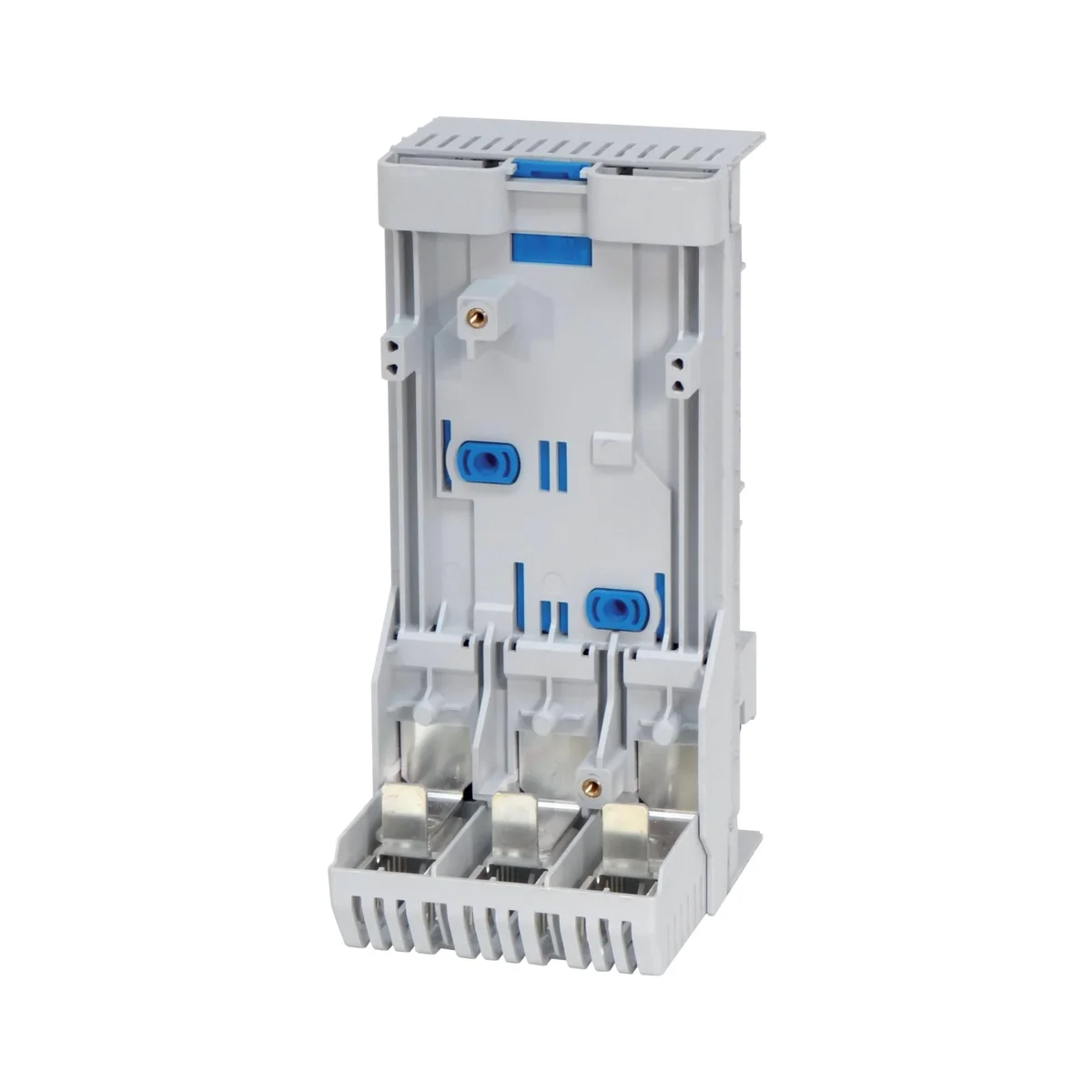

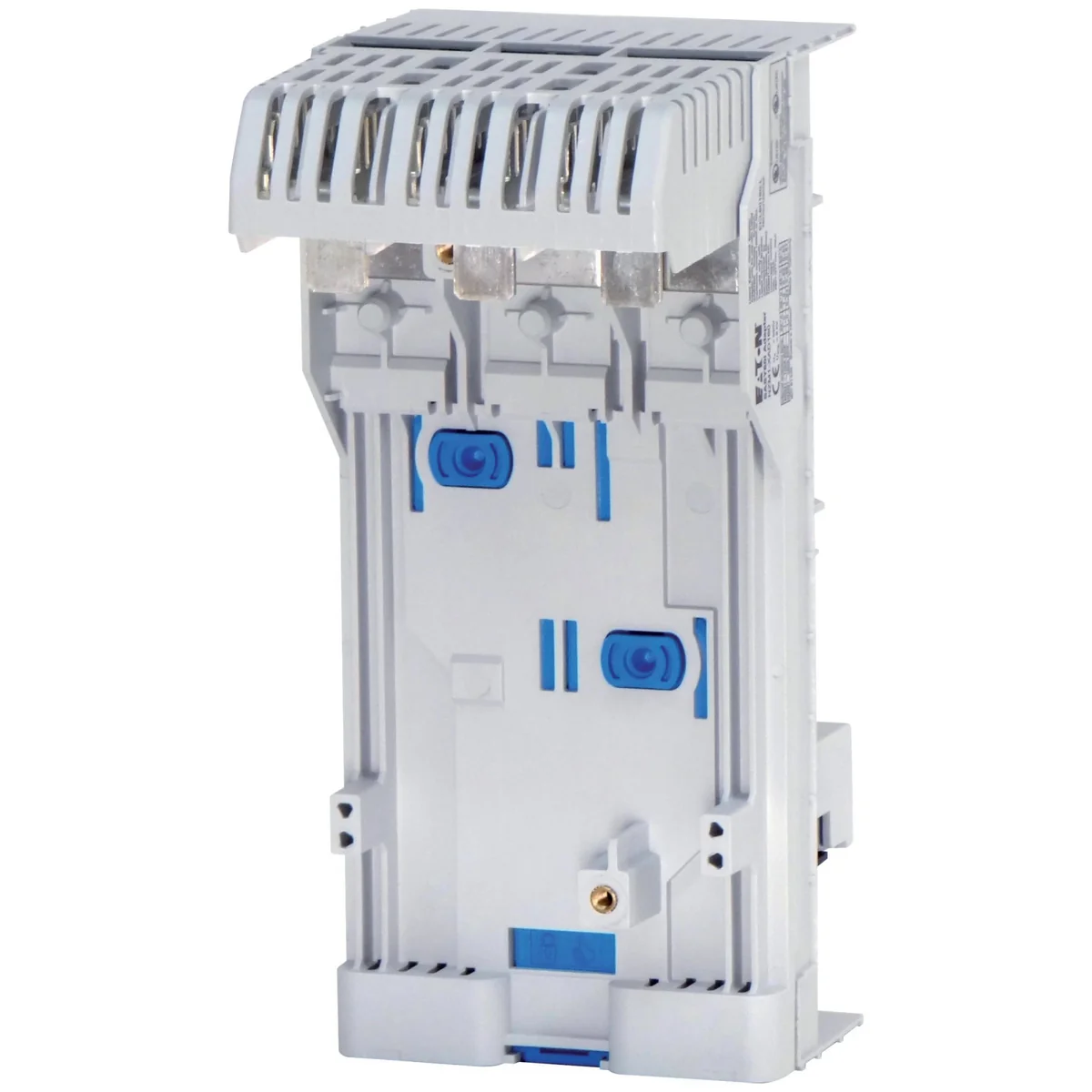

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

Rated current [A]: 180

Adapter width [mm]: 90

See full description

Price:

119,30 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

For mounting on copper flat bars, 12–30 x 5–10 mm, double T and triple T
Rated operating voltage Ue: 690 V
• Temperature resistance up to 120°C
• Self-extinguishing according to UL 94 V0
• Leakage current resistance CTI 200

Technical data

Number of poles

3
Adapter width [mm]

90

Rated current [A]

180

Other technical data

Mounting rail armament

None
Rated current In

160 A
Max. busbar thickness

10 mm
Rail width

30 mm

Type of electric connection

Other
Min. busbar thickness

5 mm
Width of the adapter

92 mm
Busbar distance

60 mm

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,810	0,748
Volume (m3)	0,001	0,002
Width (m)	0,090	0,115
Length (m)	0,200	0,208
Depth (m)	0,038	0,100
