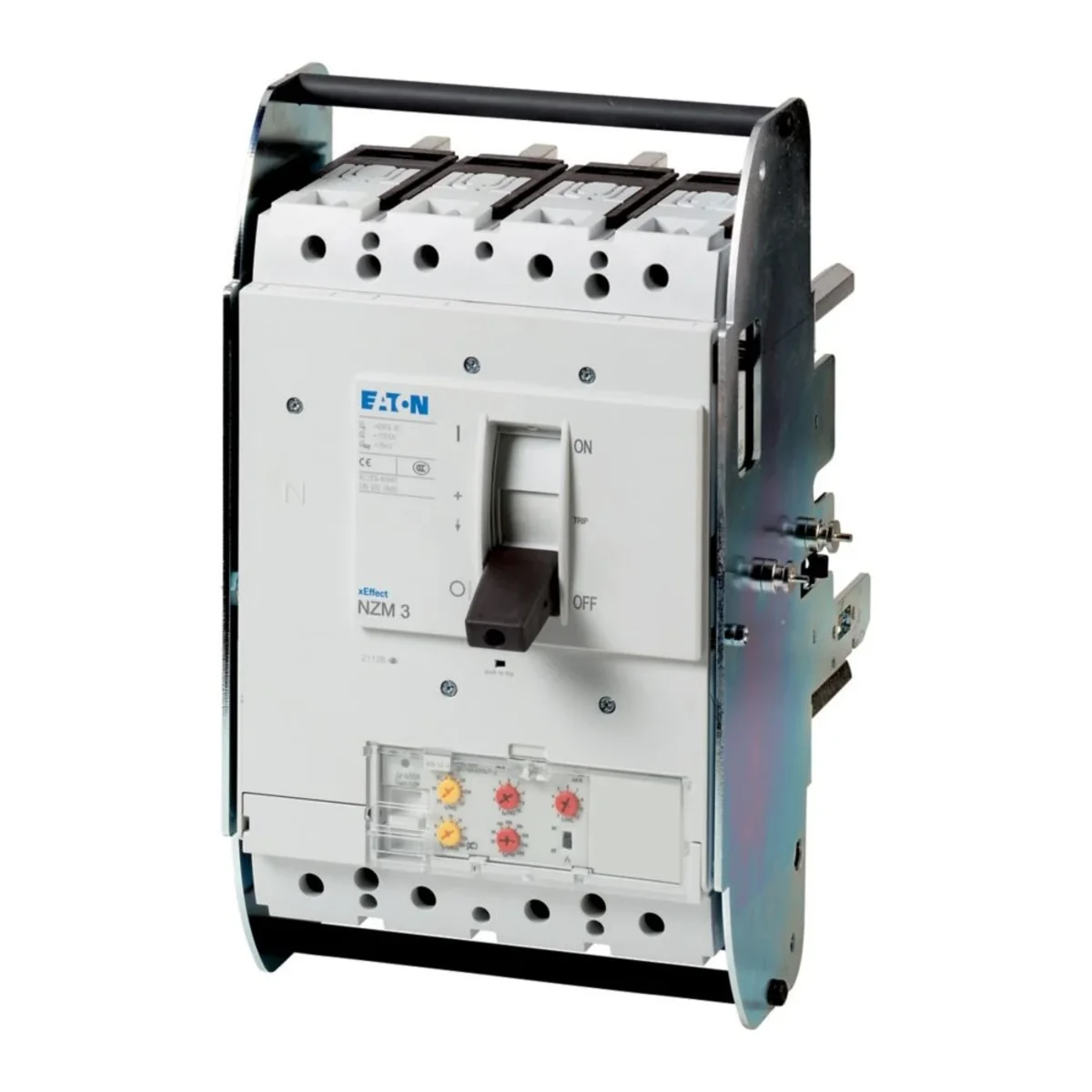

AC breaker, 4-pole, 400A, 150kA, installation, cable, selective and generator protection, plug-in 110880

Indice locale:
ALM097MOEL
Numero di catalogo:
110880
Codice EAN:
4015081104093
Produttore: EATON
Number of poles: 4
Installation: Eject technique
Rated current [A]: 400
Prezzo:
3386,74 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

The circuit breakers of the NZM..-VE series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic trip unit for plant and cable protection, selective and generator protection, time-delayed overload and time protection and non-delayed short-circuit protection. Tips: RMS and thermal memory measurement, adjustable time delay setting tr: 2-14 s at 6xIr and infinity (without overload release), adjustable delay time tsd: steps: 0, 20, 60, 100, 200, 300, 500, 750, 1000ms, i2t-constant function: switchable

Dati tecnici

  • Number of poles
    4
  • Rated current [A]
    400
  • Switching capacity [kA]
    150
  • Installation
    Eject technique
  • Series
    Installation, cable, selective and generator protection

Altri dati tecnici

  • Rated permanent current Iu
    400 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    150 kA
  • Adjustment range short-term delayed short-circuit release
    400 ... 4000 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device slide-in technique (withdrawable)
  • DIN rail (top hat rail) mounting optional
    No
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Number of poles
    4
  • Type of control element
    Rocker lever
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    200 ... 400 A
  • Adjustment range undelayed short-circuit release
    800 ... 4400 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • With integrated under voltage release
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes

Dettagli del produttore

  • Produttore
    EATON Electric Sp. z o.o.
  • Indirizzo
    80-299 Gdańsk ul. Galaktyczna 30
  • NIP
    5841022327

Imballaggio sfuso

Una specie di pacchetto Skrzynia
Quantità 1 pezzi 1 pezzi
Peso (kg) 22,400 22,400
Volume (m3) 0,021 0,021
Larghezza (m) 0,230 0,230
Lunghezza (m) 0,260 0,260
Profondità (m) 0,346 0,346
