AC breaker, 3-pole, 63A, 150kA, plug, short-circuit protection 113342

Name: AC breaker, 3-pole, 63A, 150kA, plug, short-circuit protection
Brand: EATON
SKU: ALI266MOEL
Price: 1709.17 PLN
Availability: BackOrder

Index local:

ALI266MOEL

Numéro de catalogue:

113342

Code EAN:

4015081128778

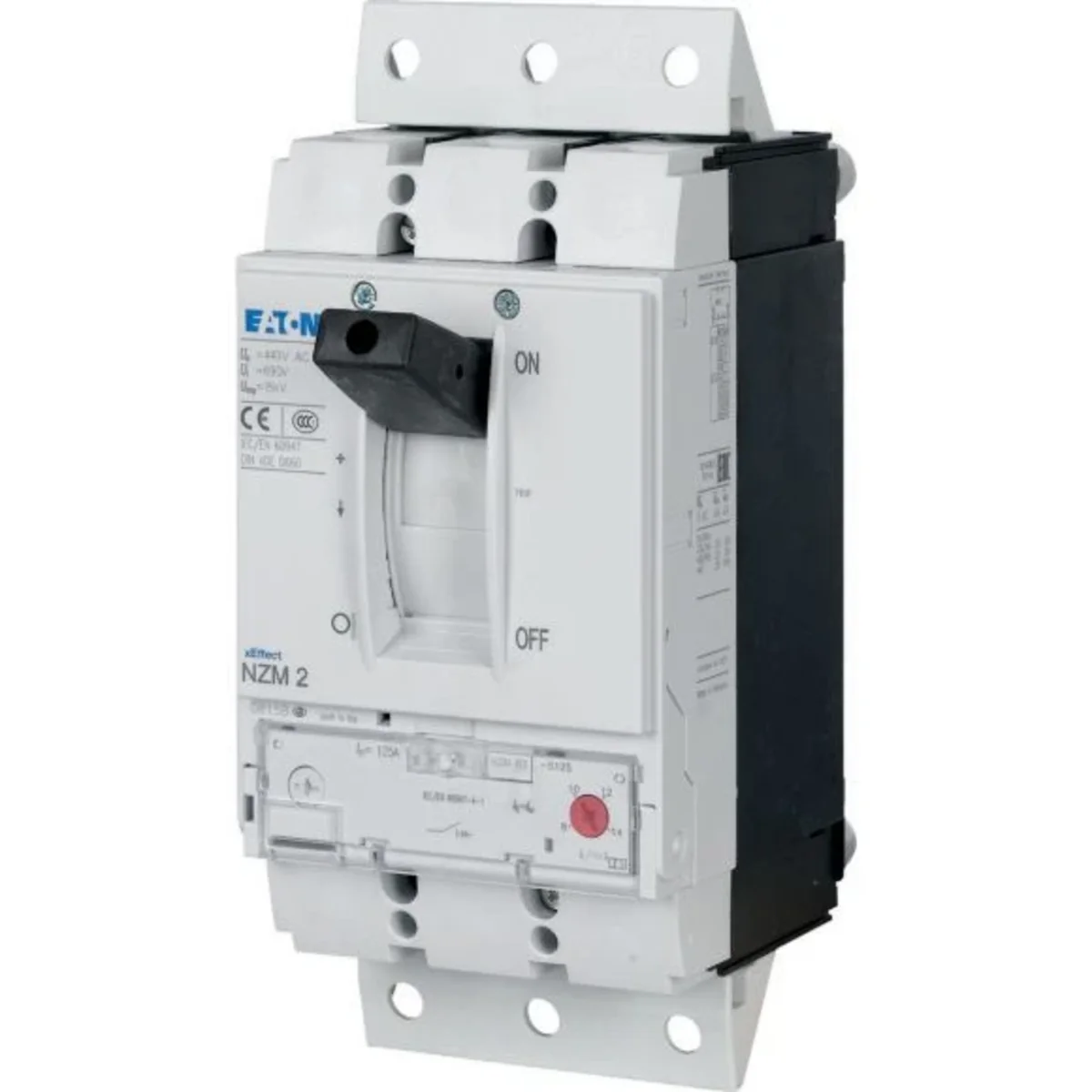

AC breaker, 3-pole, 63A, 150kA, plug, short-circuit protection

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Number of poles: 3

Installation: Plug-in technology

Rated current [A]: 63

Voir la description complète

Prix:

1 709,17 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

The circuit breakers of the NZM..-S series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With magnetic short-circuit release in combination with motor protection relay with short-circuit release without overload release. Tips: Miniature circuit breakers meet all the requirements of the AC-3 utilization category.

Données techniques

Number of poles

3
Rated current [A]

63
Switching capacity [kA]

150

Installation

Plug-in technology
Series

Short-circuit protection

Autres données techniques

Overload release current setting

0 ... 0 A
With thermal overload protection

No
Switch off technique

Magnetic
Rated permanent current Iu

63 A
Rated operation power at AC-3, 400 V

30 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

105 mm

Adjustment range undelayed short-circuit release

8 ... 14 A
Phase failure sensitive

No
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

18.5 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device plug-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

130 kA
Height

245 mm
Depth

180 mm

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia	Karton
Quantité	1 pcs.	1 pcs.
poids (kg)	2,780	2,780
Volume (m3)	0,005	0,005
Largeur (m)	0,107	0,105
Longueur (m)	0,182	0,180
Profondeur (m)	0,247	0,245
