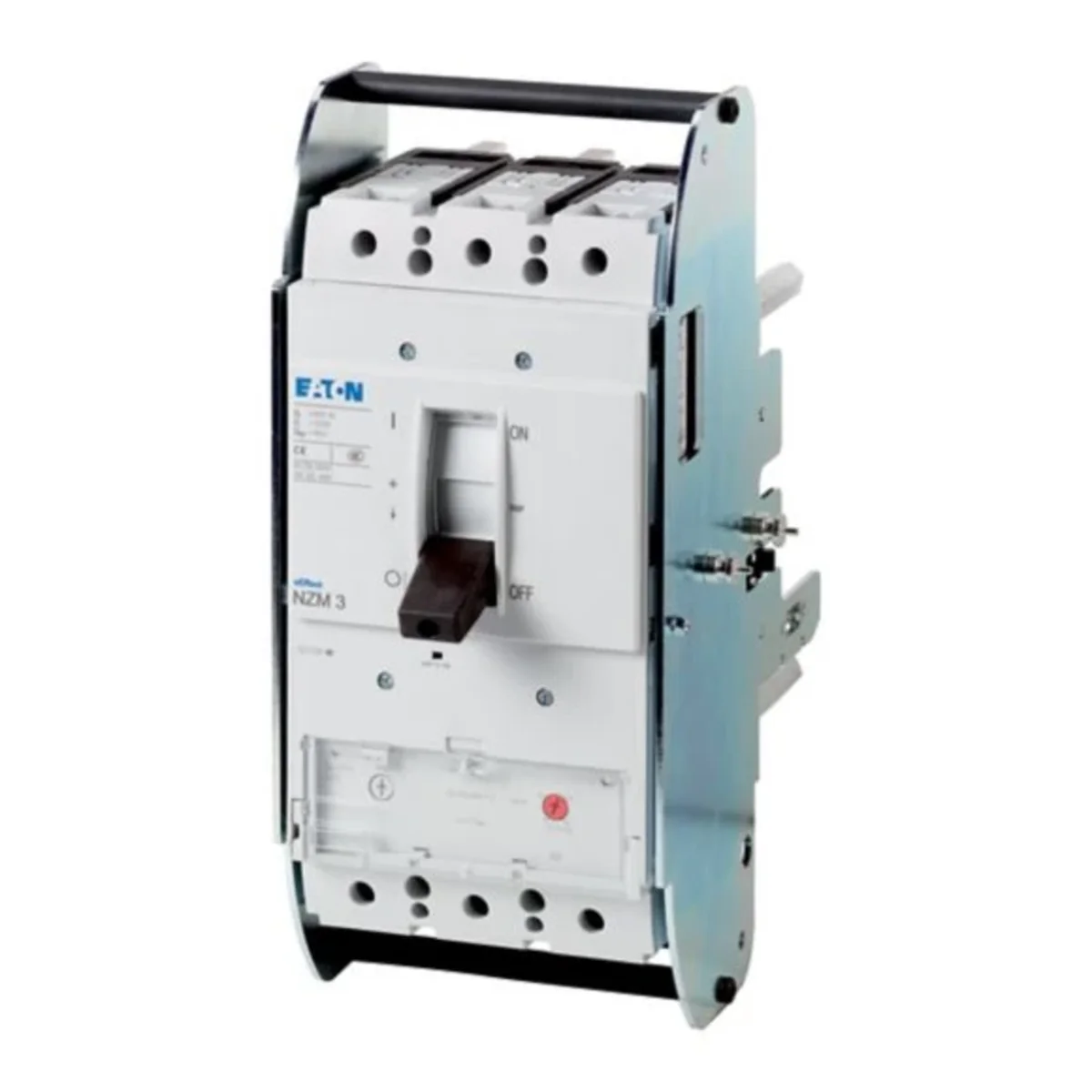

AC breaker, 3-pole, 500A, 50kA, short-circuit protection, plug-in 113526
local index:
ALM195MOEL
Catalog No:
113526
EAN code:
4015081130511
Price:
2877,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The circuit breakers of the NZM..-S series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With magnetic short-circuit release in combination with motor protection relay with short-circuit release without overload release. Tips: Miniature circuit breakers meet all the requirements of the AC-3 utilization category.
Technical data
-
Number of poles3
-
Rated current [A]500
-
Switching capacity [kA]50
-
InstallationEject technique
-
SeriesShort-circuit protection
Other technical data
-
Overload release current setting0 ... 0 A
-
With thermal overload protectionNo
-
Switch off techniqueMagnetic
-
Rated permanent current Iu500 A
-
Rated operation power at AC-3, 400 V250 kW
-
Type of control elementRocker lever
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width185 mm
-
Adjustment range undelayed short-circuit release6 ... 10 A
-
Phase failure sensitiveNo
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V160 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device slide-in technique (withdrawable)
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC35 kA
-
Height260 mm
-
Depth346 mm
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 10,000 |
| Volume (m3) | 0,017 |
| Width (m) | 0,185 |
| Length (m) | 0,346 |
| Depth (m) | 0,260 |
