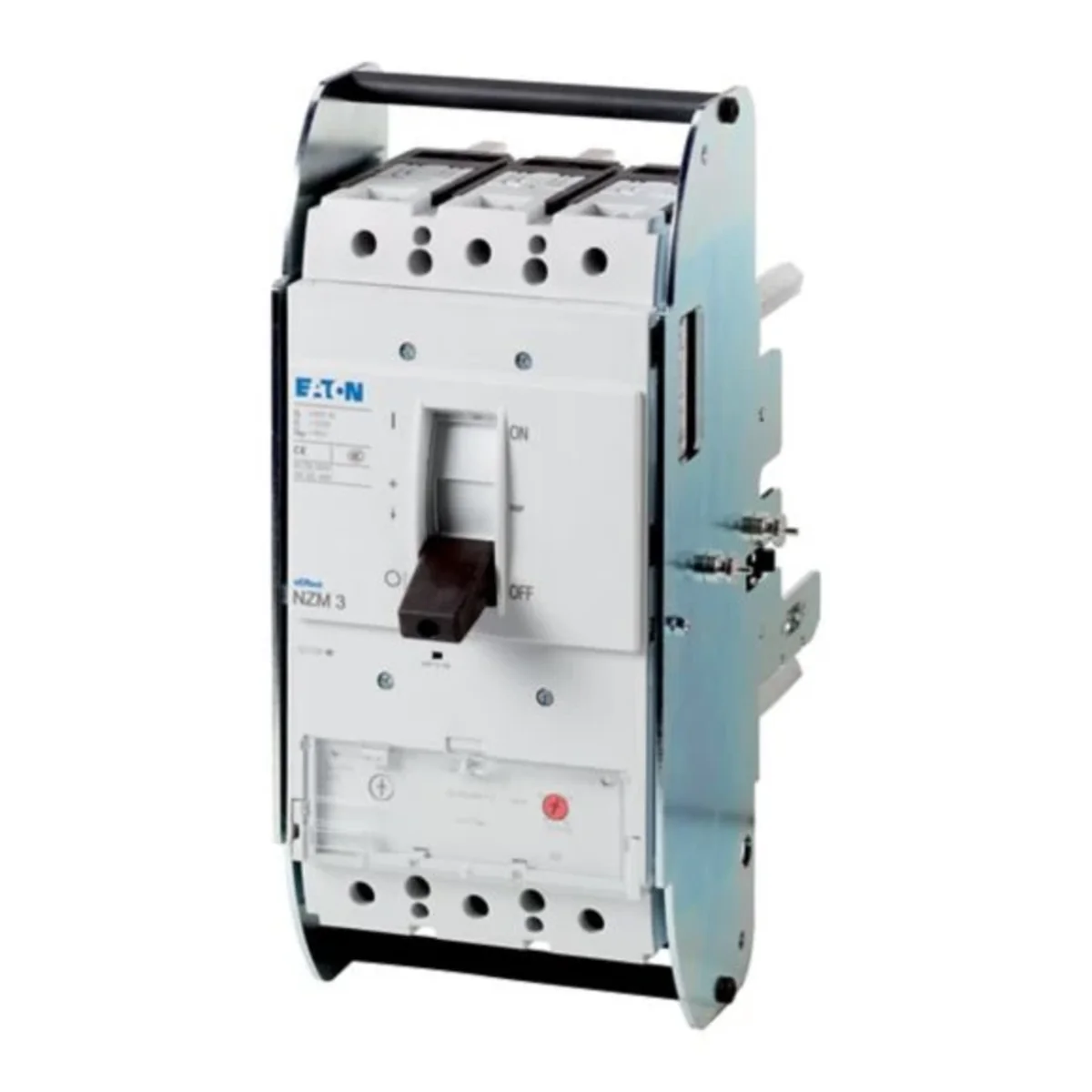

AC breaker, 3-pole, 400A, 50kA, short-circuit protection, plug-in 113525

local index:
ALM194MOEL
Catalog No:
113525
EAN code:
4015081130504
Manufacturer: EATON
Number of poles: 3
Installation: Eject technique
Rated current [A]: 400
Price:
2452,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The circuit breakers of the NZM..-S series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With magnetic short-circuit release in combination with motor protection relay with short-circuit release without overload release. Tips: Miniature circuit breakers meet all the requirements of the AC-3 utilization category.

Technical data

  • Number of poles
    3
  • Rated current [A]
    400
  • Switching capacity [kA]
    50
  • Installation
    Eject technique
  • Series
    Short-circuit protection

Other technical data

  • Overload release current setting
    0 ... 0 A
  • With thermal overload protection
    No
  • Switch off technique
    Magnetic
  • Rated permanent current Iu
    400 A
  • Rated operation power at AC-3, 400 V
    200 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    185 mm
  • Adjustment range undelayed short-circuit release
    7 ... 44328 A
  • Phase failure sensitive
    No
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    132 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device slide-in technique (withdrawable)
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    35 kA
  • Height
    260 mm
  • Depth
    346 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 10,000
Volume (m3) 0,017
Width (m) 0,185
Length (m) 0,346
Depth (m) 0,260
