AC breaker, 3-pole, 320A, 50kA, short-circuit protection, plug-in 113524

Name: AC breaker, 3-pole, 320A, 50kA, short-circuit protection, plug-in
Brand: EATON
SKU: ALM193MOEL
Price: 2290.31 PLN

local index:

ALM193MOEL

Catalog No:

113524

EAN code:

4015081130498

AC breaker, 3-pole, 320A, 50kA, short-circuit protection, plug-in

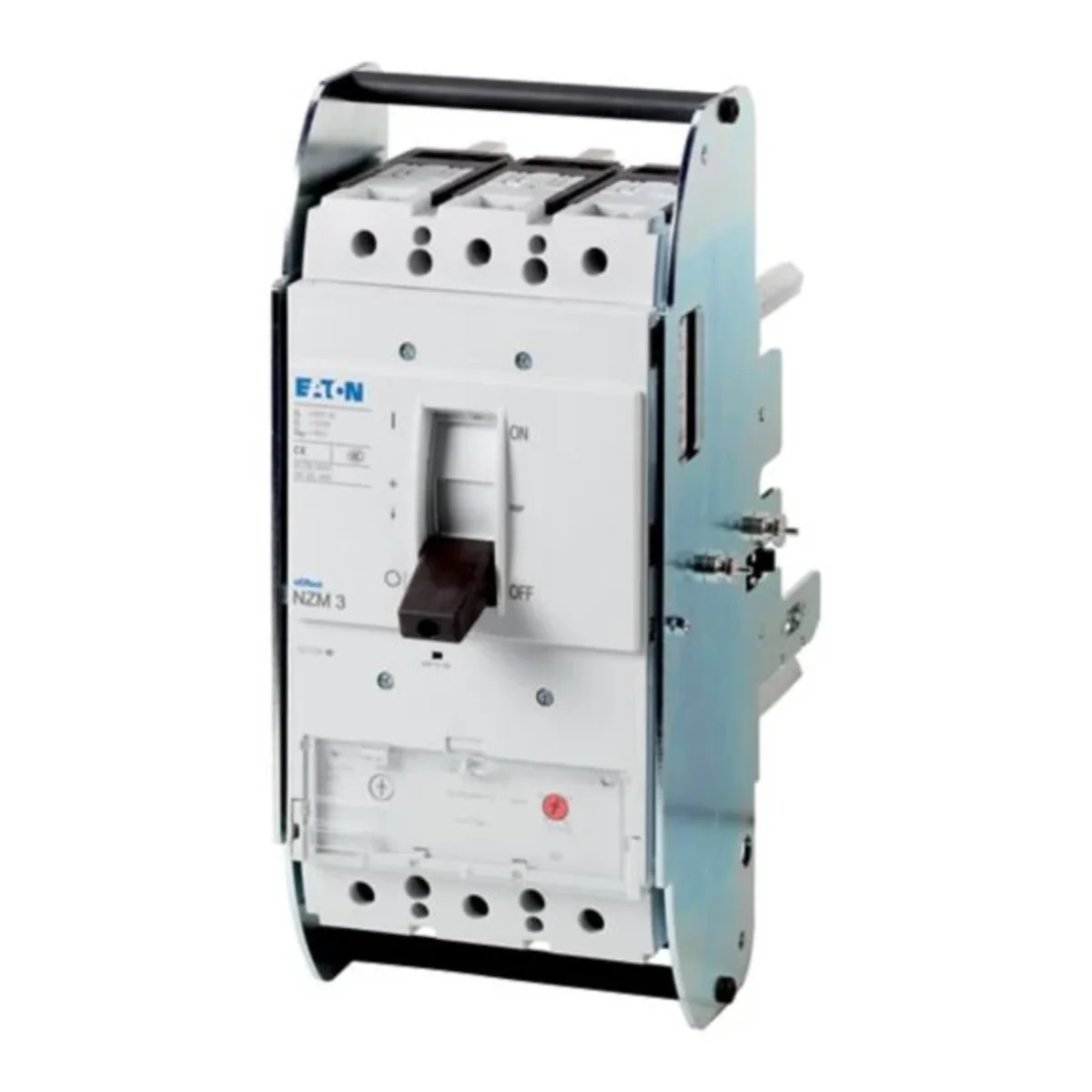

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

Installation: Eject technique

Rated current [A]: 320

See full description

Price:

2290,31 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

The circuit breakers of the NZM..-S series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With magnetic short-circuit release in combination with motor protection relay with short-circuit release without overload release. Tips: Miniature circuit breakers meet all the requirements of the AC-3 utilization category.

Technical data

Number of poles

3
Rated current [A]

320
Switching capacity [kA]

50

Installation

Eject technique
Series

Short-circuit protection

Other technical data

Overload release current setting

0 ... 0 A
With thermal overload protection

No
Switch off technique

Magnetic
Rated permanent current Iu

320 A
Rated operation power at AC-3, 400 V

160 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

185 mm

Adjustment range undelayed short-circuit release

8 ... 14 A
Phase failure sensitive

No
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

90 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device slide-in technique (withdrawable)
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

35 kA
Height

260 mm
Depth

346 mm

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	10,000	10,000
Volume (m3)	0,017	0,017
Width (m)	0,185	0,185
Length (m)	0,346	0,346
Depth (m)	0,260	0,260
