AC breaker, 3-pole, 250A, 50kA, short-circuit protection, plug-in 113523

Name: AC breaker, 3-pole, 250A, 50kA, short-circuit protection, plug-in
Brand: EATON
SKU: ALM192MOEL
Price: 8936.49 PLN
Availability: BackOrder

Índice local:

ALM192MOEL

Número de catálogo:

113523

Código EAN:

4015081130481

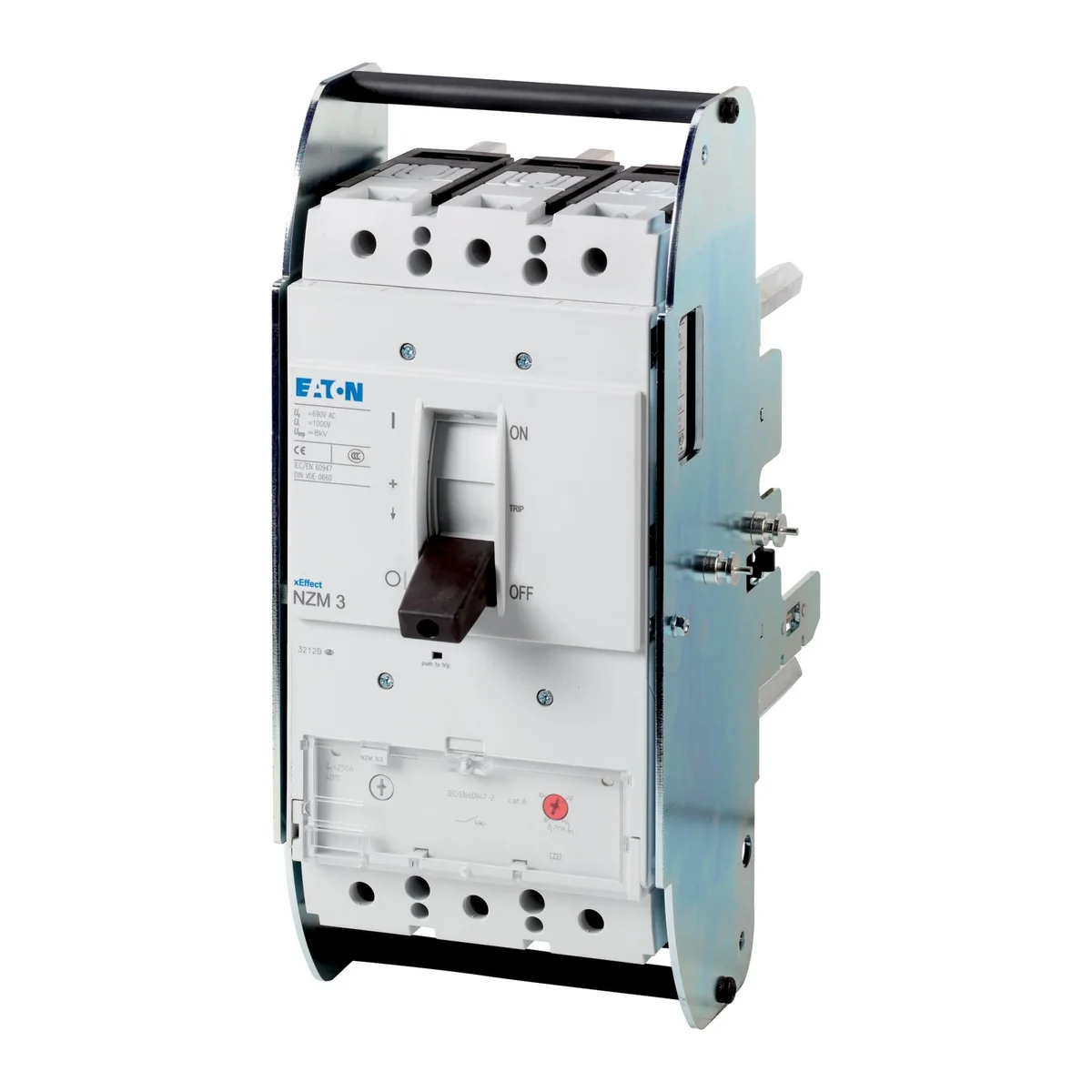

AC breaker, 3-pole, 250A, 50kA, short-circuit protection, plug-in

Haga clic en la foto para ampliar

Fabricante: EATON

Number of poles: 3

Installation: Eject technique

Rated current [A]: 250

Ver descripción completa

Precio:

8 936,49 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

The circuit breakers of the NZM..-S series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With magnetic short-circuit release in combination with motor protection relay with short-circuit release without overload release. Tips: Miniature circuit breakers meet all the requirements of the AC-3 utilization category.

Datos técnicos

Number of poles

3
Rated current [A]

250
Switching capacity [kA]

50

Installation

Eject technique
Series

Short-circuit protection

Otros datos técnicos

Overload release current setting

0 ... 0 A
With thermal overload protection

No
Switch off technique

Magnetic
Rated permanent current Iu

250 A
Rated operation power at AC-3, 400 V

132 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

185 mm

Adjustment range undelayed short-circuit release

8 ... 14 A
Phase failure sensitive

No
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

75 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device slide-in technique (withdrawable)
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

35 kA
Height

260 mm
Depth

346 mm

Detalles del fabricante

Fabricante

Eaton Electric Sp. z o.o.
Dirección

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete	Skrzynia	Karton
Cantidad	1 uds.	1 uds.
Peso (kg)	10,000	10,000
Volumen (m3)	0,017	0,017
Ancho (m)	0,187	0,185
Longitud (m)	0,348	0,346
Profundidad (m)	0,262	0,260
