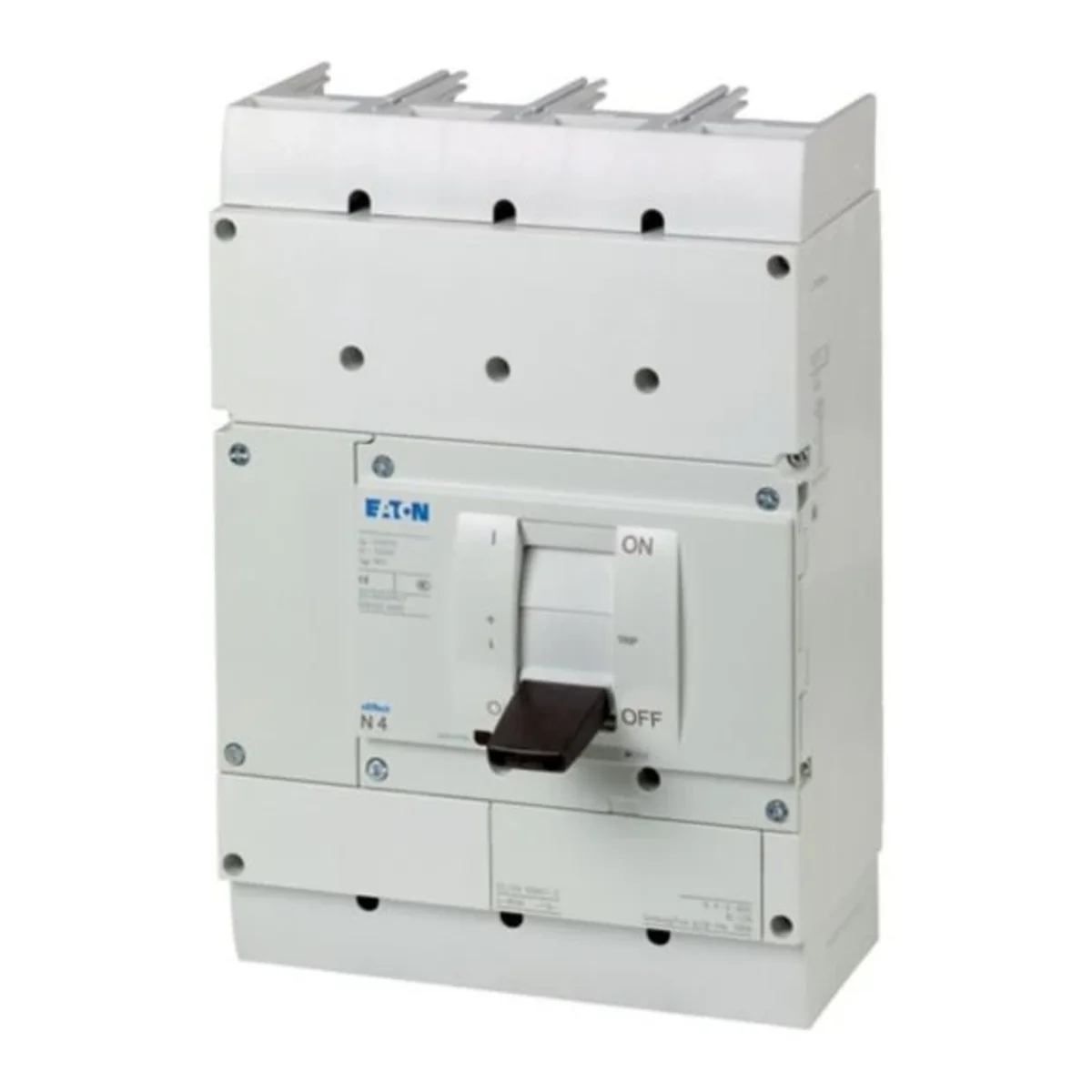

4b switch disconnector 800A 1000VDC 119890

local index:
ALM235MOEL
Catalog No:
119890
EAN code:
4015081177387
Manufacturer: EATON
Number of poles: 4
Installation: Constant
Rated operating voltage up to [V]: 1000
Price:
3788,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Special version N.. switch-disconnectors up to 1500VDC are used in the 1- or 2-pole version. They have the characteristics of disconnectors for grounded IT networks. Accessories such as connection kits, clamps and swivel brackets for the door coupling allow for individual assembly in various manifold systems. Auxiliary switches, voltage releases and remote drives enable signaling and automation. Notes: features of the main circuit breakers including forcing according to IEC/EN 60204 and VDE 0113. Disconnection features according to IEC/EN 60947-3 and VDE 0660. Connection method: for 2-pole switching, a series circuit is required according to the available possibilities connections. The switches cannot be combined using plug-in/retractable and/or rear connection.

Technical data

  • Number of poles
    4
  • Rated operating voltage up to [V]
    1000
  • Installation
    Constant
  • Rated operational current [A]
    800

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    0 V
  • Rated permanent current at AC-23, 400 V
    0 A
  • Rated operation power at AC-3, 400 V
    0 kW
  • Rated operation power at AC-23, 400 V
    0 kW
  • Conditioned rated short-circuit current Iq
    0 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Black
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Number of switches
    1
  • Rated operating voltage
    1000 ... 1000 V
  • Rated permanent current at AC-21, 400 V
    0 A
  • Rated short-time withstand current lcw
    34 kA
  • Switching power at 400 V
    0 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    Yes
  • Voltage release optional
    Yes
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    Yes
  • Type of control element
    Rocker lever
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 23,670
Volume (m3) 0,023
Width (m) 0,280
Length (m) 0,401
Depth (m) 0,207
