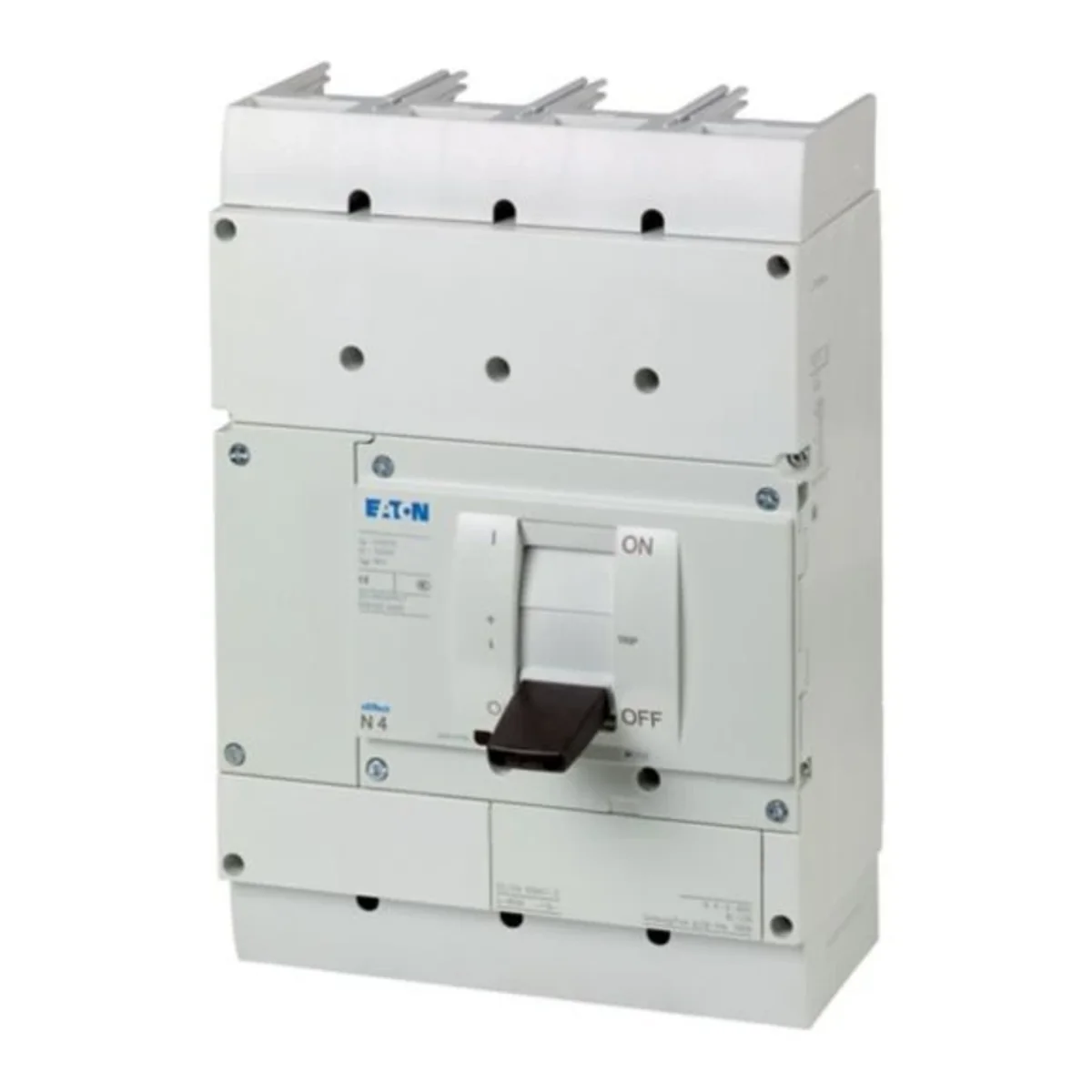

4b switch disconnector 1250A 1000VDC 119886
local index:
ALM233MOEL
Catalog No:
119886
EAN code:
4015081177349
Manufacturer:
EATON
Number of poles: 4
Installation: Constant
Rated operating voltage up to [V]: 1000
Price:
5343,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Special version N.. switch-disconnectors up to 1500VDC are used in the 1- or 2-pole version. They have the characteristics of disconnectors for grounded IT networks. Accessories such as connection kits, clamps and swivel brackets for the door coupling allow for individual assembly in various manifold systems. Auxiliary switches, voltage releases and remote drives enable signaling and automation. Notes: Main circuit breaker features including forcing according to IEC/EN 60204 and VDE 0113. Disconnection features according to IEC/EN 60947-3 and VDE 0660.
Connection method: for 2-pole switching required is a serial system according to the existing connection possibilities. The switches cannot be combined using plug-in/retractable and/or rear connection.
Technical data
-
Number of poles4
-
Rated operating voltage up to [V]1000
-
InstallationConstant
-
Rated operational current [A]1250
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC0 V
-
Rated permanent current at AC-23, 400 V0 A
-
Rated operation power at AC-3, 400 V0 kW
-
Rated operation power at AC-23, 400 V0 kW
-
Conditioned rated short-circuit current Iq0 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage1000 ... 1000 V
-
Rated permanent current at AC-21, 400 V0 A
-
Rated short-time withstand current lcw34 kA
-
Switching power at 400 V0 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
Type of control elementRocker lever
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)Other
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 22,000 |
| Volume (m3) | 0,023 |
| Width (m) | 0,280 |
| Length (m) | 0,401 |
| Depth (m) | 0,207 |
