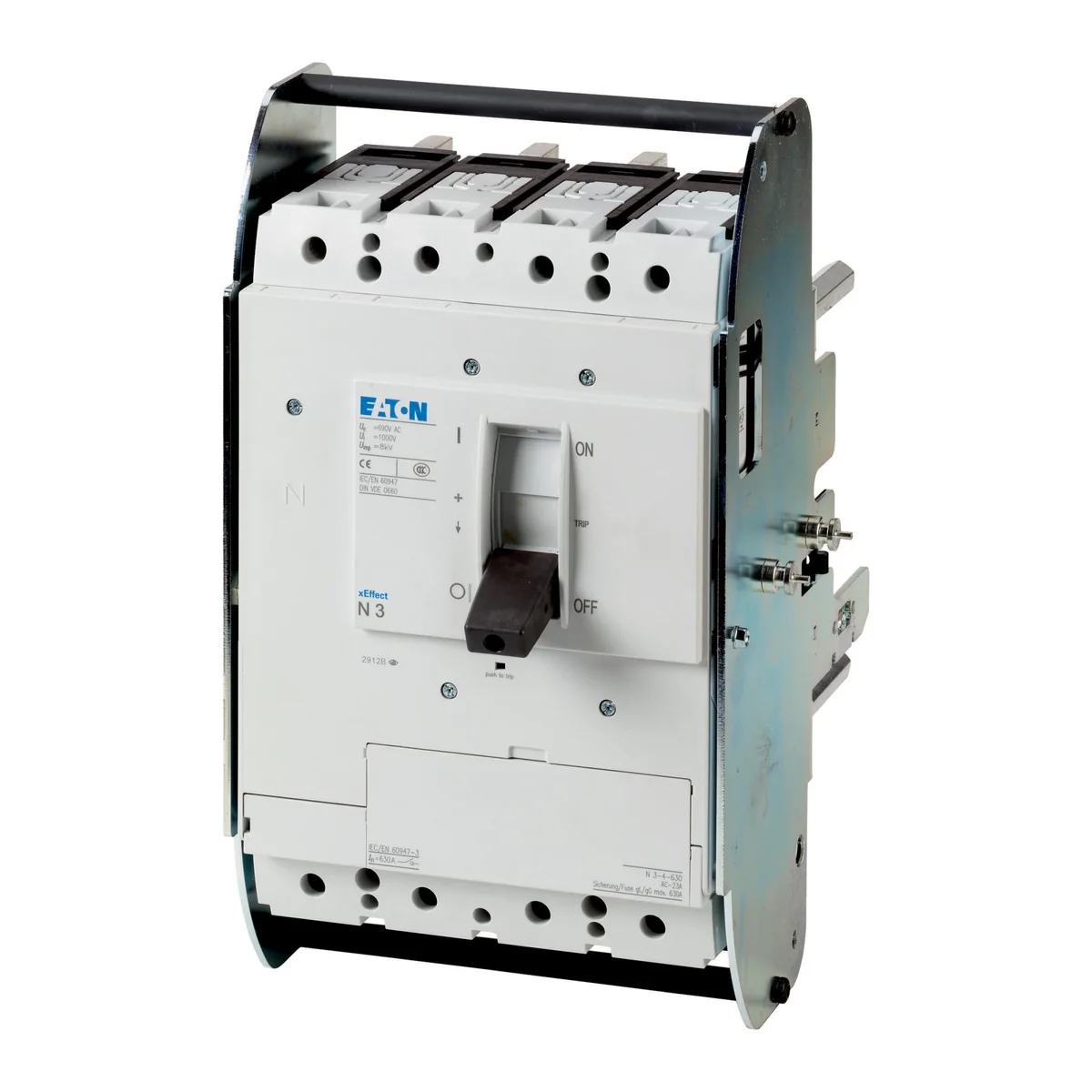

4-pole switch disconnector 630A + withdrawable 110873
local index:
ALM091MOEL
Catalog No:
110873
EAN code:
4015081104024
Price:
2188,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
N.. -.. switch disconnectors have features of disconnectors for grounded IT networks. Accessories such as connection kits, clamps and swivel brackets for the door coupling allow for individual assembly in various manifold systems. Auxiliary switches, voltage releases and remote drives enable signaling and automation. Guidance: main circuit breaker features including forcing according to IEC/EN 60204 and VDE 0113. Disconnection features according to IEC/EN 60947-3 and VDE 0660. Touch protection according to VDE 0160 part 100.
Technical data
-
Number of poles4
-
Rated current [A]630
-
InstallationEject technique
-
SeriesSwitch-disconnector/Main switch
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current at AC-23, 400 V0 A
-
Rated operation power at AC-3, 400 V0 kW
-
Rated operation power at AC-23, 400 V315 kW
-
Conditioned rated short-circuit current Iq0 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device slide-in technique (withdrawable)
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-21, 400 V0 A
-
Rated short-time withstand current lcw12 kA
-
Switching power at 400 V0 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
Type of control elementRocker lever
-
Type of electrical connection of main circuitScrew connection
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 20,452 |
| Volume (m3) | 0,021 |
| Width (m) | 0,230 |
| Length (m) | 0,260 |
| Depth (m) | 0,346 |
