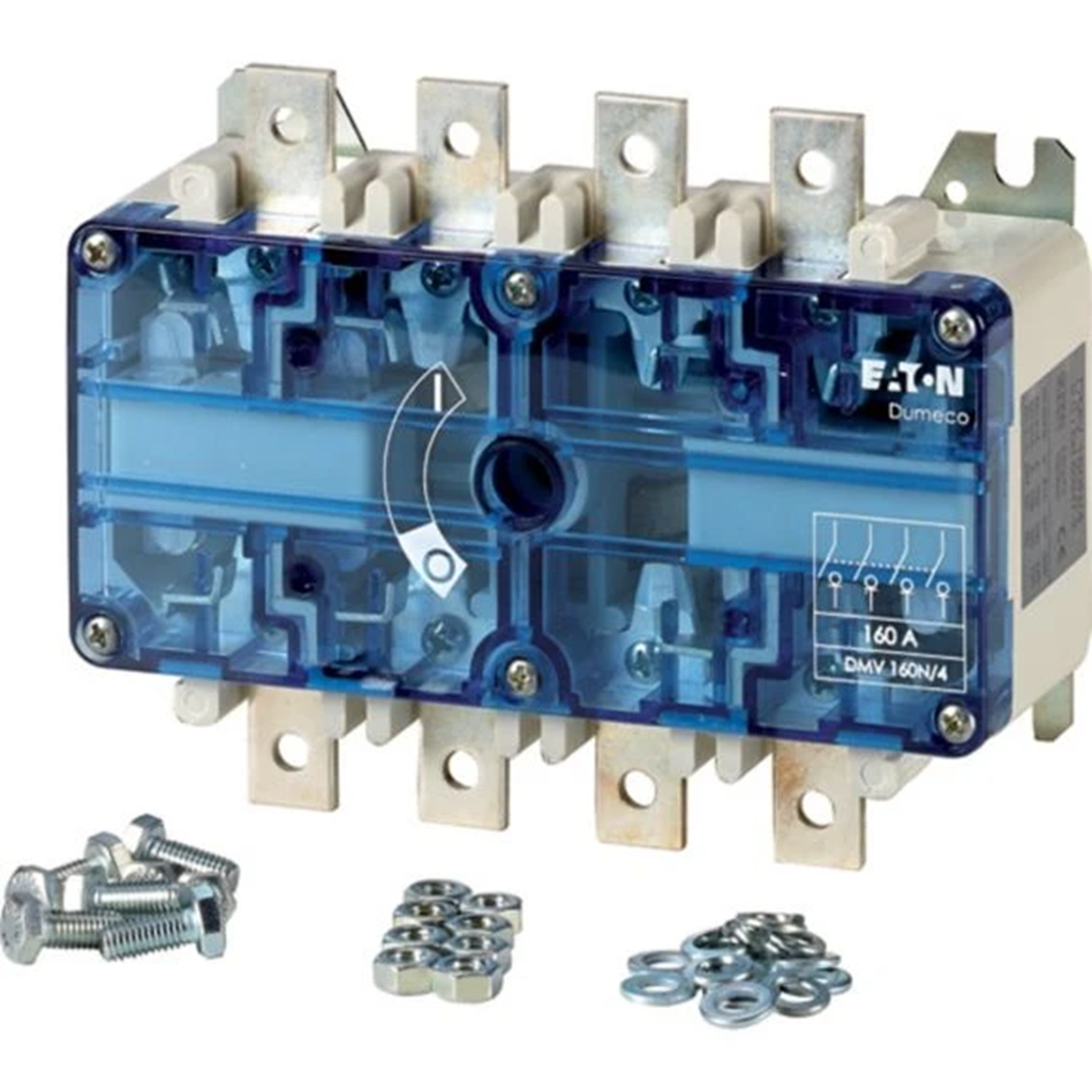

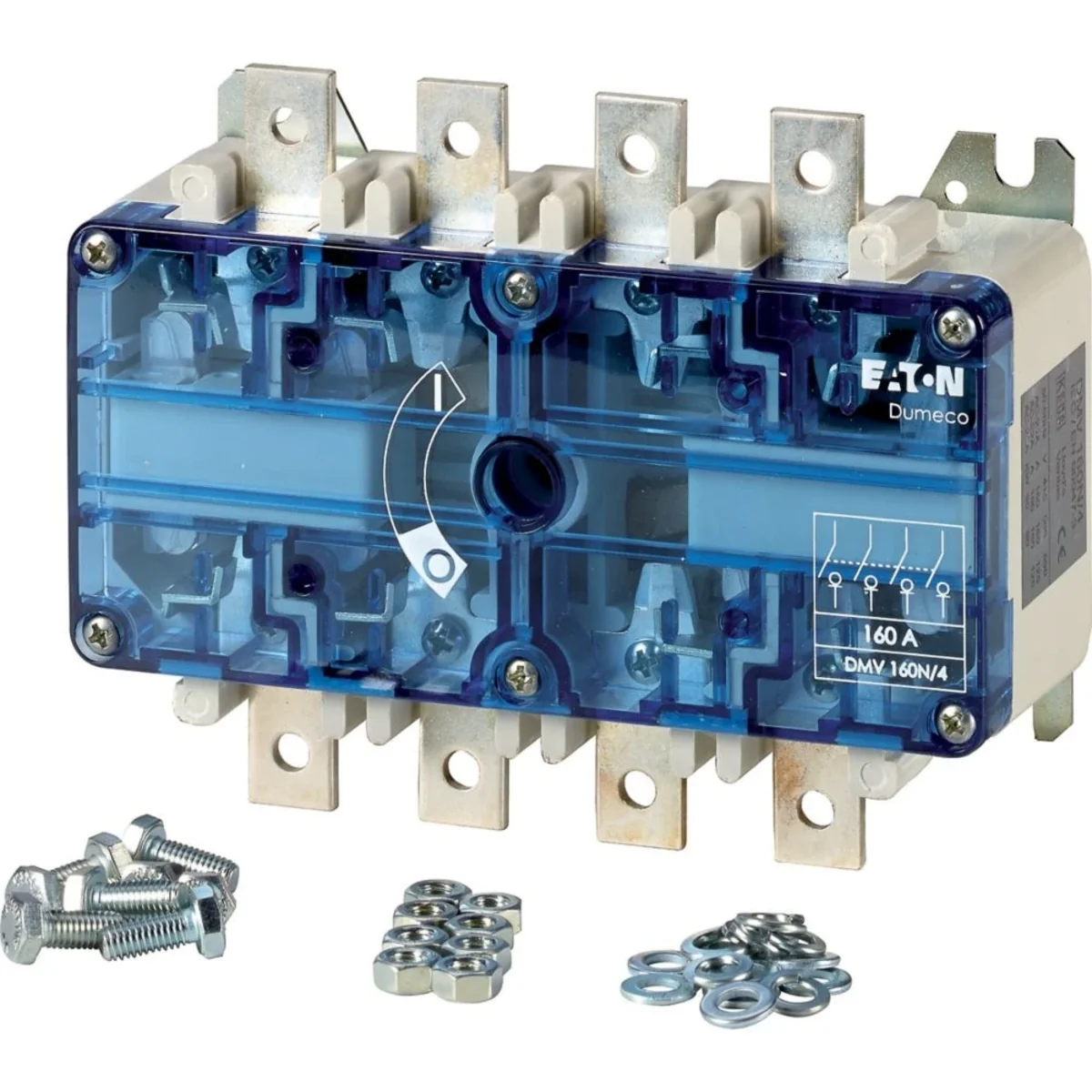

4-pole switch disconnector 160A DMV160N/4 1814179

local index:
ALI015MOEL
Catalog No:
1814179
EAN code:
8711426211001
Manufacturer: EATON
Number of poles: 4
Rated voltage [V]: 690
Family: DUMECO
Price:
245,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

  • Device design Fixed device
  • Number of poles 4
  • Maximum rated operating voltage Ue AC [V] 690
  • Type of connection main circuit Screw connection
  • Ingress protection (IP)IP20
  • Rated operational power for AC-23, 400 V [kW] 90
  • Rated continuous current Iu [A]160

Technical data

  • Number of poles
    4
  • Family
    DUMECO
  • Current [A]
    160
  • Rated voltage [V]
    690
  • Level of security
    IP20

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    160 A
  • Rated permanent current at AC-21, 400 V
    160 A
  • Rated short-time withstand current lcw
    8 kA
  • Switching power at 400 V
    90 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Other
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Number of switches
    1
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-23, 400 V
    154 A
  • Rated operation power at AC-3, 400 V
    0 kW
  • Rated operation power at AC-23, 400 V
    90 kW
  • Conditioned rated short-circuit current Iq
    100 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Complete device in housing
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Other
  • Interlockable
    No
  • Degree of protection (IP), front side
    IP20

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,080
Volume (m3) 0,002
Width (m) 0,135
Length (m) 0,170
Depth (m) 0,075
