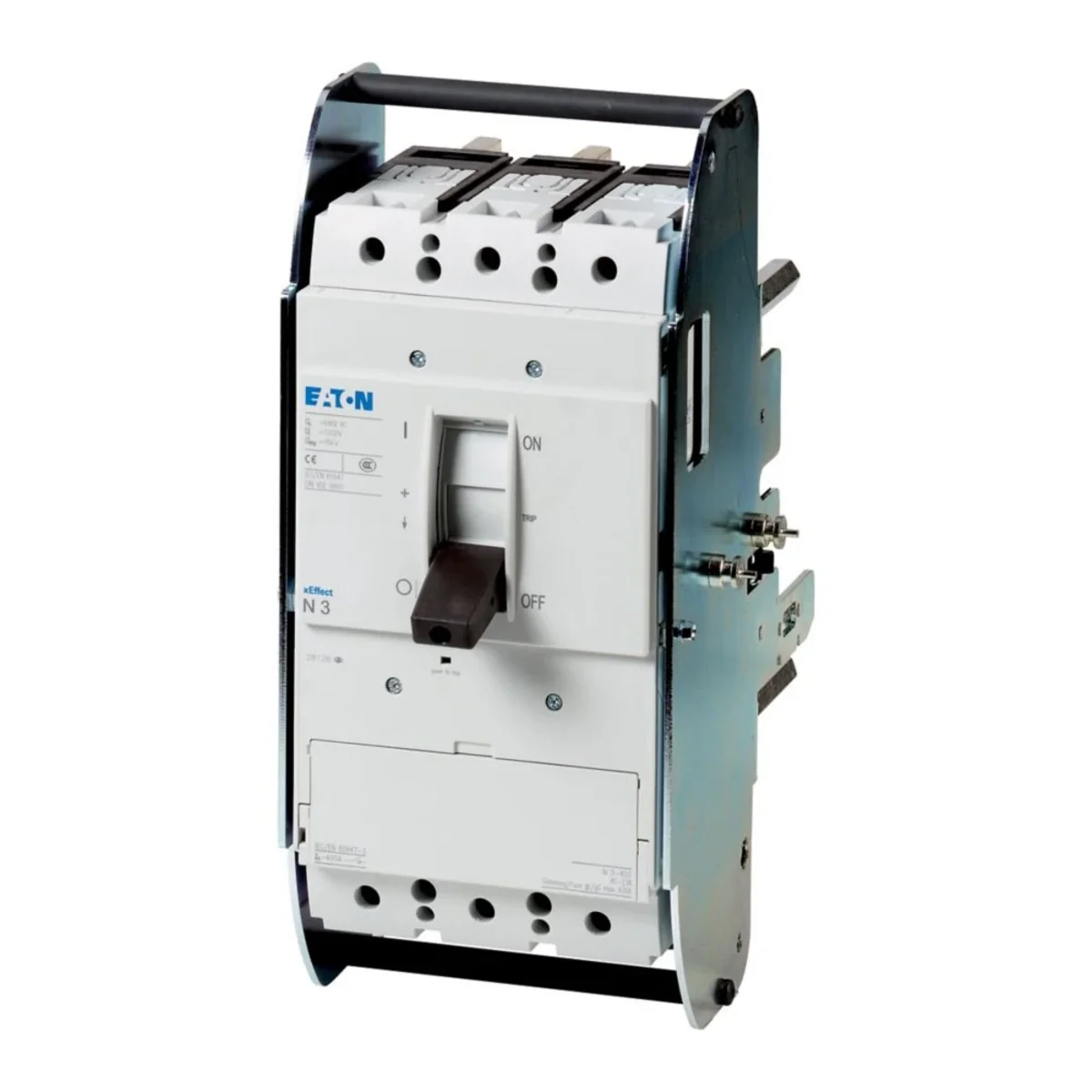

3-pole power switch. 400A BG3 withdrawable version 110768
Místní index:
ALM029MOEL
Katalogové číslo.:
110768
EAN kód:
4015081103171
Výrobce:
EATON
Number of poles: 3
Installation: Retractable, screw connection
Level of security: IP20
Cena:
4 499,55 zł
gross / kusů.
(včetně DPH 23%)
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Dotaz na výrobek
Popis produktu
N.. -.. switch disconnectors have features of disconnectors for grounded IT networks. Accessories such as connection kits, clamps and swivel brackets for the door coupling allow for individual assembly in various manifold systems. Auxiliary switches, voltage releases and remote drives enable signaling and automation. Guidance: main circuit breaker features including forcing according to IEC/EN 60204 and VDE 0113. Disconnection features according to IEC/EN 60947-3 and VDE 0660. Touch protection according to VDE 0160 part 100
Technické údaje
-
Number of poles3
-
Level of securityIP20
-
Rated operational power at AC-3, 400 V [kW]200
-
InstallationRetractable, screw connection
-
Rated operating power for AC-23, 400 V [kW]200
-
Maximum operating voltage [V]690
Další technické údaje
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current at AC-23, 400 V0 A
-
Rated operation power at AC-3, 400 V0 kW
-
Rated operation power at AC-23, 400 V200 kW
-
Conditioned rated short-circuit current Iq0 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device slide-in technique (withdrawable)
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-21, 400 V0 A
-
Rated short-time withstand current lcw12 kA
-
Switching power at 400 V0 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
Type of control elementRocker lever
-
Type of electrical connection of main circuitScrew connection
Podrobnosti o výrobci
-
VýrobceEaton Electric Sp. z o.o.
-
Adresa80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Velkoobjemová balení
| Typ obalu | Skrzynia |
| Množství | 1 kusů. |
| Hmotnost (kg) | 16,060 |
| Objem (m3) | 0,017 |
| Šířka (m) | 0,185 |
| Délka (m) | 0,260 |
| Hloubka (m) | 0,346 |
