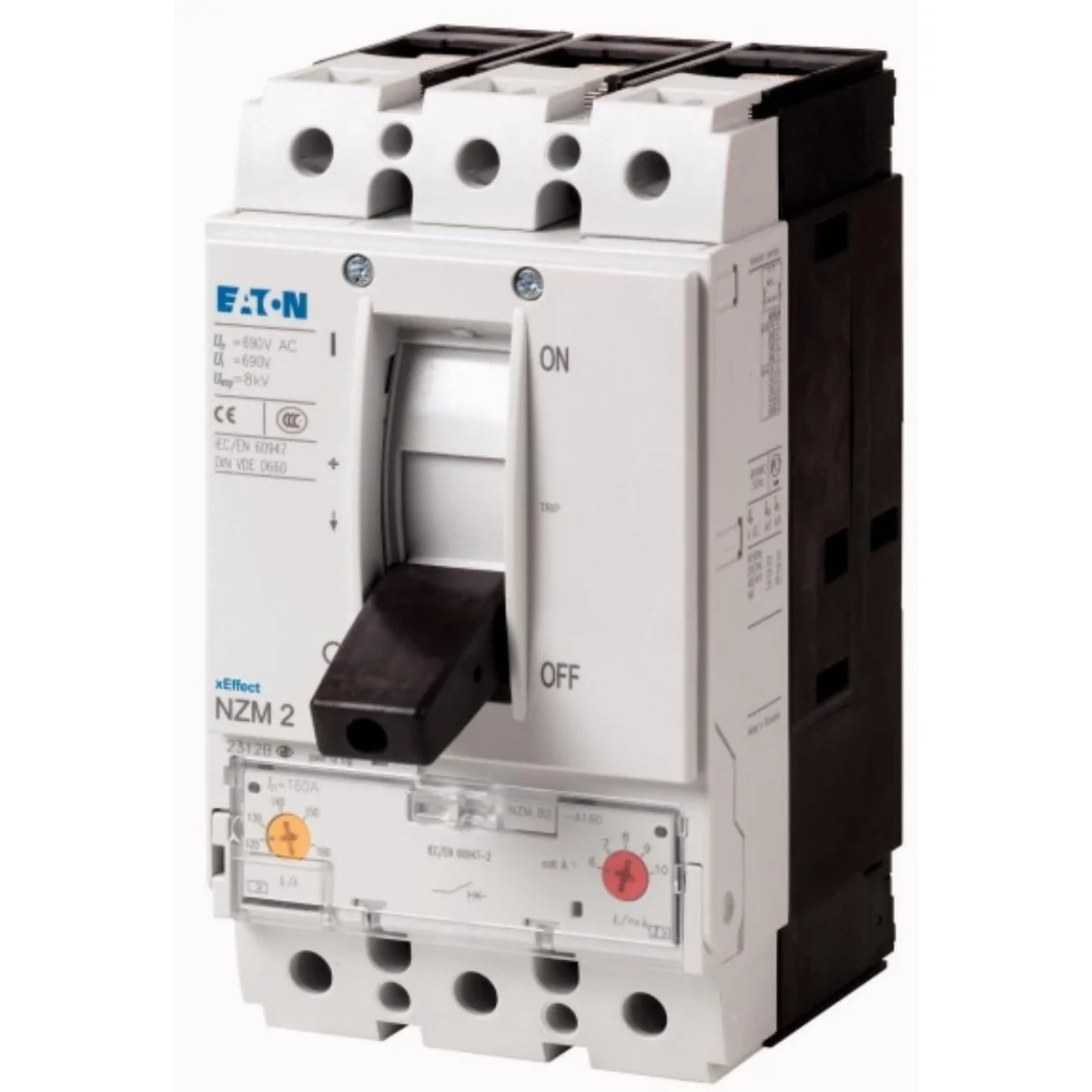

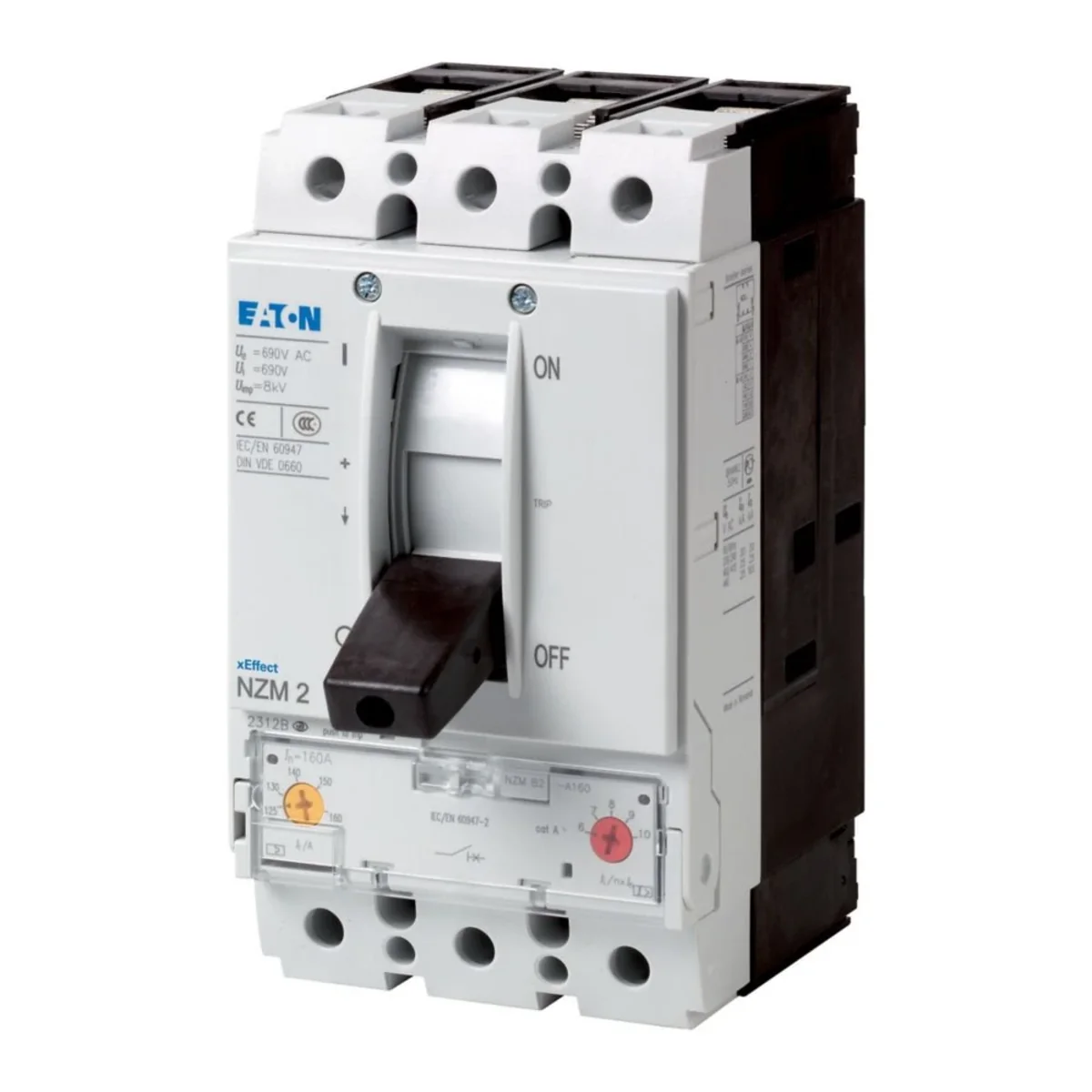

3-pole power circuit breaker, 40A, NZMH2-A40 259095
local index:
ALP070MOEL
Catalog number:
259095
EAN code:
4015082590956
1445
50
zł
gross / pcs.
(including VAT 23%)
Availability
Dostępne up to 2 weeks
On request
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
3-pole power switch 40A BG2
Technical data
-
Number of poles3
-
Overload release [A]32-40
-
Switching capacity [kA]150
-
Rated current [A]40
-
Short-circuit release [A]2014-08-10 00:00:00
Other technical data
-
Rated permanent current Iu40 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz150 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage690 ... 690 V
-
Overload release current setting32 ... 40 A
-
Adjustment range undelayed short-circuit release320 ... 400 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerEaton Electric Sp. z o.o.
-
Address80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Skrzynia |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 2,455 | 2,455 |
| Volume (m3) | 0,003 | 0,003 |
| Width (m) | 0,105 | 0,105 |
| Length (m) | 0,149 | 0,149 |
| Depth (m) | 0,184 | 0,184 |
