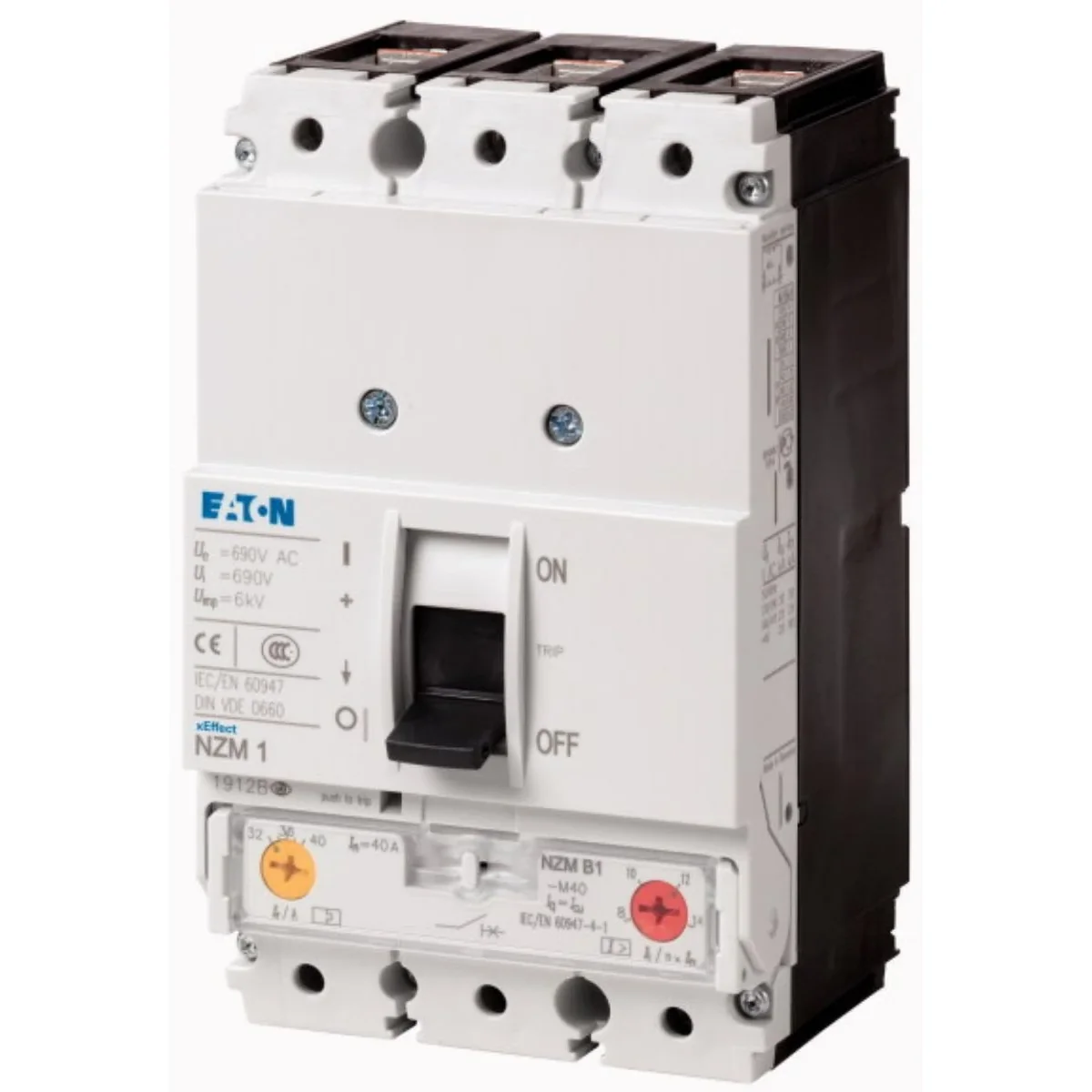

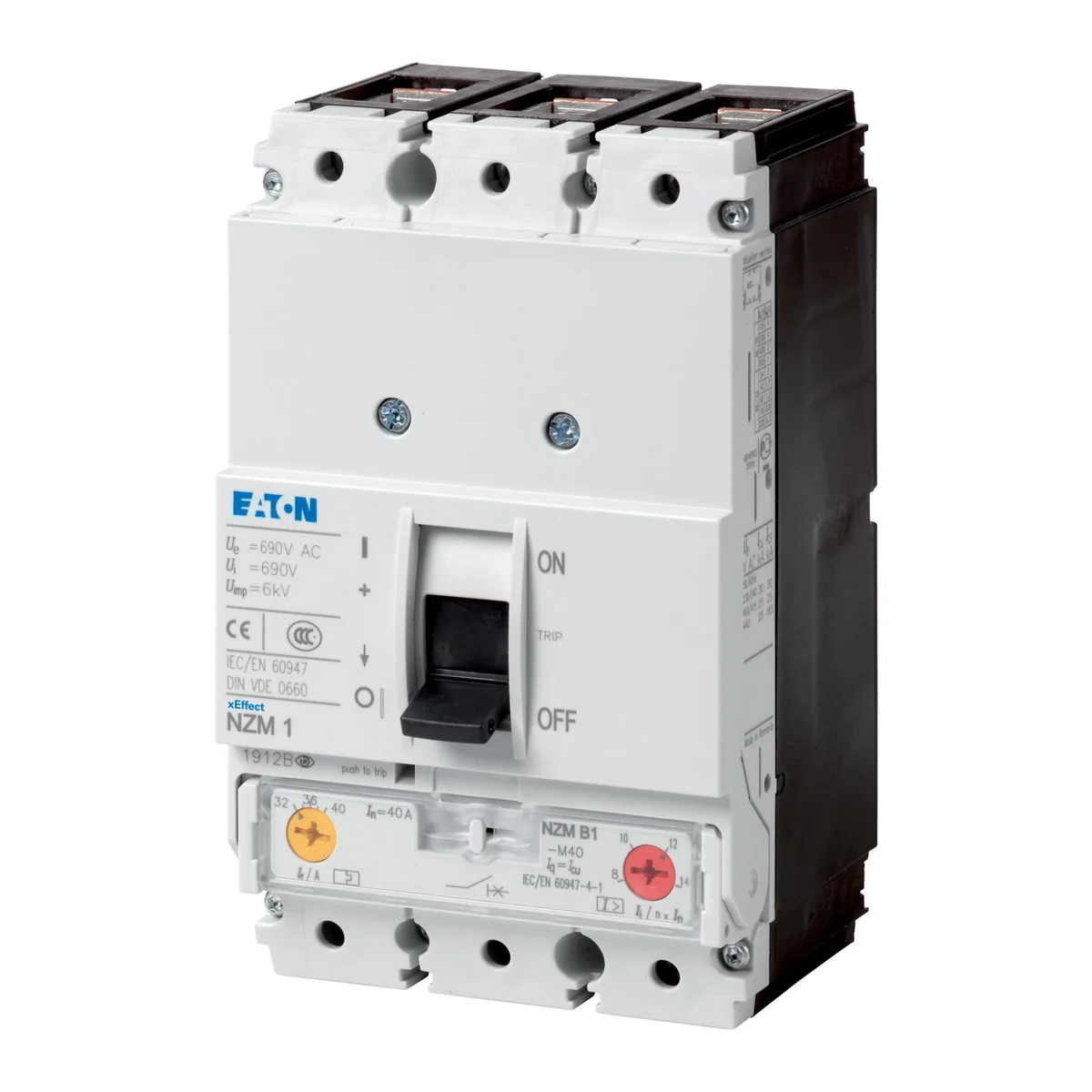

3-pole circuit breaker, 63A, NZMN1-M63 265720
local index:
ALI323MOEL
Catalog No:
265720
EAN code:
4015082657208
Price:
356,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
3-pole power switch.63A protection
Technical data
-
Number of poles3
-
Rated current [A]63
Other technical data
-
Overload release current setting50 ... 63 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu63 A
-
Rated operation power at AC-3, 400 V30 kW
-
Type of control elementRocker lever
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width90 mm
-
Adjustment range undelayed short-circuit release504 ... 882 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V18.5 kW
-
Type of electrical connection of main circuitOther
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC35 kA
-
Height145 mm
-
Depth88 mm
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 1,080 |
| Volume (m3) | 0,001 |
| Width (m) | 0,090 |
| Length (m) | 0,088 |
| Depth (m) | 0,145 |
