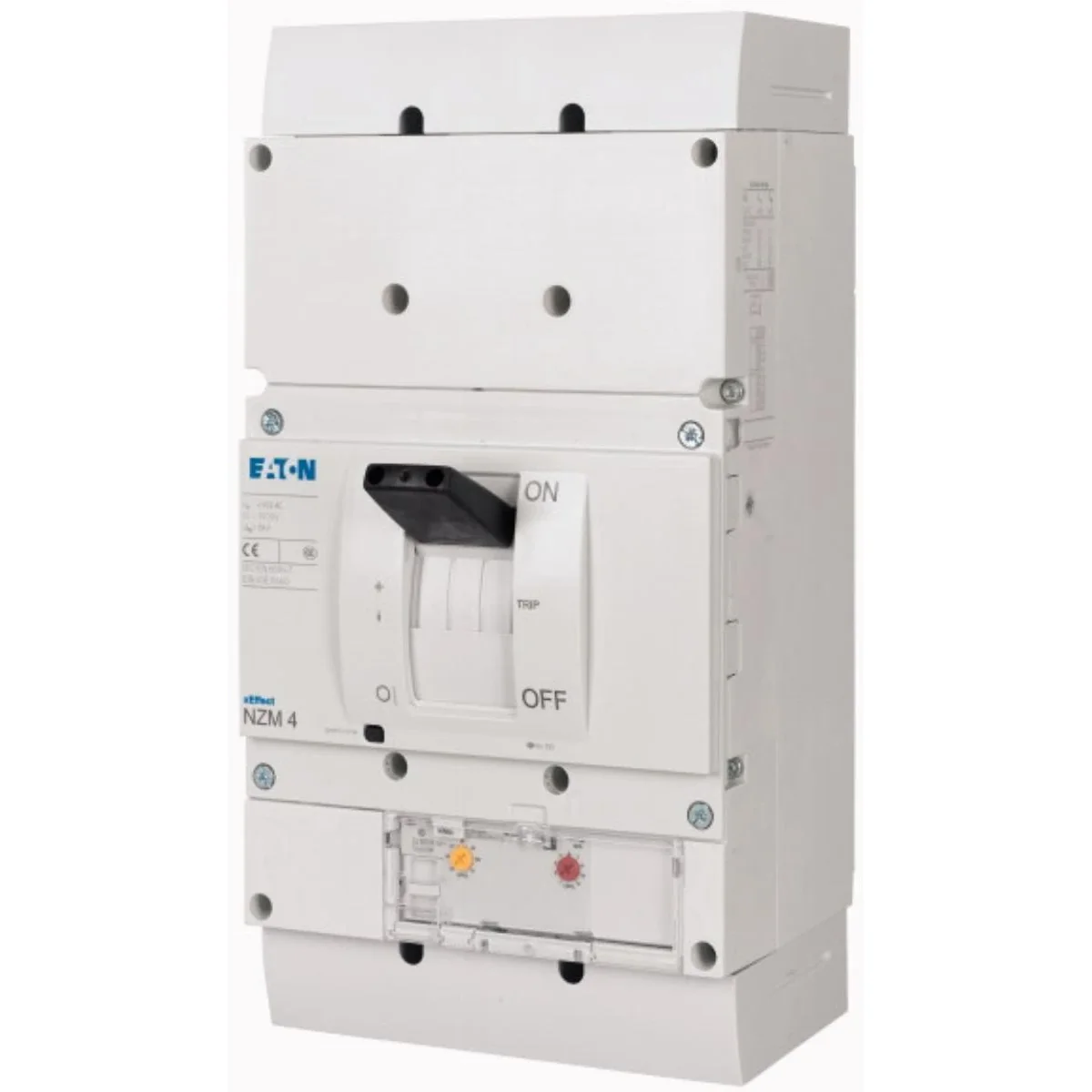

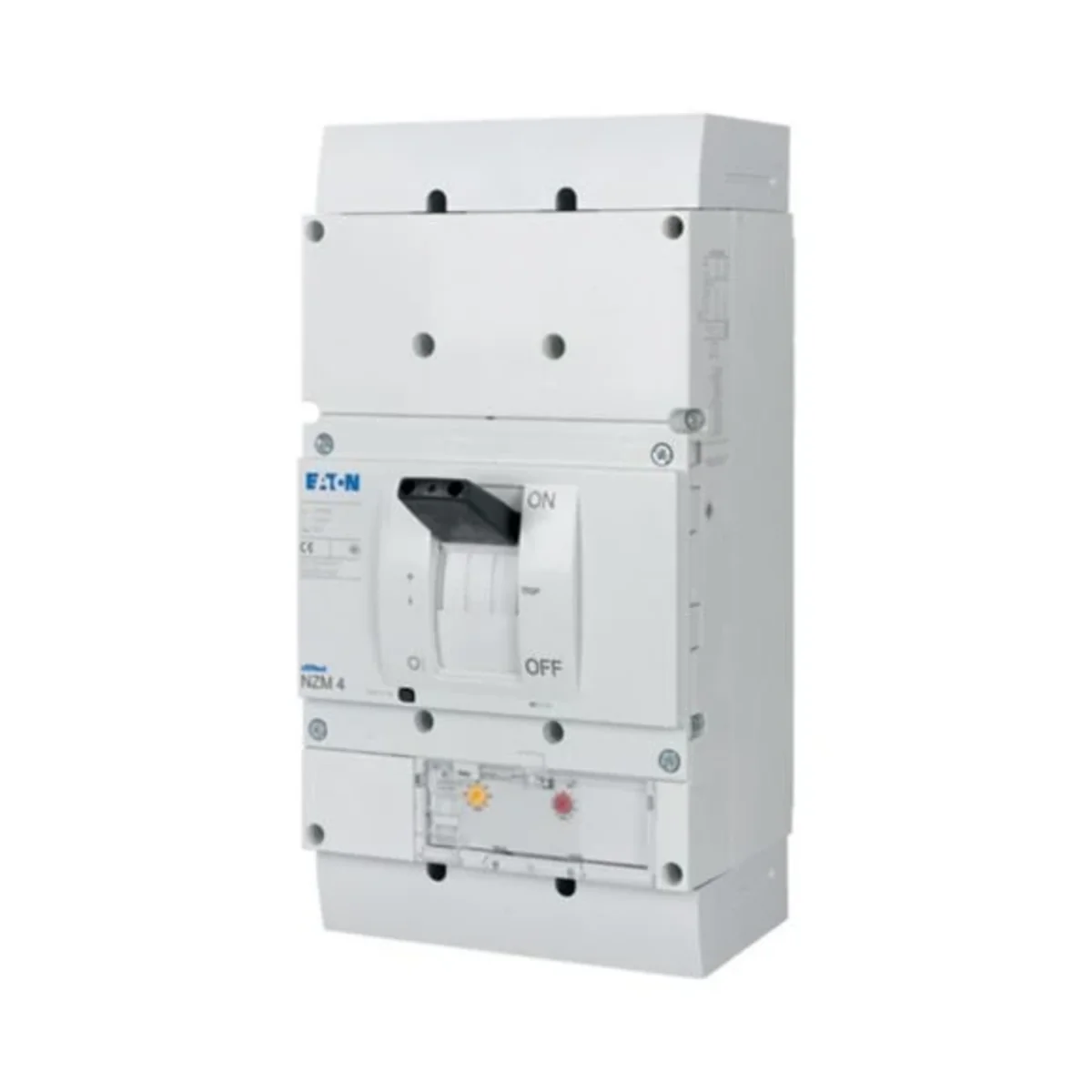

3-pole circuit breaker, 630A, NZMN4-AE630 265758
local index:
ALM052MOEL
Catalog No:
265758
EAN code:
4015082657581
Manufacturer:
EATON
Instantaneous short-circuit release [A]: 1260-7560
Number of poles: 3
Rated current [A]: 630
Price:
2835,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
• Breaking capacity 50 kA
• Adjustable overload releases
• Adjustable instantaneous short-circuit releases
• In the electronic version of the VE trip unit, adjustable delayed short-circuit releases
• Communication and diagnostics as standard on the electronic versions of the VE and AE trip units!
• The full offer is available in the "Industrial Equipment" catalog
• Possibility of adding a shunt or undervoltage release
• Adjustable overload releases
• Adjustable instantaneous short-circuit releases
• In the electronic version of the VE trip unit, adjustable delayed short-circuit releases
• Communication and diagnostics as standard on the electronic versions of the VE and AE trip units!
• The full offer is available in the "Industrial Equipment" catalog
• Possibility of adding a shunt or undervoltage release
Technical data
-
Instantaneous short-circuit release [A]1260-7560
-
Rated current [A]630
-
Switching capacity [kA]50
-
Number of poles3
-
Overload release [A]315-630
Other technical data
-
Rated permanent current Iu630 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz37 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage690 ... 690 V
-
Overload release current setting315 ... 630 A
-
Adjustment range undelayed short-circuit release1260 ... 7560 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 16,520 |
| Volume (m3) | 0,017 |
| Width (m) | 0,210 |
| Length (m) | 0,401 |
| Depth (m) | 0,207 |
