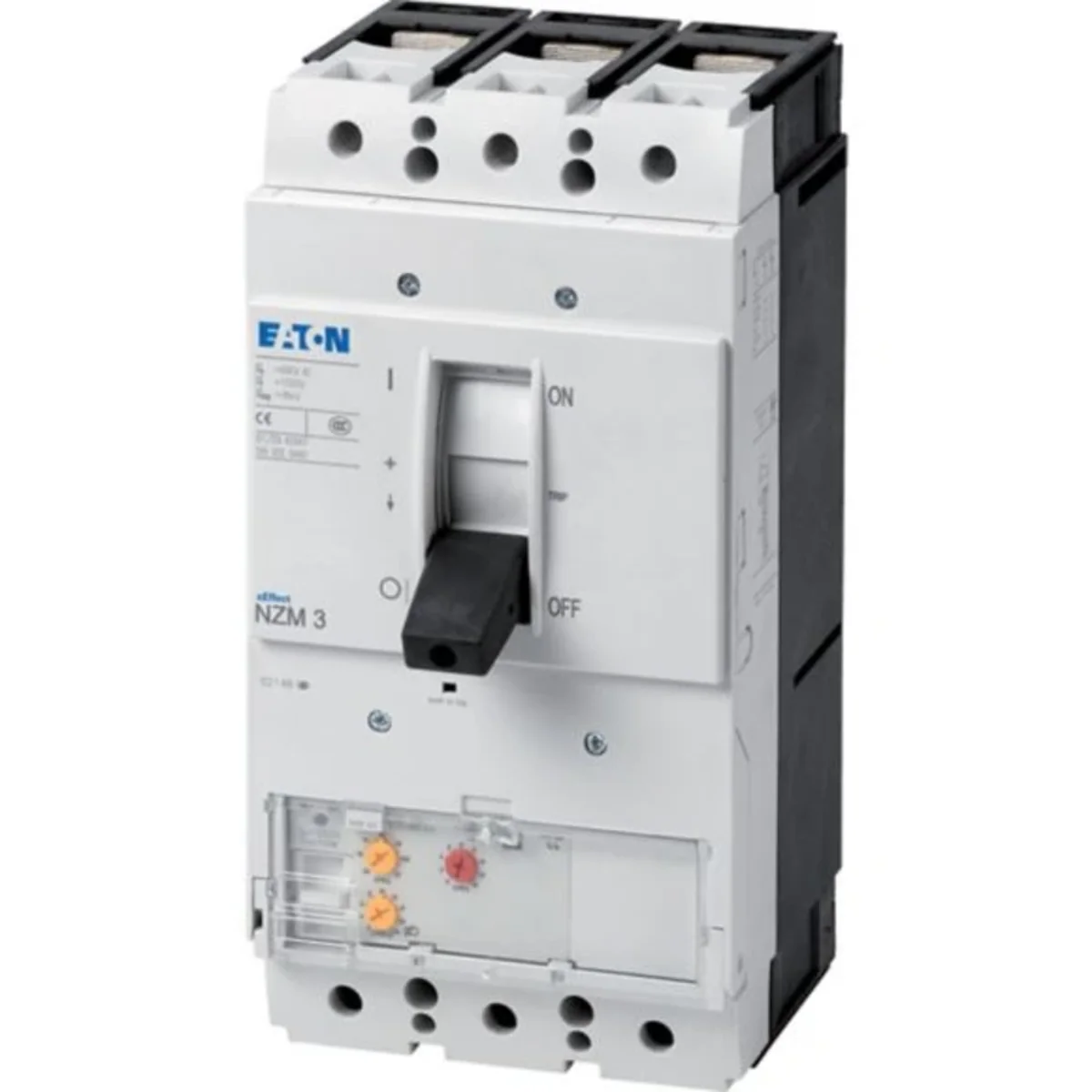

3-pole circuit breaker, 350A, NZMH3-ME350 265790

local index:
ALP300MOEL
Catalog No:
265790
EAN code:
4015082657901
Manufacturer: EATON
Number of poles: 3
Rated current [A]: 350
Overload release [A]: 175-350
Price:
2379,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

3-pole power switch 350A

Technical data

  • Number of poles
    3
  • Overload release [A]
    175-350
  • Switching capacity [kA]
    150
  • Rated current [A]
    350
  • Short-circuit release [A]
    2014-02-14 00:00:00

Other technical data

  • Overload release current setting
    175 ... 350 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Electronic
  • Rated permanent current Iu
    350 A
  • Rated operation power at AC-3, 400 V
    200 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    140 mm
  • Adjustment range undelayed short-circuit release
    350 ... 4900 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    110 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    130 kA
  • Height
    275 mm
  • Depth
    166 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 7,218
Volume (m3) 0,006
Width (m) 0,140
Length (m) 0,166
Depth (m) 0,275
