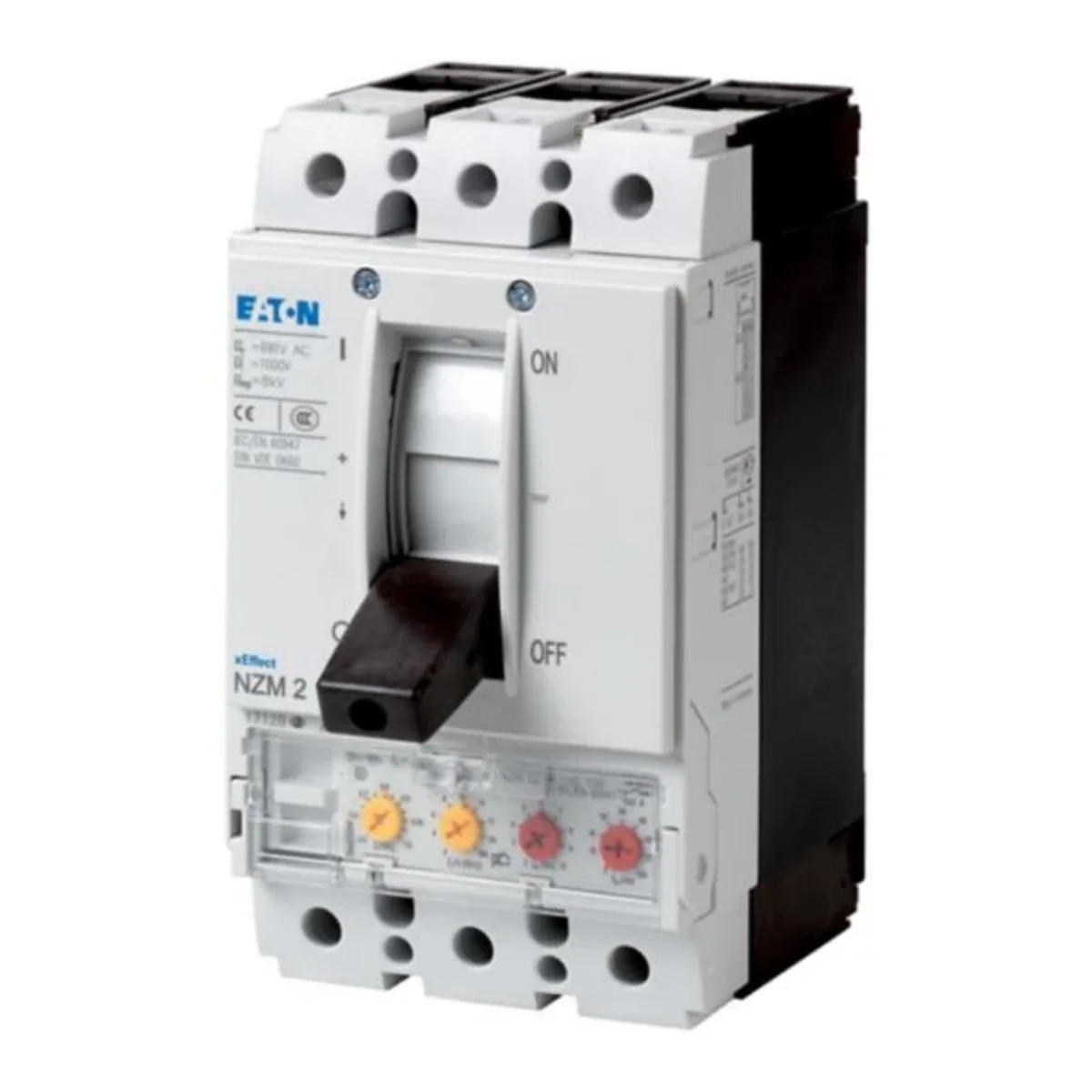

3-pole circuit breaker, 160A, NZMN2-VE160 259123
Lokaler Index:
ALP115MOEL
Katalognummer:
259123
EAN-Code:
4015082591236
3 401
59
zł
gross / stk.
(inklusive MwSt 23%)
Verfügbarkeit
Dostępne bis zu 2 Wochen
Auf Bestellung
Dostępność w oddziale
Wählen Sie Ihren Großhändler
Wählen Sie
Menge stk.
(mehrere:
1
)
Produktbeschreibung
3-pole power switch 160A BG2 selective
Technische Daten
-
Number of poles3
-
Overload release [A]80-160
-
Rated current [A]160
-
Switching capacity [kA]50
Weitere technische Daten
-
Rated permanent current Iu160 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50 kA
-
Adjustment range short-term delayed short-circuit release160 ... 1600 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage690 ... 690 V
-
Overload release current setting80 ... 160 A
-
Adjustment range undelayed short-circuit release1920 ... 1920 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
Hersteller-Details
-
HerstellerEaton Electric Sp. z o.o.
-
Adresse80-299 Gdańsk Galaktyczna 30 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Skrzynia | Skrzynia |
| Menge | 1 stk. | 1 stk. |
| Gewicht (kg) | 2,554 | 2,554 |
| Volumen (m3) | 0,003 | 0,003 |
| Breite (m) | 0,105 | 0,105 |
| Länge (m) | 0,149 | 0,149 |
| Tiefe (m) | 0,184 | 0,184 |
