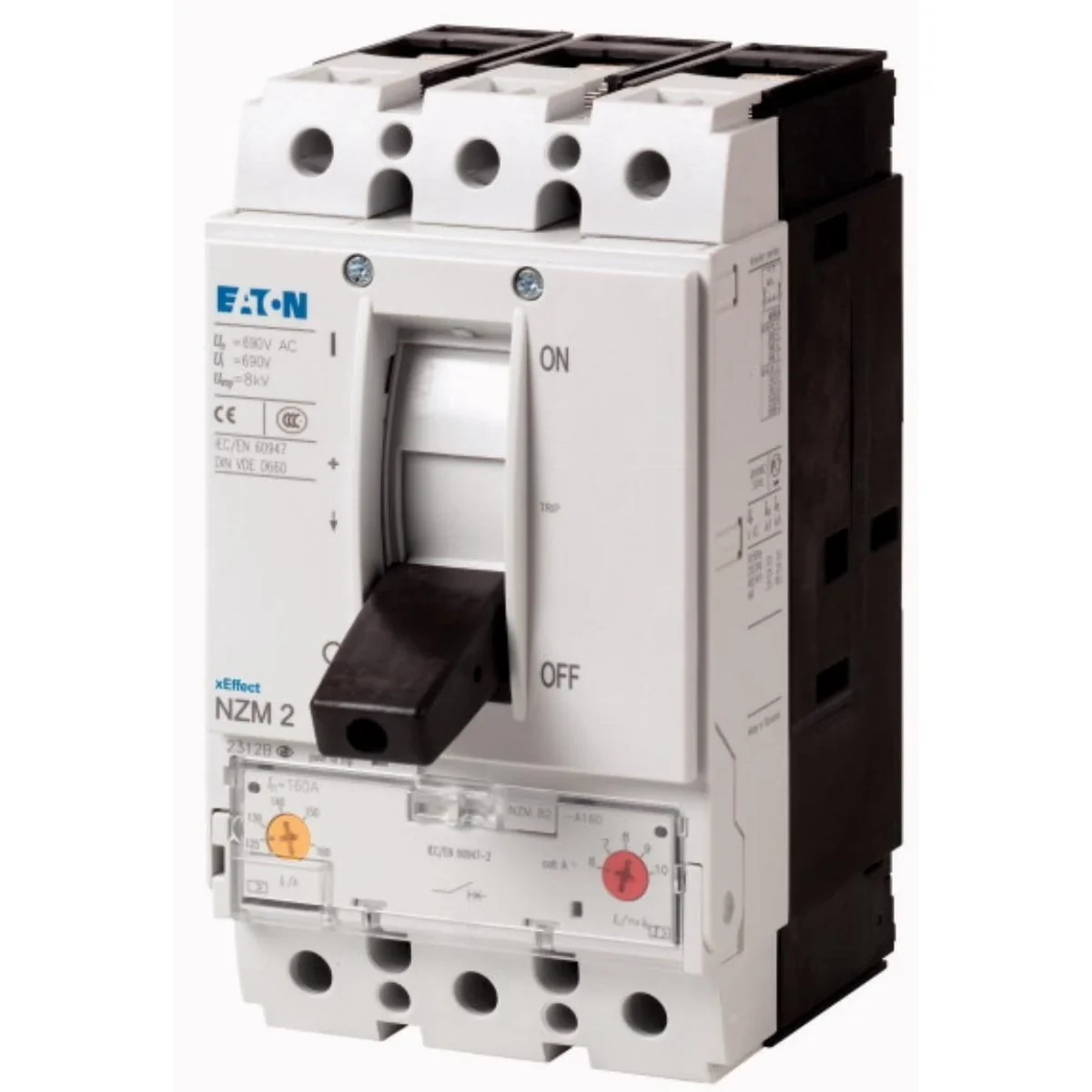

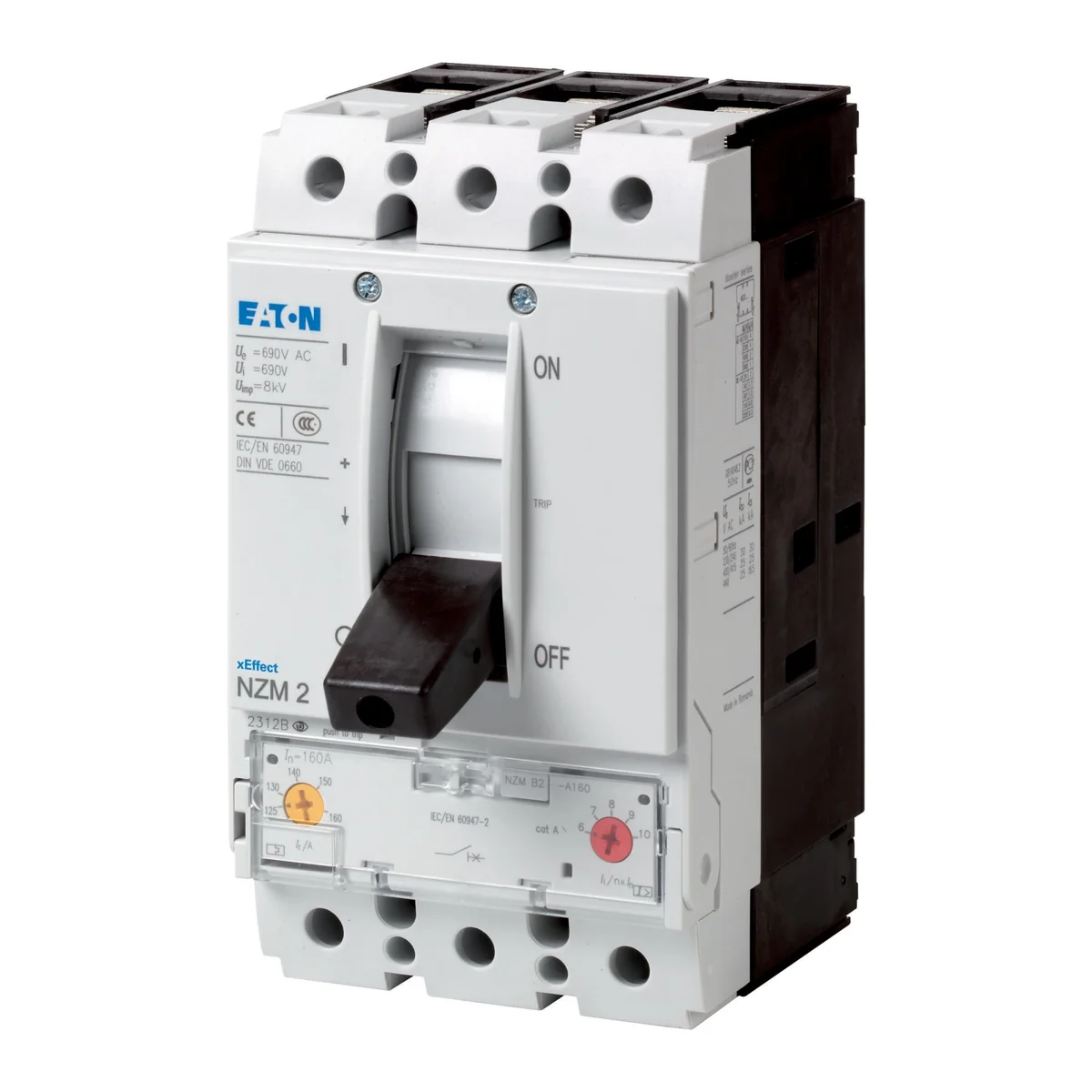

3-pole circuit breaker, 160A, NZMN2-A160 259092

local index:
ALI077MOEL
Catalog No:
259092
EAN code:
4015082590925
Manufacturer: EATON
Instantaneous short-circuit release [A]: 960-1600
Number of poles: 3
Rated current [A]: 160
Price:
785,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

• Switching capacity 50 kA
• Adjustable overload releases
• Adjustable instantaneous short-circuit releases
• In the electronic version of the VE trip unit, adjustable delayed short-circuit releases
• Communication and diagnostics as standard on the electronic versions of the VE and AE trip units!
• The full offer is available in the "Industrial Equipment" catalog
• Possibility of adding a shunt or undervoltage release

Technical data

  • Instantaneous short-circuit release [A]
    960-1600
  • Rated current [A]
    160
  • Number of poles
    3
  • Overload release [A]
    125-160

Other technical data

  • Rated permanent current Iu
    160 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    Yes
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    125 ... 160 A
  • Adjustment range undelayed short-circuit release
    960 ... 1600 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    3
  • Type of control element
    Rocker lever
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,418
Volume (m3) 0,003
Width (m) 0,105
Length (m) 0,149
Depth (m) 0,184
