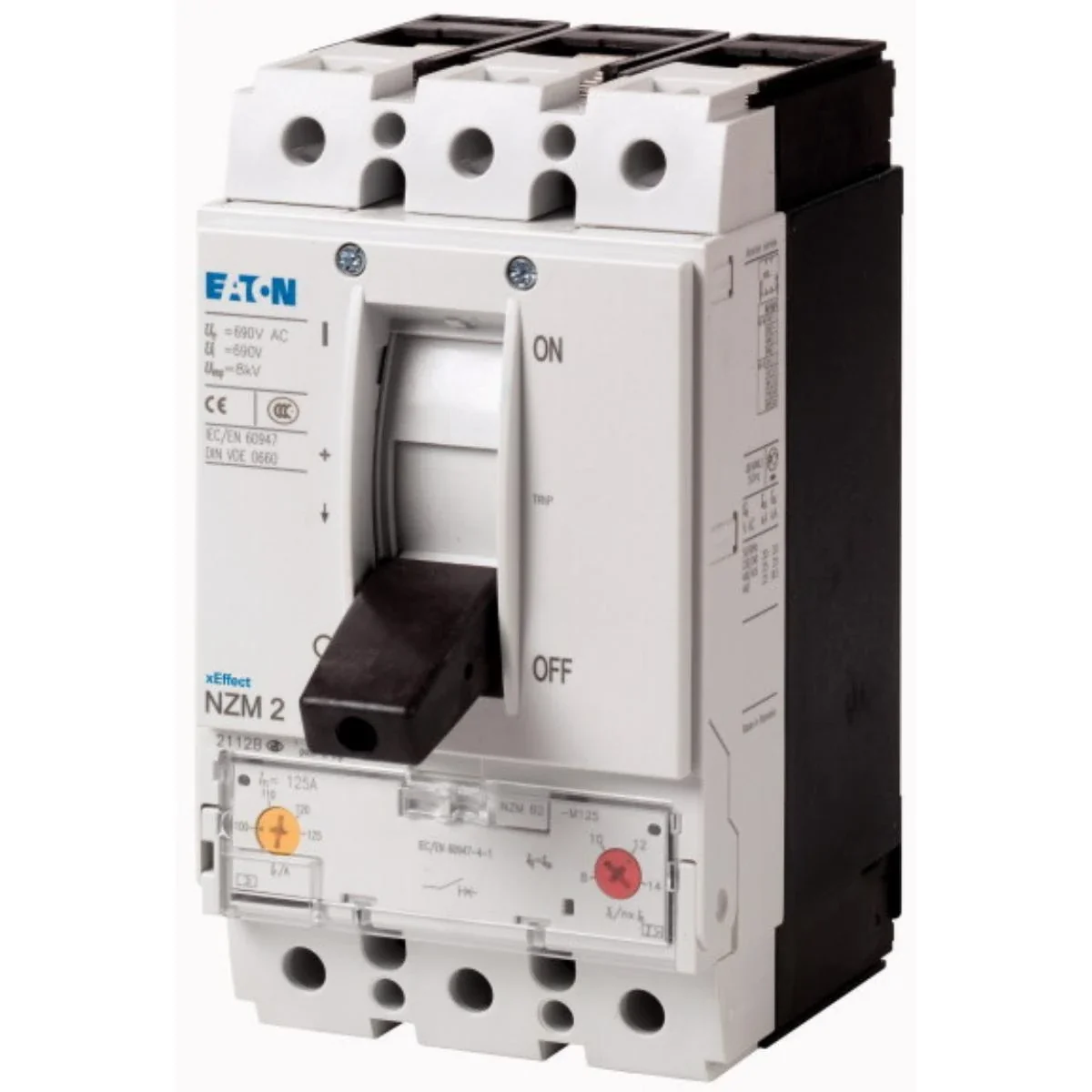

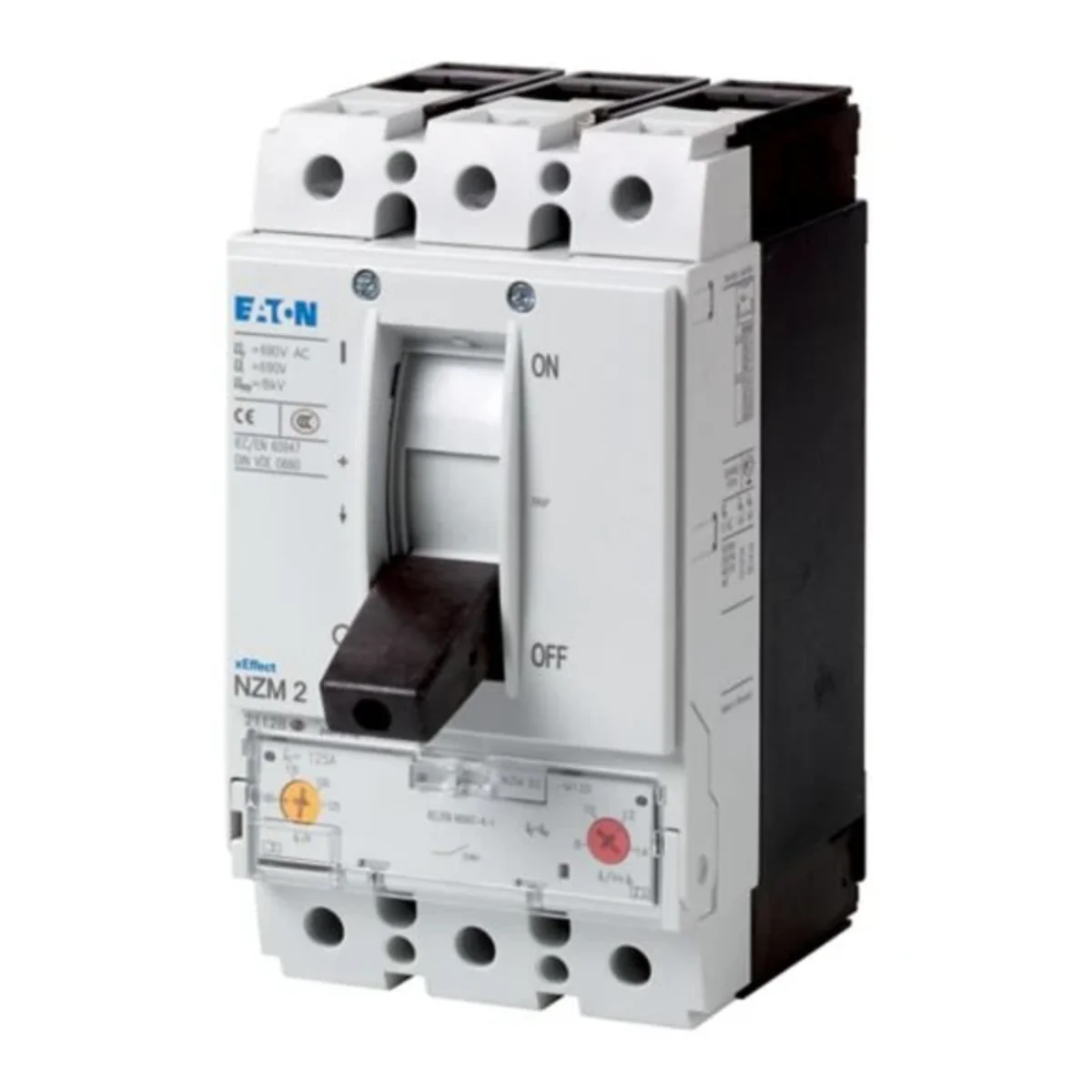

3-pole circuit breaker, 160A, NZMB2-M160 265716

local index:
ALI019MOEL
Catalog No:
265716
EAN code:
4015082657161
Manufacturer: EATON
Number of poles: 3
Rated current [A]: 160
Price:
841,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power switch 3-pole 160A motor protection

Technical data

  • Number of poles
    3
  • Rated current [A]
    160

Other technical data

  • Overload release current setting
    125 ... 160 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    160 A
  • Rated operation power at AC-3, 400 V
    90 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    105 mm
  • Adjustment range undelayed short-circuit release
    1280 ... 2240 A
  • Phase failure sensitive
    No
  • Rated operating voltage
    440 ... 440 V
  • Rated operation power at AC-3, 230 V
    45 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    18.5 kA
  • Height
    184 mm
  • Depth
    149 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,424
Volume (m3) 0,003
Width (m) 0,105
Length (m) 0,149
Depth (m) 0,184
