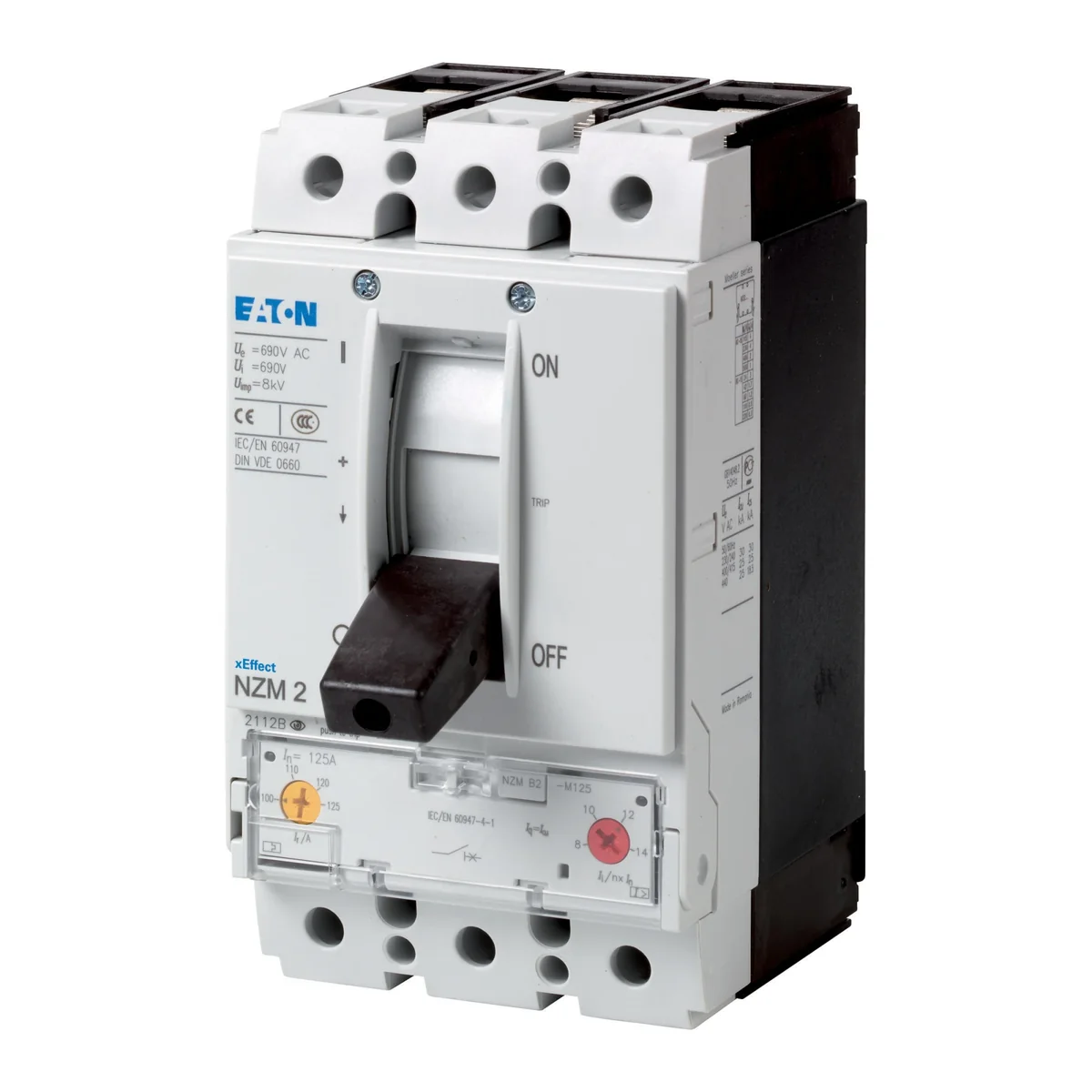

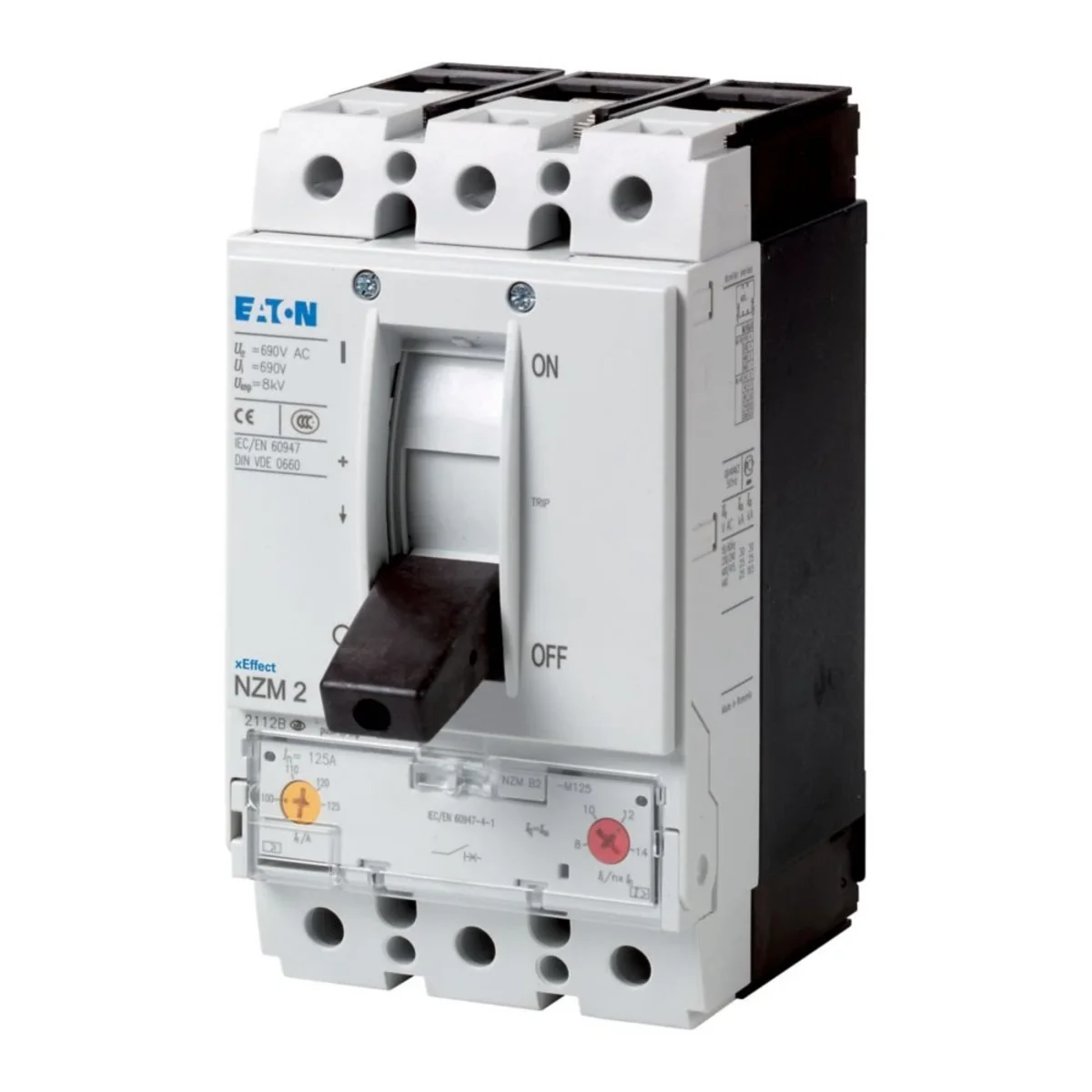

3-pole circuit breaker, 125A, NZMB2-M125 265715

local index:
ALI021MOEL
Catalog No:
265715
EAN code:
4015082657154
Manufacturer: EATON
Number of poles: 3
Rated current [A]: 125
Price:
651,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power switch 3-pole 125A motor protection

Technical data

  • Number of poles
    3
  • Rated current [A]
    125

Other technical data

  • Overload release current setting
    100 ... 125 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    125 A
  • Rated operation power at AC-3, 400 V
    55 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    105 mm
  • Adjustment range undelayed short-circuit release
    1000 ... 1750 A
  • Phase failure sensitive
    No
  • Rated operating voltage
    440 ... 440 V
  • Rated operation power at AC-3, 230 V
    37 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    18.5 kA
  • Height
    184 mm
  • Depth
    149 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,448
Volume (m3) 0,003
Width (m) 0,105
Length (m) 0,149
Depth (m) 0,184
