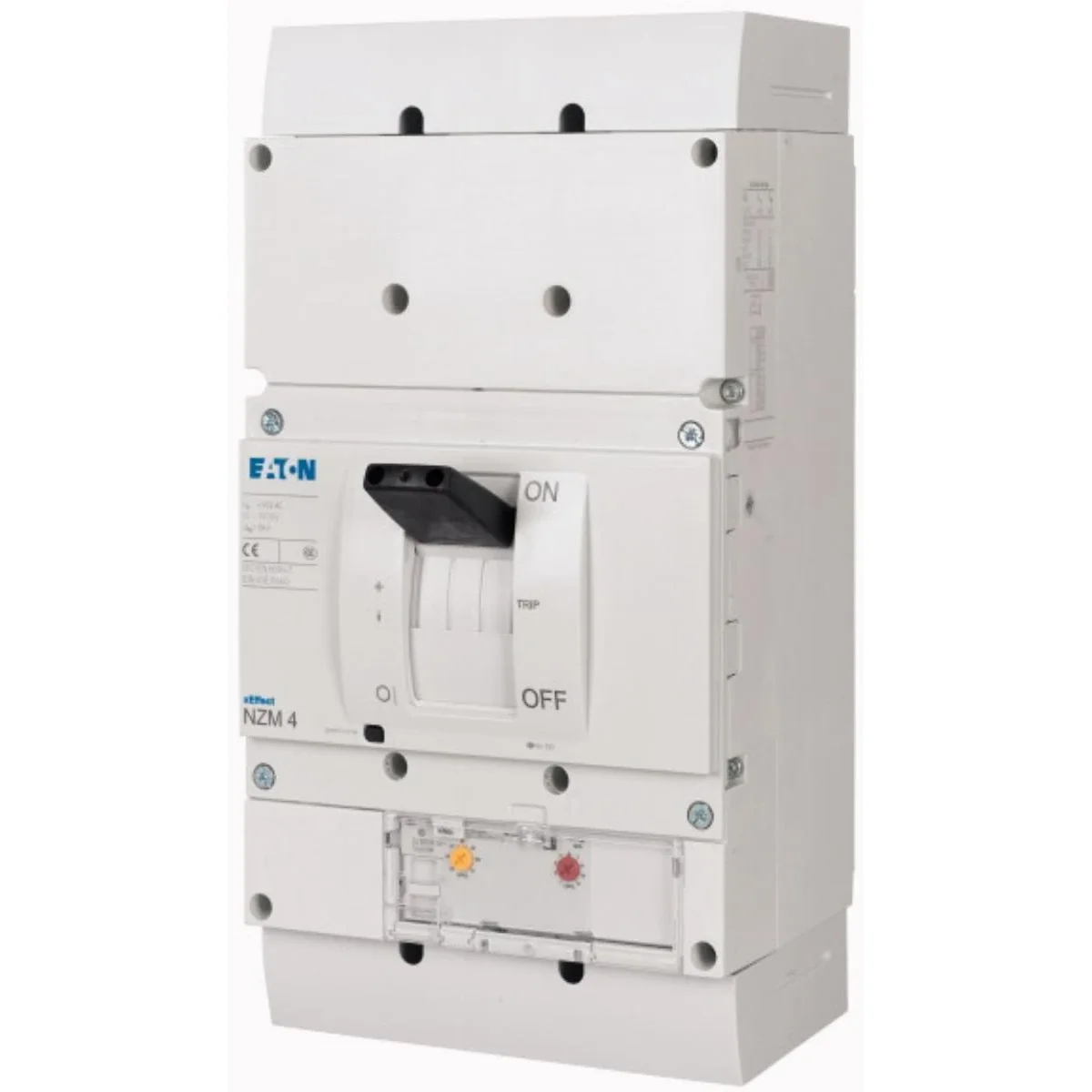

3-pole circuit breaker, 1250A, NZMN4-AE1250 265761

local index:
ALM067MOEL
Catalog No:
265761
EAN code:
4015082657611
Manufacturer: EATON
Instantaneous short-circuit release [A]: 2500-15000
Number of poles: 3
Rated current [A]: 1250
Price:
4341,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

• Breaking capacity 50 kA
• Adjustable overload releases
• Adjustable instantaneous short-circuit releases
• In the electronic version of the VE release, adjustable delayed short-circuit releases
• Communication and diagnostics as standard on the electronic versions of the VE and AE trip units!
• The full offer is available in the "Industrial Equipment" catalog
• Possibility of adding a shunt or undervoltage release

Technical data

  • Instantaneous short-circuit release [A]
    2500-15000
  • Rated current [A]
    1250
  • Switching capacity [kA]
    50
  • Number of poles
    3
  • Overload release [A]
    630-1250

Other technical data

  • Rated permanent current Iu
    1250 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    37 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    no
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    no
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    no
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    yes
  • Motor drive optional
    yes
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    630 ... 1250 A
  • Adjustment range undelayed short-circuit release
    2500 ... 15000 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    no
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    3
  • Type of control element
    Rocker lever
  • Motor drive integrated
    no
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 19,978
Volume (m3) 0,017
Width (m) 0,210
Length (m) 0,401
Depth (m) 0,207
