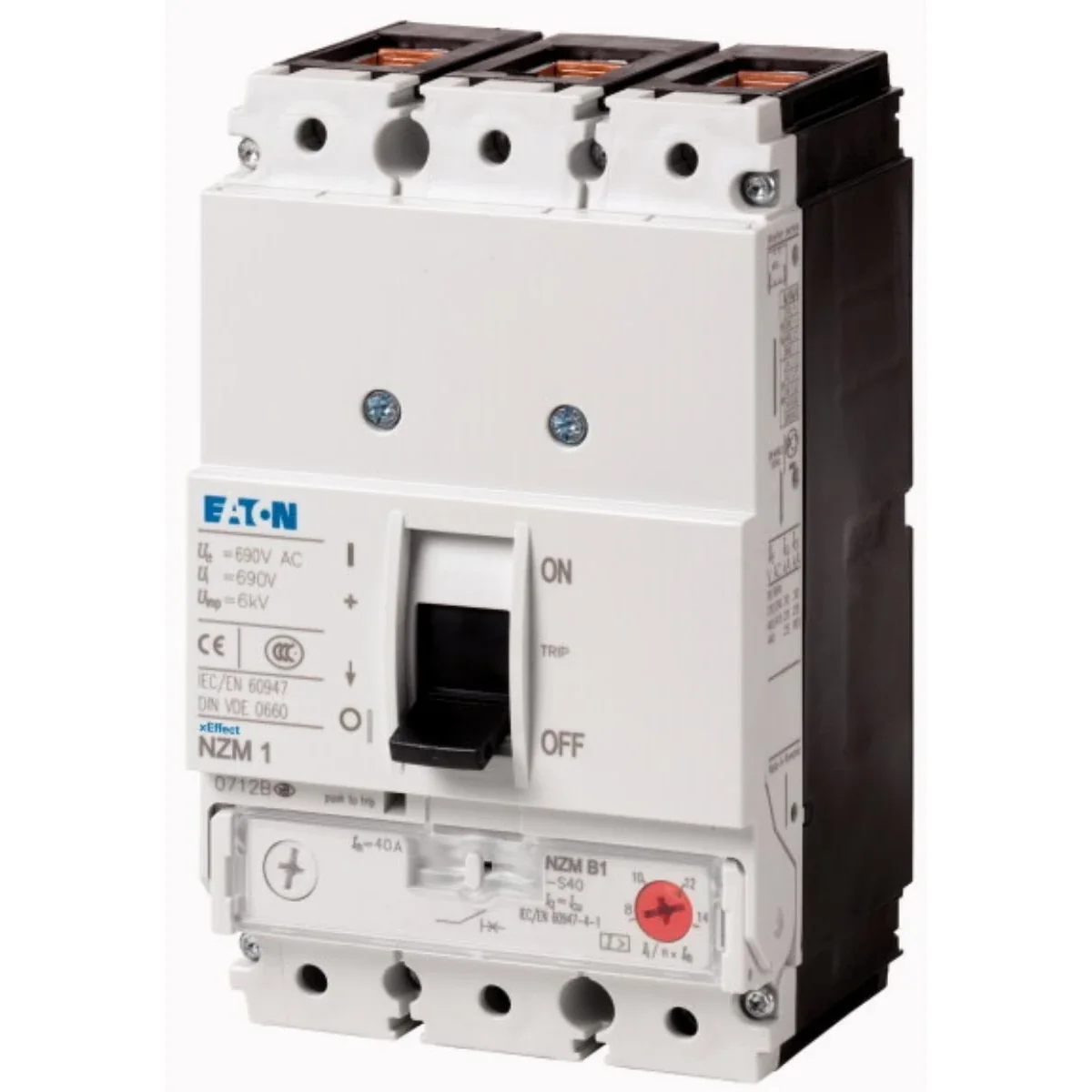

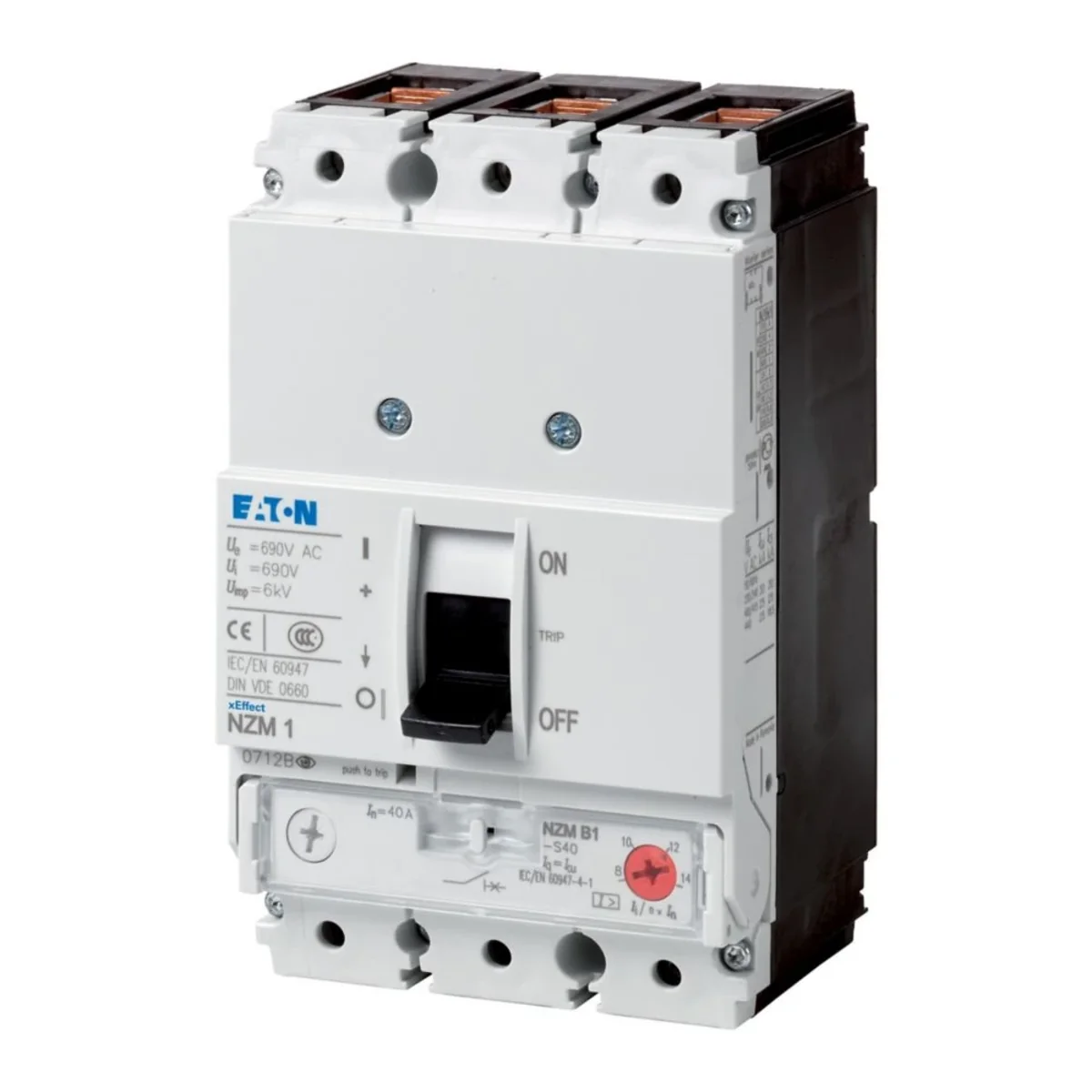

3-pole circuit breaker, 100A, NZMN1-S100 265735
local index:
ALI160MOEL
Catalog No:
265735
EAN code:
4015082657352
Price:
444,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power circuit breaker 3-pole 100A
Technical data
-
Number of poles3
-
Rated current [A]100
Other technical data
-
Overload release current setting0 ... 0 A
-
With thermal overload protectionNo
-
Switch off techniqueMagnetic
-
Rated permanent current Iu100 A
-
Rated operation power at AC-3, 400 V45 kW
-
Type of control elementRocker lever
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width90 mm
-
Adjustment range undelayed short-circuit release8 ... 44328 A
-
Phase failure sensitiveNo
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V30 kW
-
Type of electrical connection of main circuitOther
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC35 kA
-
Height145 mm
-
Depth88 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 1,020 | 1,062 |
| Volume (m3) | 0,001 | 0,001 |
| Width (m) | 0,090 | 0,090 |
| Length (m) | 0,088 | 0,088 |
| Depth (m) | 0,145 | 0,145 |
