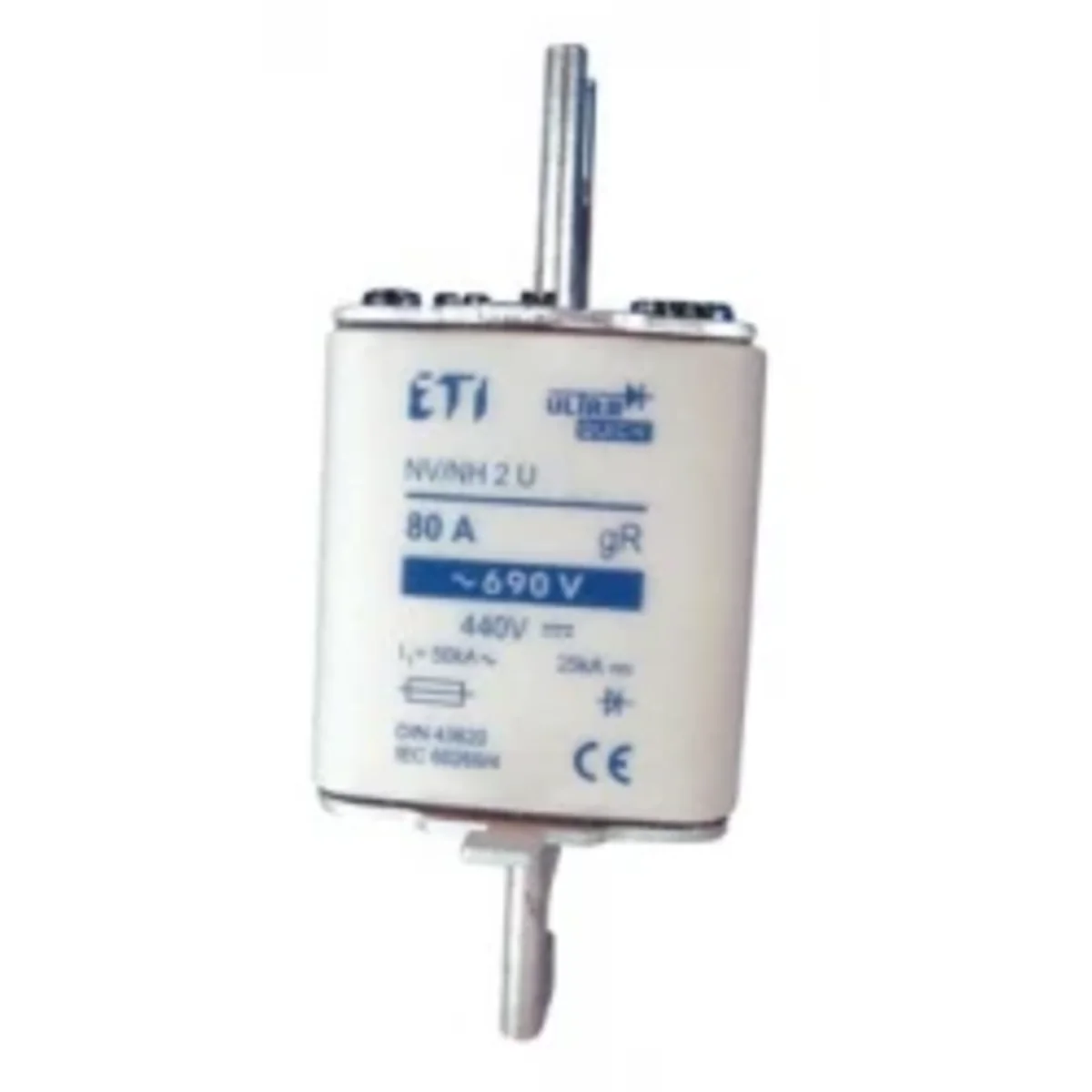

Inserto fusibile ultrarapido S1UQ U/110/160A/690 004333113
local index:
ABM015ETIP
Catalog number:
004333113
EAN code:
3838895733607
Price:
247,62 zł
lordo / pcs.
(including VAT 23%)
550,27 zł lordo/kg.
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

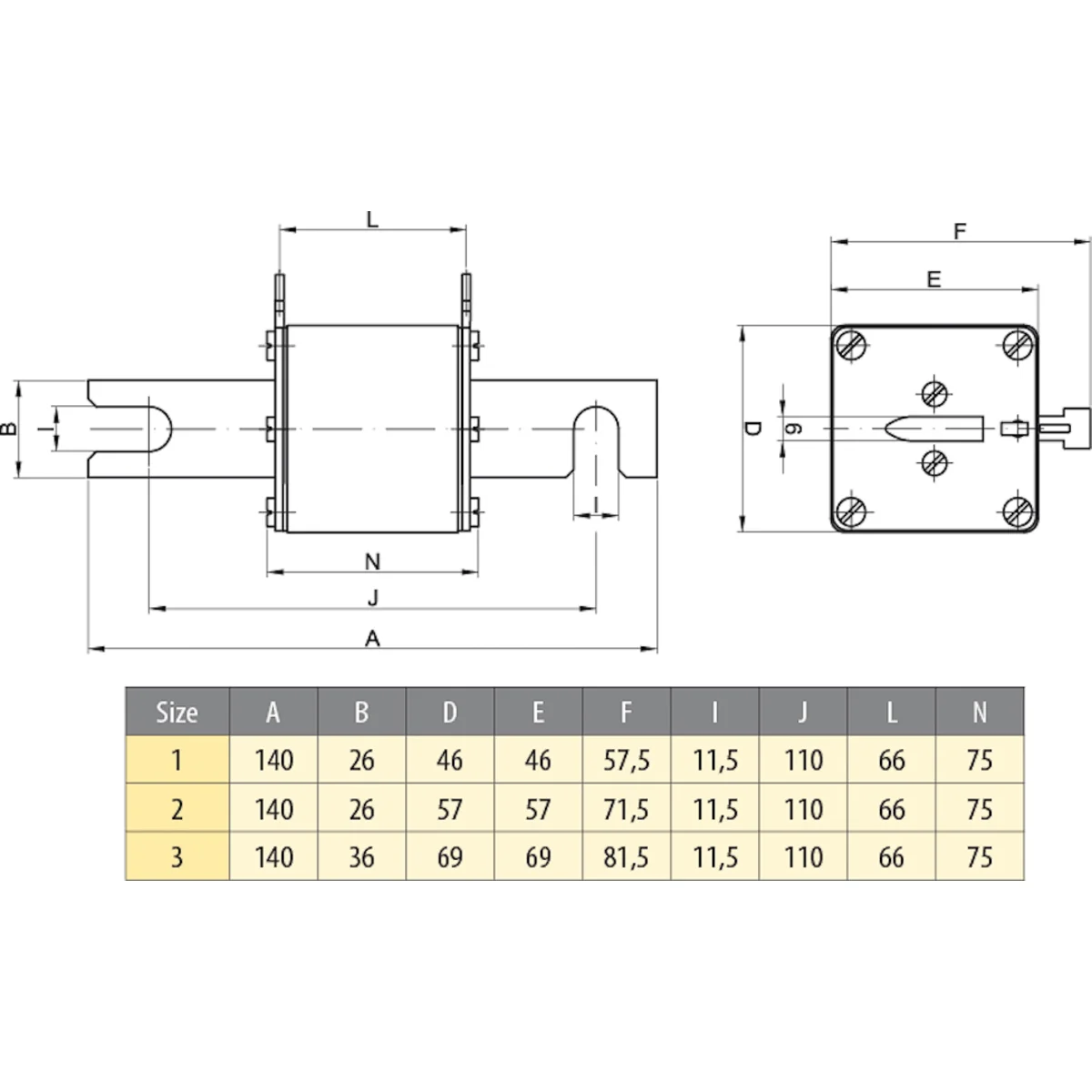

Gli inserti di tipo S110, dimensioni 1 e 2, sono destinati al montaggio direttamente sulle sbarre o nella base S1.3-1/80-111 con viti
Technical data
-
CaratteristicaaR
-
Corrente nominale [A]160
-
Peso [g]450
-
Tensione nominale CA [V]690
-
Tensione nominale CC [V]440
-
Perdita di potenza [W]44
-
Capacità di cortocircuito nominale [kA]~50/-25
-
PKWIU27.12.21.0
Other technical data
-
Prąd znamionowy160 A
-
Rodzaj wskaźnika zadziałaniaWskaźnik górny
-
CharakterystykaaR (ochrona zwarciowa elementów półprzewodnikowych)
Manufacturer details
-
ManufacturerETI Polam Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18 Polska
-
E-mail
Bulk packaging
| A kind of package | Pudełko | Pudełko | Pudełko | Pudełko |
| Quantity | 3 pcs. | 24 pcs. | 3 pcs. | 24 pcs. |
| Weight (kg) | 1,260 | 10,080 | 1,260 | 10,080 |
| Volume (m3) | 0,001 | 0,017 | 0,001 | 0,017 |
| Width (m) | 0,065 | 0,230 | 0,065 | 0,230 |
| Length (m) | 0,139 | 0,250 | 0,139 | 0,250 |
| Depth (m) | 0,150 | 0,290 | 0,150 | 0,290 |
