Câbles et fils de connexion
Connecteurs
Connecteurs sans vis

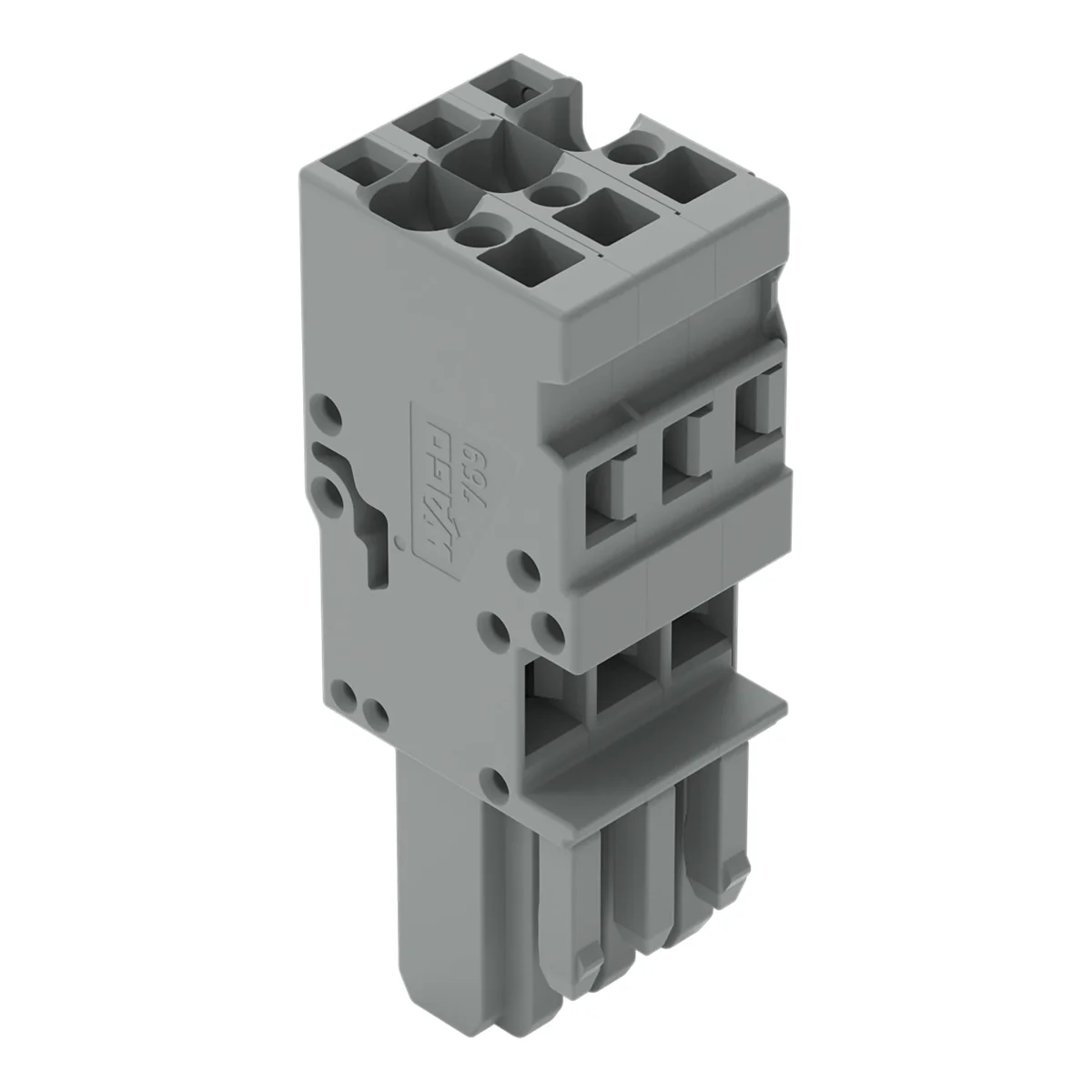

X-COM prise grise 1 fil 3 pôles 769-103
local index:
TEB104WAGO
Catalog number:
769-103
EAN code:
4044918471343
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Longueur de dénudage [mm]:
0.33
Profondeur [mm]:
18.3
Couleur:
Gris
See full description
Price:
710,92 zł
brut / pkg.
(including VAT 23%)
14,22 zł brut/pcs.
up to 2 weeks
On request
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Product description
X-COM prise grise 1 fil 3 pôles
Expand full description ▼
Technical data
Longueur de dénudage [mm]
0.33
Couleur
Gris
Nombre total de potentiels
3
Tension nominale EN [V]
500
Le plan de description
Descriptif sur le côté
Calibre [AWG]
28
Série
769
Largeur [mm]
15
Pièces dans le paquet
50
Poids [g]
9.7
Couleur précise
Gris
Longueur minimale de dénudage [mm]
8

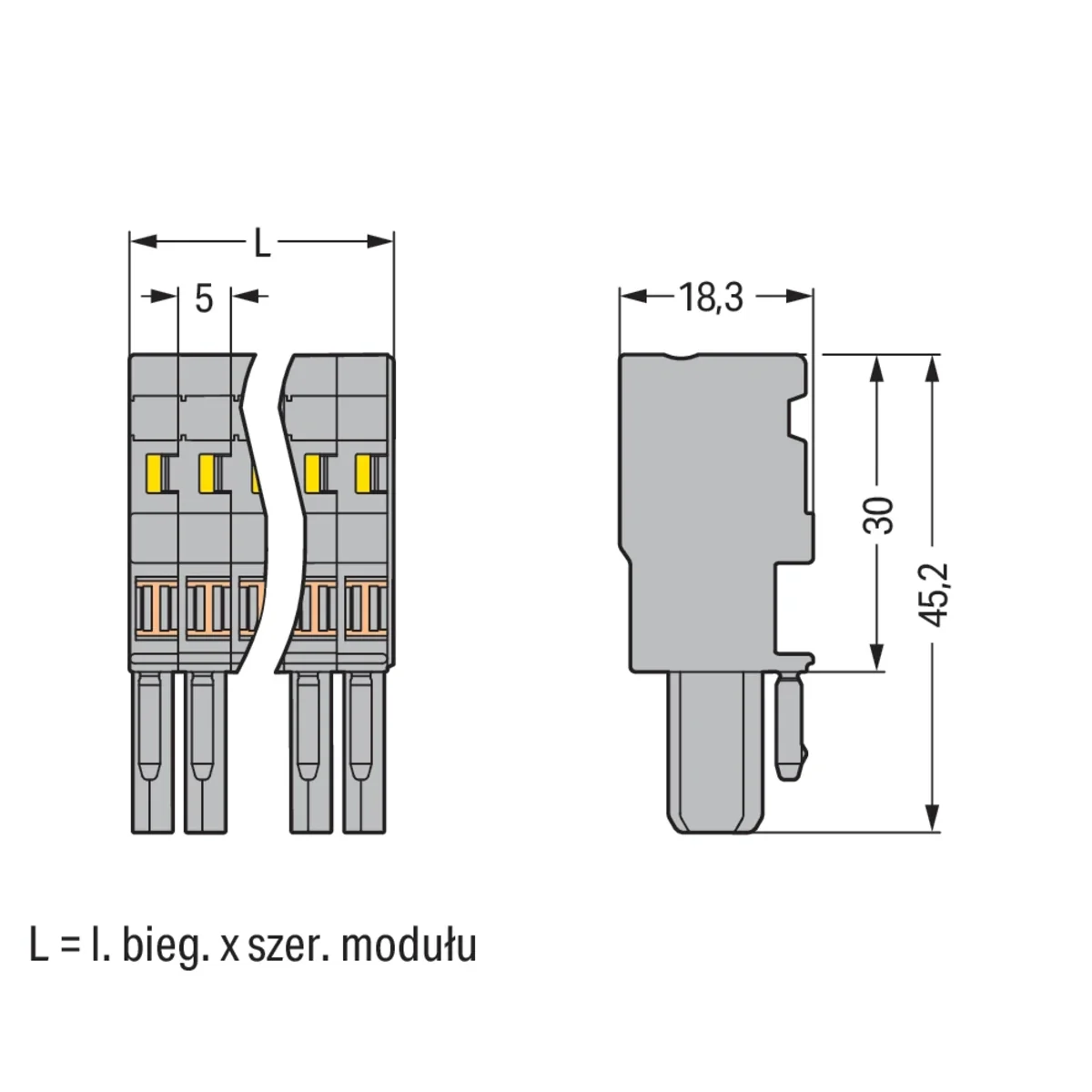

Profondeur [mm]
18.3
Nombre de pôles
3
Surtension [kV]
6
Charge calorifique [MJ]
0.161
Courant nominal [A]
32
Type de câblage
Câblage avant
Degré de pollution
3
Largeur de module [mm]
5
Technique de connexion filaire
CAGE CLAMP®
Hauteur [mm]
45.2
Longueur de dénudage maximale [mm]
9
Nombre de connecteurs
3
Other technical data
Wykonanie przeciwwybuchowe Ex-e - potwierdzone
Non
Przekrój przyłączanego przewodu linkowego z końcówką tulejkową
0.25 ... 2.5 mm²
Przekrój przyłączanego przewodu wielożyłowego
0.08 ... 4 mm²
Napięcie znamionowe
500 V
Rodzaj połączenia elektrycznego 2
Zacisk sprężynowy
Liczba biegunów
3
Sposób montażu
Inne
Zakres temperatur pracy
105 ... 105 °C
Szerokość / rozmiar rastra
15 mm
Długość
18.3 mm
Kolor
Szary
Przekrój przyłączanego przewodu linkowego bez końcówki tulejkowej
0.08 ... 4 mm²
Przekrój przyłączanego przewodu jednodrutowego
0.08 ... 4 mm²
Prąd znamionowy In
32 A
Rodzaj połączenia elektrycznego 1
Zacisk sprężynowy
Pozycja połączenia
Z góry / u góry
Liczba zacisków na biegun
1
Materiał elementu izolacyjnego
Tworzywo termoplastyczne
Klasa palności materiału izolacyjnego zgodna z UL94
V0
Wysokość przy najniższym sposobie montażu
45.2 mm
Wymagana płytka zamykająca
Non
Przezroczysty
Non
Expand Technical Data ▼
Manufacturer details
Manufacturer
WAGO GmbH & Co. KG
Address
32423 Minden Hansastraße 27 Niemcy
E-mail
wago.elwag@wago.com
Bulk packaging
A kind of package
Karton
Quantity
1 pkg.
Weight (kg)
0,564
Volume (m3)
0,003
Width (m)
0,134
Length (m)
0,285
Depth (m)
0,072
