One side powered heating mat 150W/m2 TYPE: MOJ-150 MTC10000356-WUN

Product description

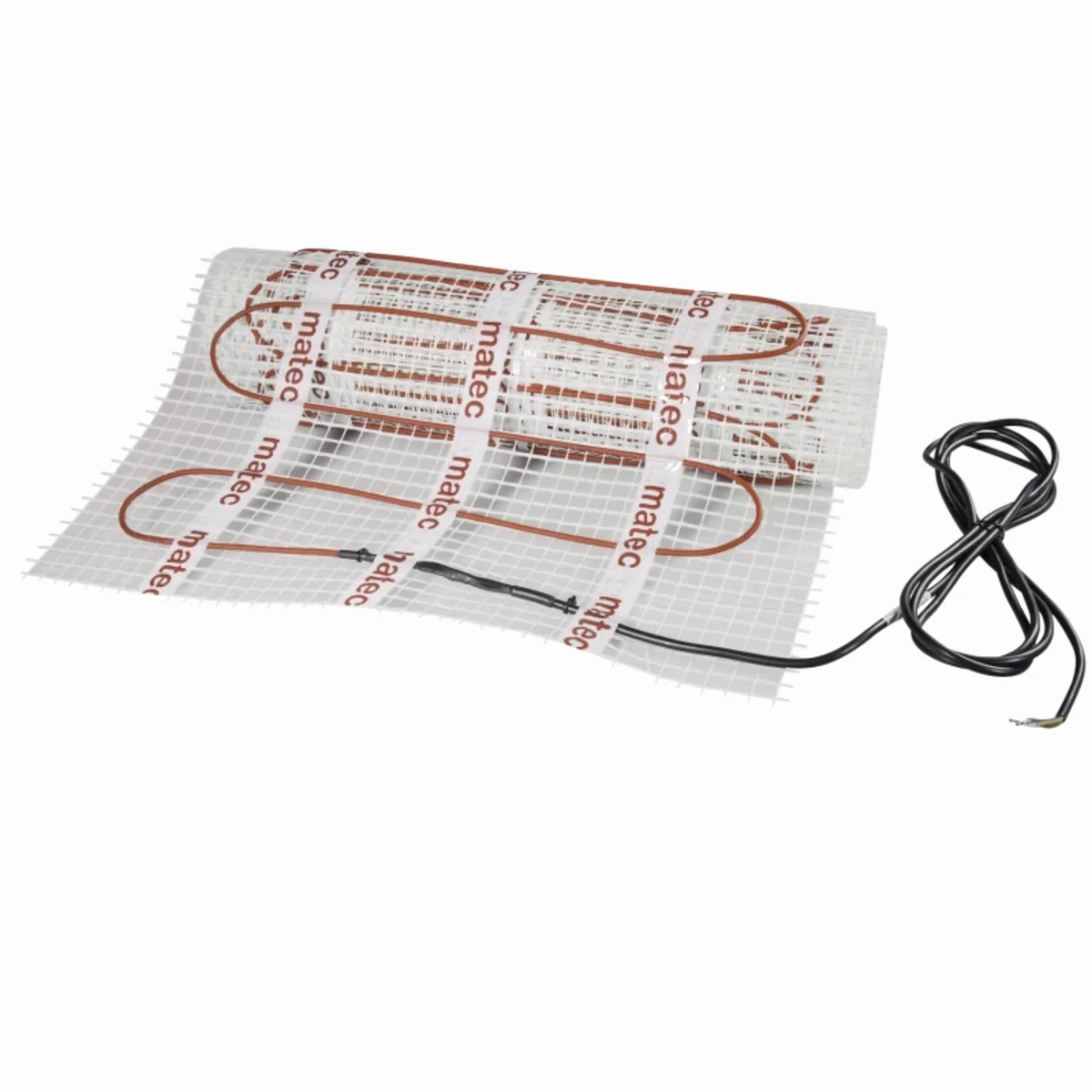

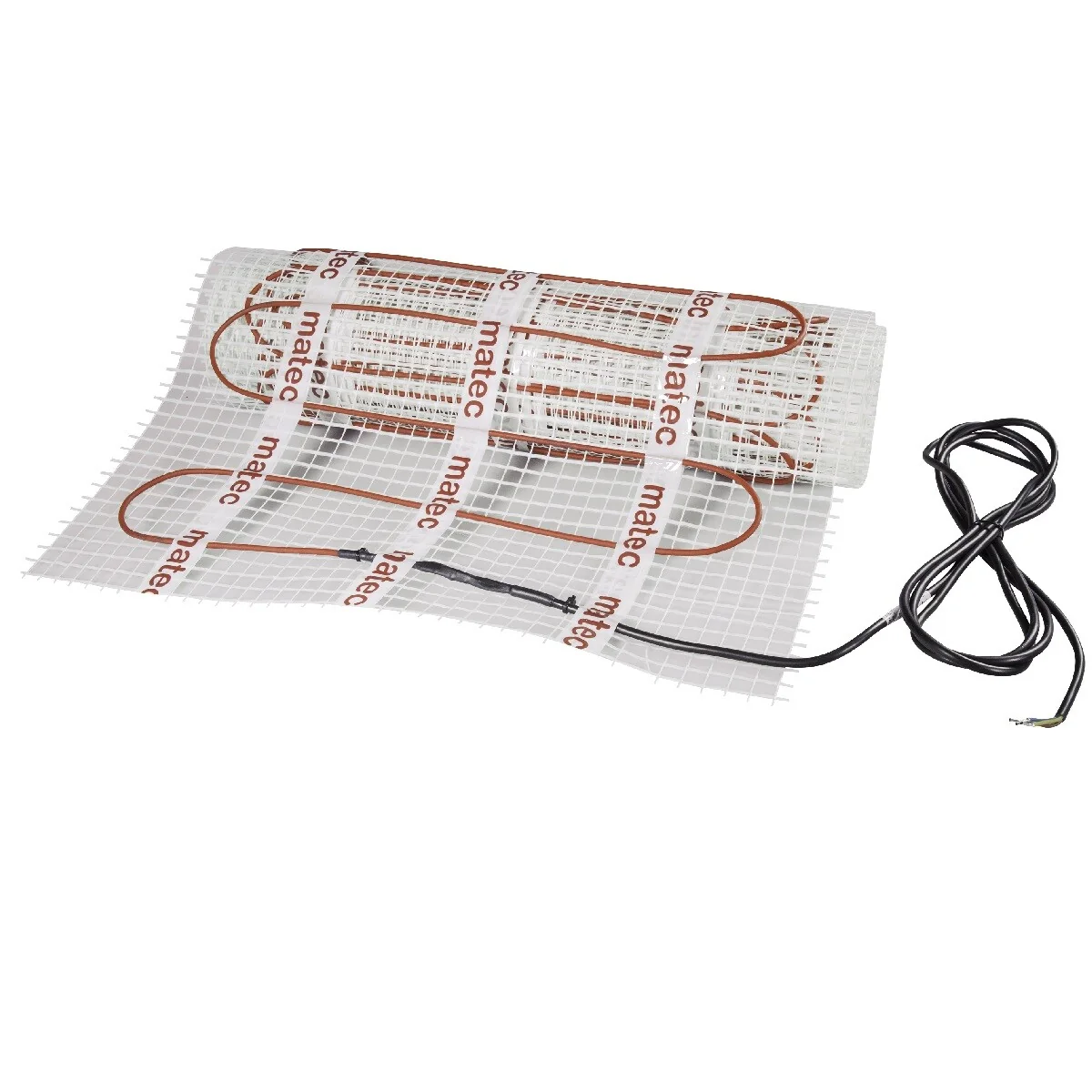

Heating mat for thin concrete screeds with an area of 15 m2. Used under surfaces made of ceramic and stone tiles, etc. One-sided power supply with H03VV-F 3G 0.75mm2 cable. Heating with a two-wire constant resistance cable. The set includes a protective conduit for the probe cable and a deepened electrical box fi 60.

Functional features of the product

• Electric thin-layer underfloor heating
• Optimum heating power 150 W/m2
• Electric box fi 60 for the temperature controller included
• Protective conduit for the probe cable included

Technical data

• Width 500mm
• Application Thin-layer floor heating
• Power< span class="productDataValue normalLabel"> 150 W/m²
• Thickness 4.48mm
• Self-adhesive No
• Suitable for wet roomsYes
• Surface 15 m²
• Length 30,000mm
• With support gridYes< /li>
• Heating cable fixing Glued
• Number of cold leads1
< li class="col-sm-3 item">Length of cold leads 3000 mm< li class="col-sm-3 item">Connection voltage 230V
• Connection power 2250/2250 W
• With floor temperature sensorNo
