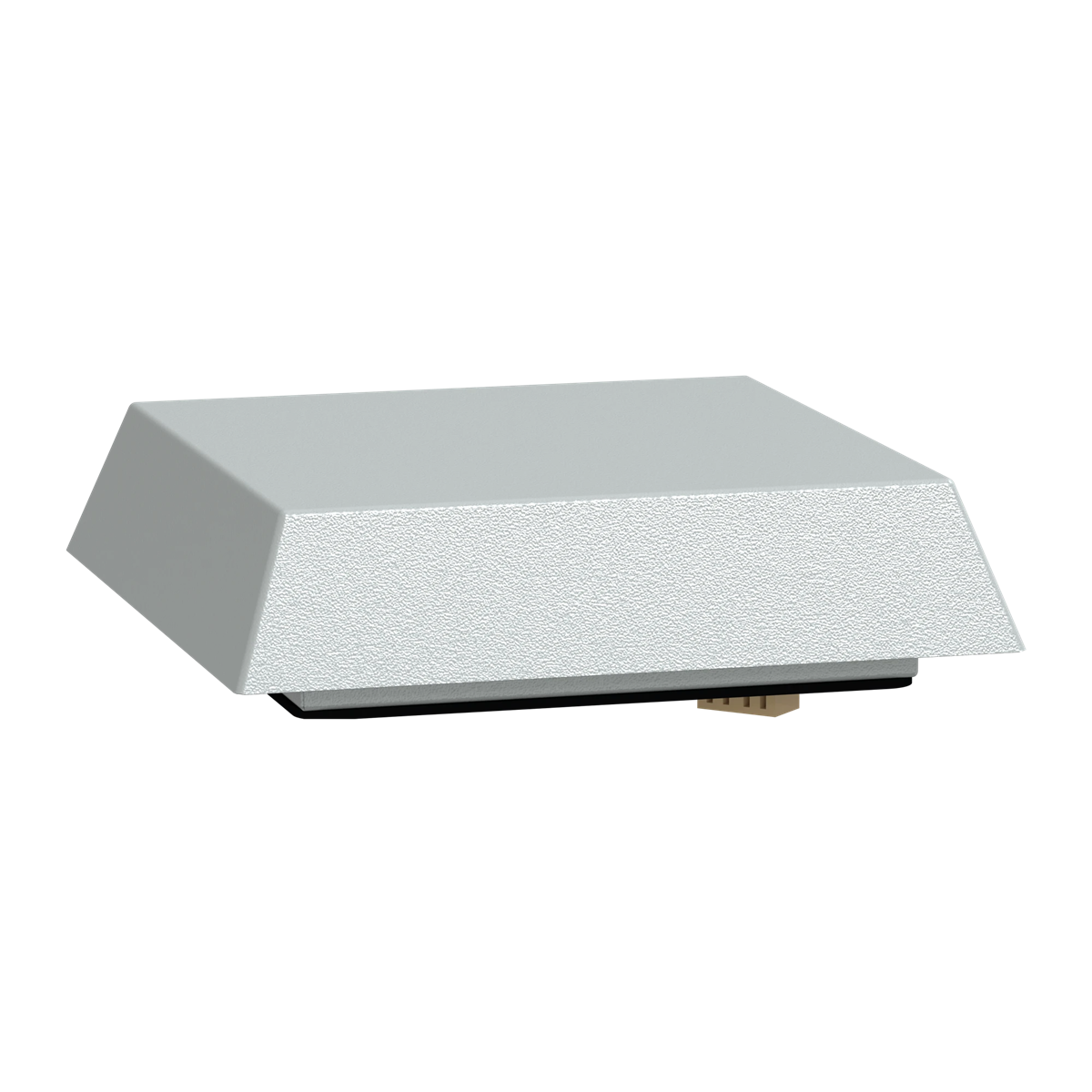

ClimaSys Roof fan with roof 575 m3/h 230VAC NSYCVF575M230MF

local index:
GTG013SCHN
Catalog No:
NSYCVF575M230MF
EAN code:
3606480151392
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 340
Width [mm]: 340
Height [mm]: 96
Price:
686,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

ClimaSys Roof fan with roof 575 m3/h 230VAC

Technical data

  • Depth [mm]
    340
  • Height [mm]
    96
  • Width [mm]
    340
  • PKWIU
    27.12.40.0

Other technical data

  • Number of fans
    1
  • Operating voltage AC 60 Hz
    230 ... 230 V
  • Suitable for wall built-in
    No
  • Air circulator
    Yes
  • With filter
    No
  • Volume flow, freeblowing
    575 m³/h
  • EMC-version
    No
  • Degree of protection (IP)
    IP54
  • Mounting method
    Screw mounting
  • Colour
    Grey
  • Width
    340 mm
  • Depth
    340 mm
  • Operating voltage AC 50 Hz
    230 ... 230 V
  • Voltage type
    AC
  • Built as slide-in ventilator
    Yes
  • Roof ventilator
    Yes
  • With protective cover
    No
  • Rated power
    85 W
  • Noise emission
    64 dB(A)
  • Degree of protection (NEMA)
    13
  • Suitable for 19 inch rack mounting
    No
  • RAL-number
    7035
  • Height
    96 mm
