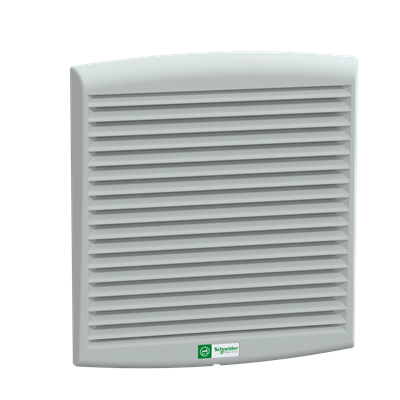

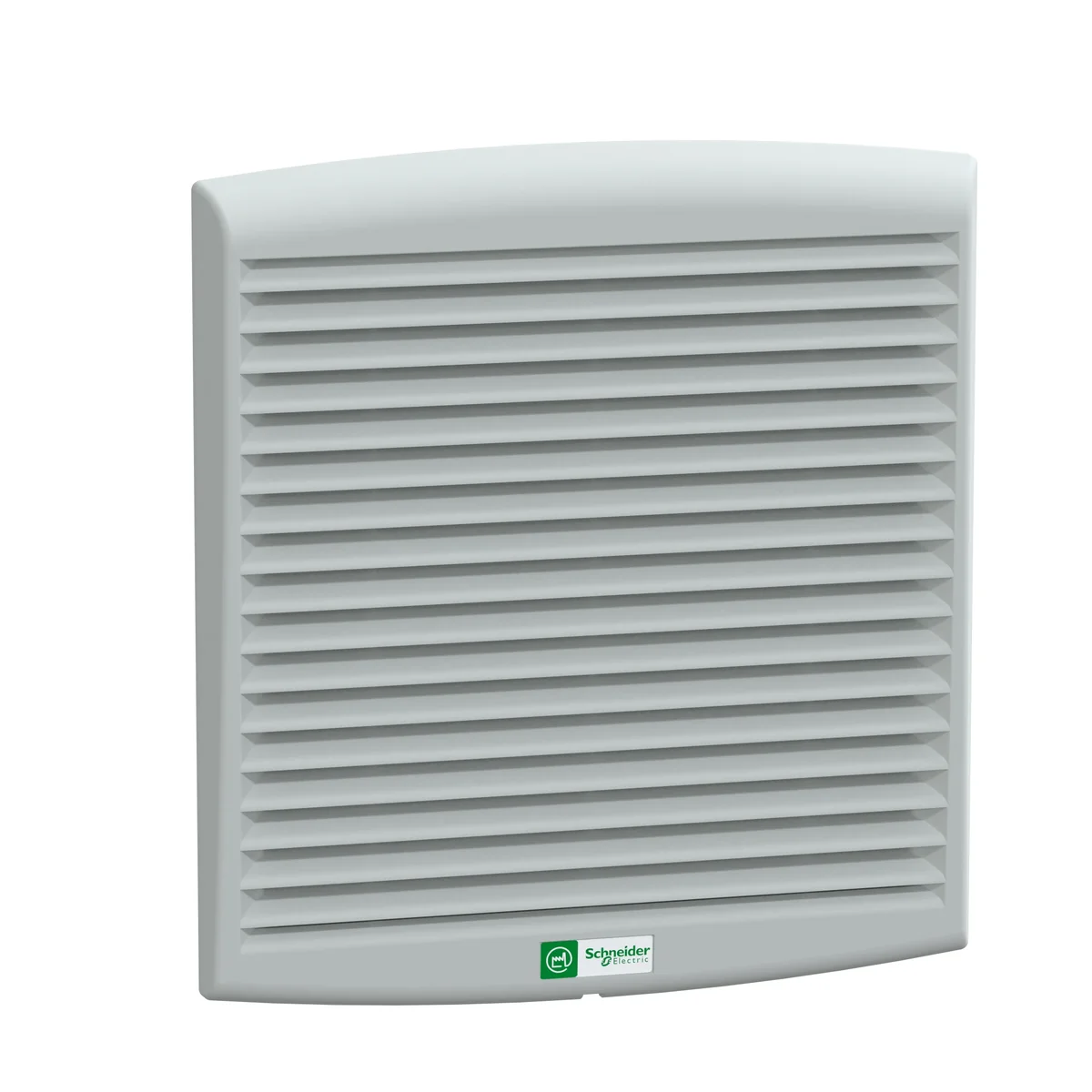

ClimaSys Fan 300m3/h 230V 50-60Hz IP54 NSYCVF300M230PF

local index:
GTG001SCHN
Catalog No:
NSYCVF300M230PF
EAN code:
3606480151286
Manufacturer: SCHNEIDER ELECTRIC
Power [W]: 36
Rated current [A]: 0.17
Price:
306,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

ClimaSys Fan 300m3/h 230V 50-60Hz IP54

Technical data

  • Power [W]
    36
  • PKWIU
    27.12.40.0
  • Rated current [A]
    0.17

Other technical data

  • Number of fans
    1
  • Operating voltage AC 60 Hz
    230 ... 230 V
  • Suitable for wall built-in
    No
  • Air circulator
    Yes
  • With filter
    Yes
  • Volume flow, freeblowing
    300 m³/h
  • EMC-version
    No
  • Degree of protection (IP)
    IP54
  • Mounting method
    Snap mounting
  • Colour
    Grey
  • Width
    248 mm
  • Depth
    116 mm
  • Operating voltage AC 50 Hz
    230 ... 230 V
  • Voltage type
    AC
  • Built as slide-in ventilator
    Yes
  • Roof ventilator
    No
  • With protective cover
    Yes
  • Rated power
    36 W
  • Noise emission
    56 dB(A)
  • Degree of protection (NEMA)
    13
  • Suitable for 19 inch rack mounting
    No
  • RAL-number
    7035
  • Height
    268 mm
