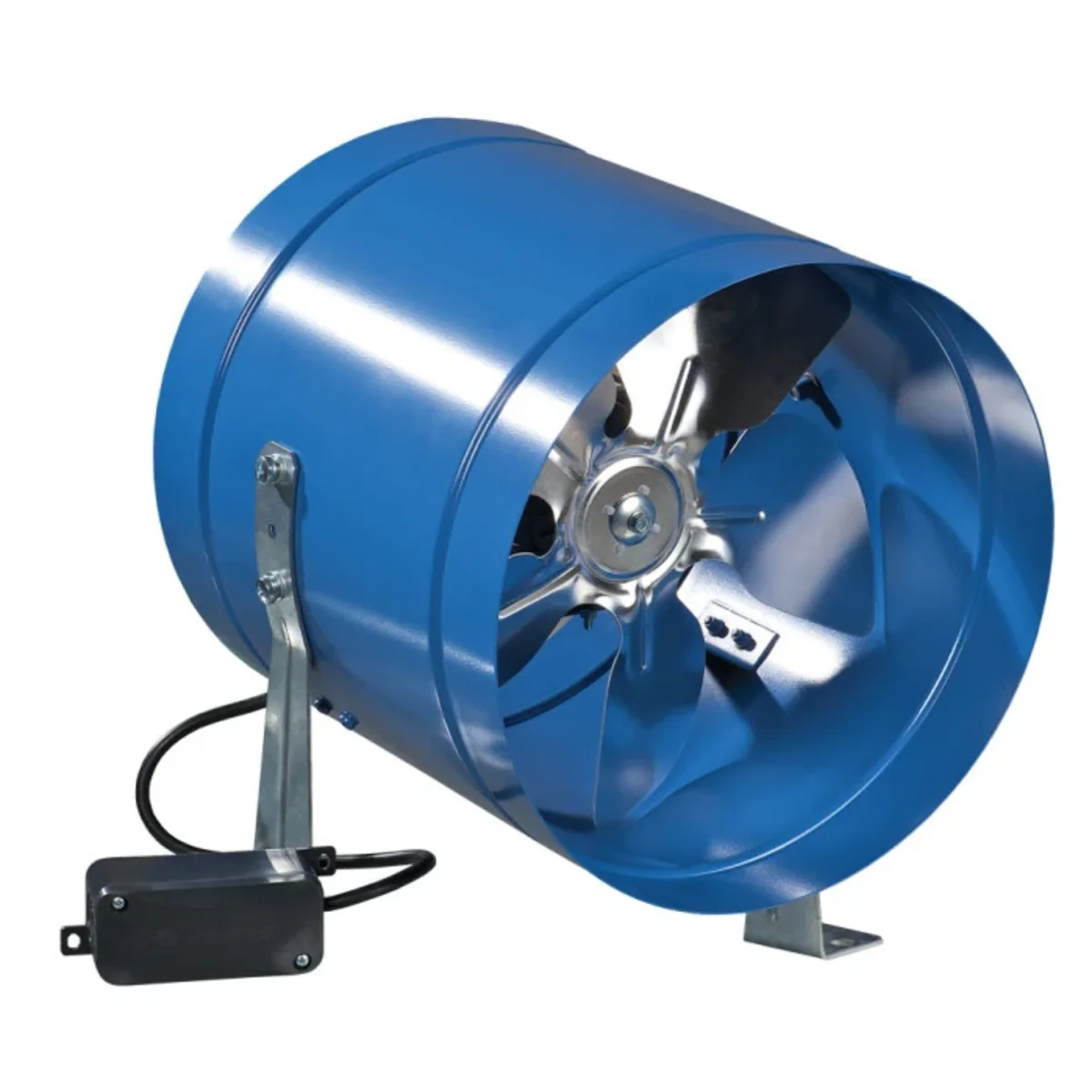

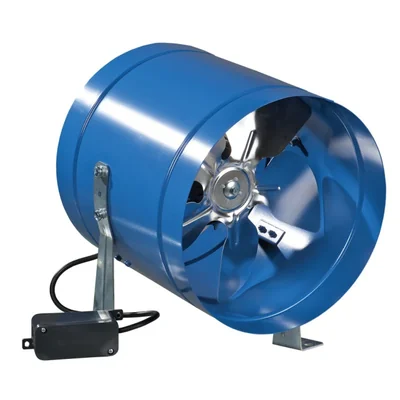

Axial fan 200mm galvanized in a duct casing VKOMZ200

The Vents axial fan of the VKOMz series is used to support gravitational ventilation, for direct air ejection through the wall of the building. It can be installed in storage, commercial, utility and public use rooms. Thanks to the ball bearings used in it, the fan is adapted to work both horizontally and vertically.

Application
Exhaust and supply-exhaust ventilation systems for various types of rooms, where high efficiency is required with relatively low system resistance.

Construction
The VKOMz fan housing is made of galvanized steel sheet. The vane impeller is made of aluminum sheet.

Engine
The fans use single-phase motors with an external rotor, with built-in thermal protection with automatic restart. In order to achieve a longer fan life, the motors use ball bearings. Motor protection class: IP 24.

Speed adjustment
Capacity regulation can be done in a smooth way (thyristor regulator) as well as stepwise (transformer regulator). Fans can be connected to one controller in pairs, provided that the available power and current do not exceed the nominal parameters of the controller.

Assembly
In the ventilation system or directly on the wall using the mounting brackets included with the fan. The electrical connection and installation should be made in accordance with the instructions and the electrical diagram contained in the DTR.
