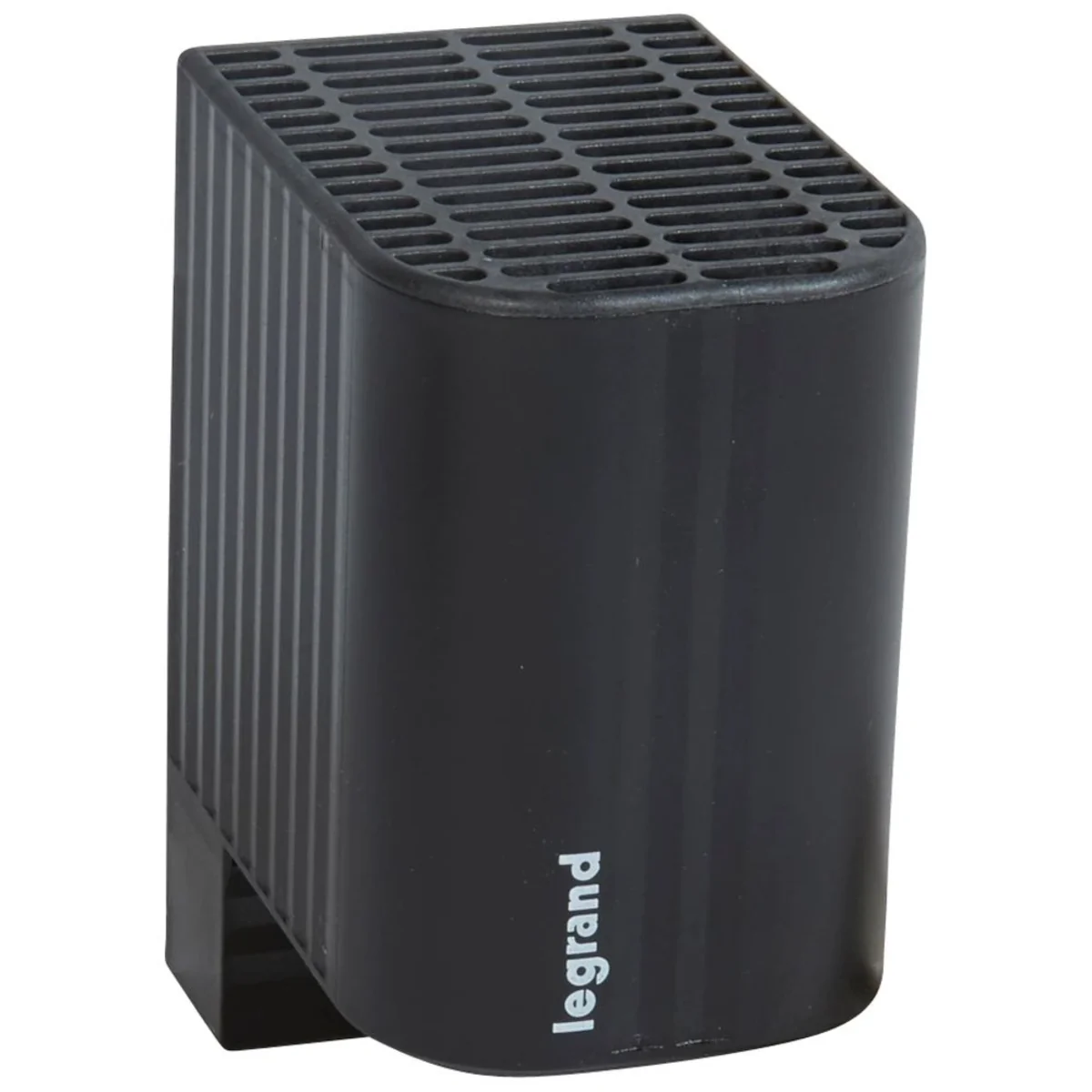

Altis heating resistor 50W 035307

local index:
GGI001LEGR
Catalog number:
035307
EAN code:
3245060353070
Manufacturer: LEGRAND
Power [W]: 50
Maximum current [A]: 2.5
Level of security: IP20
Price:
874,36 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Convector heatersheat the room under the influence of the flow and exchange of air masses. This flow can be forced (warm air can be blown out) or natural - gravitational. Convector heaters can be powered by electricity (resistance heaters) or hot water (central heating installation).

Resistance (resistance) heaters are heated by the heat generated on the resistor under the influence of current flow. This brings many advantages - ease of transport, power regulation (usually incremental) and quiet operation allow for convenient use of such heaters indoors. Resistance heaters are most often also equipped with an automatic shutdown system in the event of overheating.


  • They protect against condensation inside the cabinet


  • PTC - self-regulation and limitation of the temperature of the heating surface below 85°C

  • Mounting on the TH 35 bracket


  • Aluminum heat sink with plastic coating UL 94 VO

Technical data

  • Power [W]
    50
  • Level of security
    IP20
  • Maximum current [A]
    2.5
  • PKWIU
    27.12.40.0

Other technical data

  • Rated power
    50 W
  • Operating voltage AC 60 Hz
    120 ... 240 V
  • Voltage type
    AC/DC
  • With room temperature controller
    No
  • Width
    60 mm
  • Depth
    90 mm
  • Operating voltage AC 50 Hz
    120 ... 240 V
  • Operating voltage DC
    120 ... 240 V
  • With fan
    No
  • Continuous heating power at 10 °C
    20 W
  • Height
    110 mm
  • Degree of protection (IP)
    IP20

Manufacturer details

  • Manufacturer
    Legrand Polska Sp. z o.o.
  • Address
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 1 pcs. 10 pcs. 200 pcs.
Weight (kg) 0,327 3,540 70,800
Volume (m3) 0,001 0,015 0,498
Width (m) 0,109 0,304 1,200
Length (m) 0,074 0,125 0,415
Depth (m) 0,144 0,395 1,000
