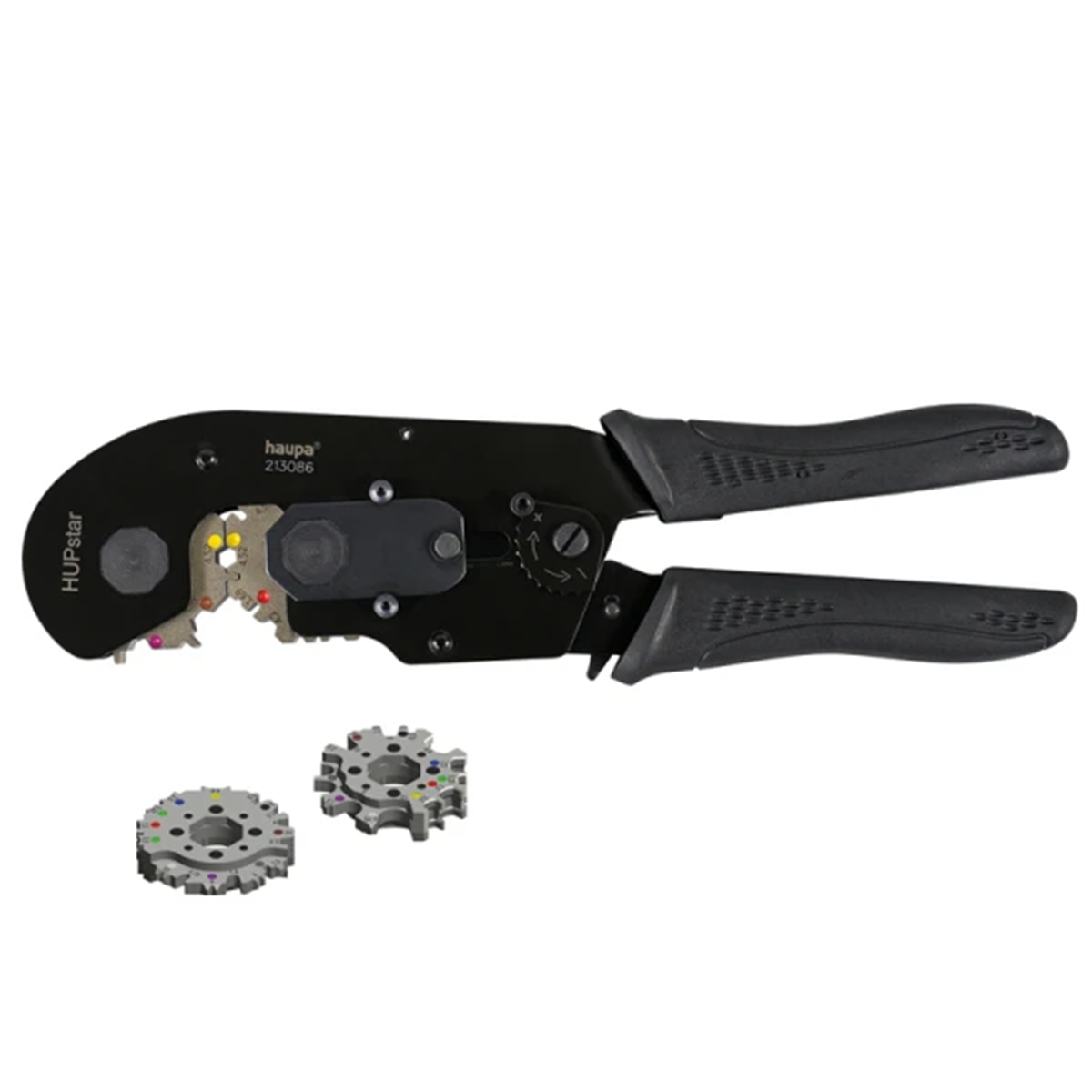

Universal press HUPstar rotary dies 0.25-10mm² for insulated ferrules and connectors 213086

local index:
NNP612HAUP
Catalog No:
213086
EAN code:
4011923576233
Manufacturer: HAUPA
Length [mm]: 230
Weight [g]: 650
cross section [mm²]: 0.25| 10
Price:
527,50 €
gross / pcs.
(including VAT 23%)
811,54 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Crimping pliersHUPstar:

  • crimping star 213086/E,
  • for thin-walled wire ferrules (0.5 / 0.5 75 / 1.5 / 2.5 / 4 / 6 / 10),
  • for insulated crimp cable terminals (0.1-0.25 / 0.5-1 / 1.5 / 2, 5 / 4 / 6),
  • for non-insulated crimp cable terminals (0.25 / 0.5 / 1 / 1.5 / 2.5 / 4 / 6 / 10),
  • < li> rotary precision die with parallel feed,
  • interchangeable dies.

Technical data

  • Length [mm]
    230
  • cross section [mm²]
    0.25 10
  • Weight [g]
    650

Other technical data

  • Suitable for
    Various applications
  • With locking device (for mechanical tools)
    Yes
  • Inserts exchangeable
    Yes
  • Compression shape
    Universal (exchangeable inserts)
  • Construction/operation
    Mechanical
  • With automatic return
    No

Manufacturer details

  • Manufacturer
    HAUPA GmbH
  • Address
    42857 Remscheid Lange Straße 40 Niemcy
