Smart SO-6 electro-hydraulic crimper 216801-1

local index:
NNE010HAUP
Catalog No:
216801-1
EAN code:
4011923608767
Manufacturer: HAUPA
cross section [mm²]: 6-300
Design/drive: Battery-hydraulic
Crimp/press shape: Universal (interchangeable dies)
Price:
1926,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

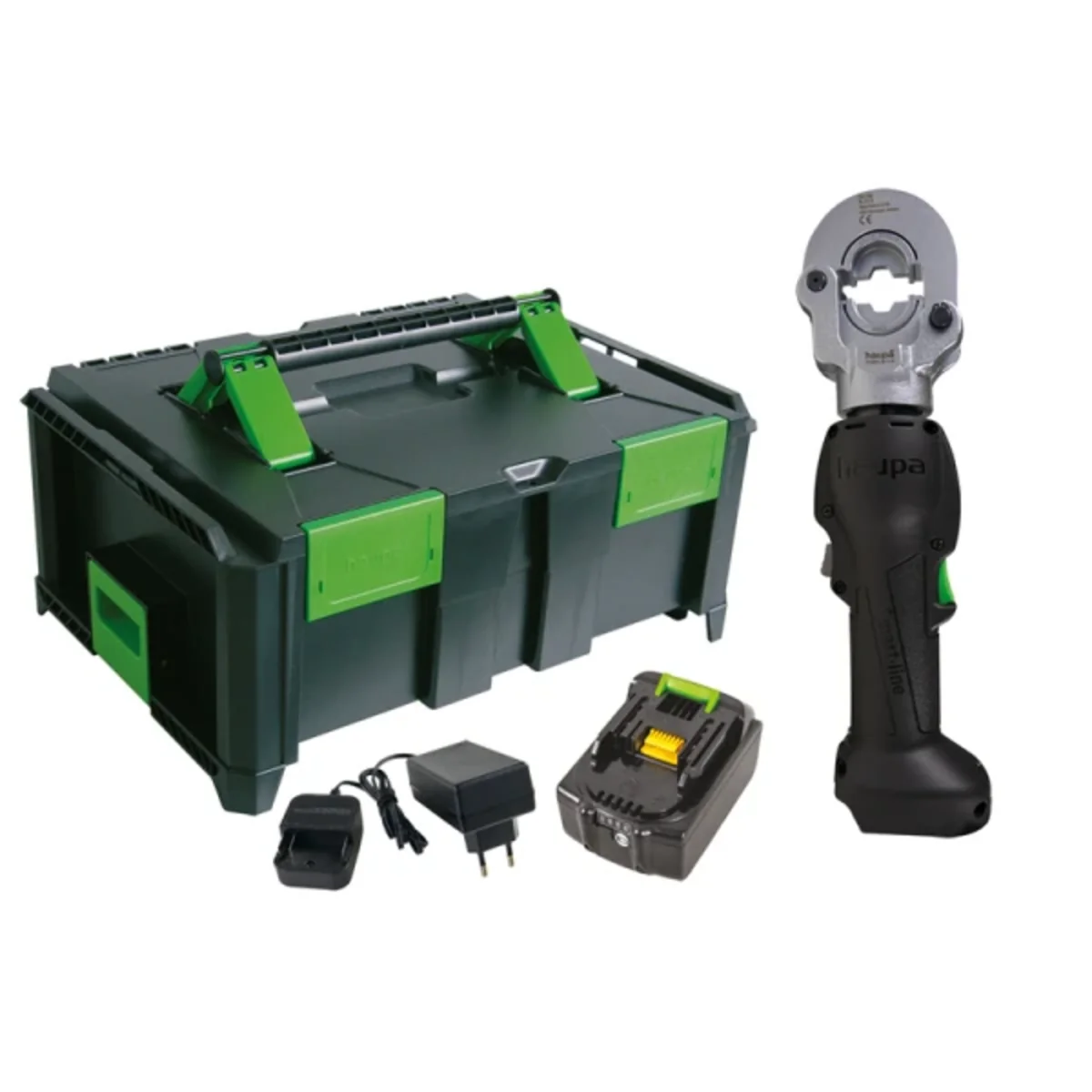

Electro-hydraulic crimper“Smart SO-6“ for exchangeable dies.

  • Head rotates 180º,
  • Clamping head,
  • Manual return after pressing,
  • Pressing force kN: 60 kN,
  • Working pressure bar: 700,
  • Opening / stroke: 17 mm
  • Clamping width: narrow
  • < li>Cable terminals: standard Cu/Al 6-300, DIN Cu 6-300, DIN Al 16-240,
  • Connectors: standard Cu/Al 6-300, DIN Cu 6- 300, DIN Al 16-240
  • Crimping time in seconds: approx. 5
  • Battery charging time in min: 60
  • Battery type: Li- Ion, 18V, 2Ah
  • Weight without battery in kg: 2.9
  • Weight with battery: 7.9

Technical data

  • cross section [mm²]
    6-300
  • Crimp/press shape
    Universal (interchangeable dies)
  • Design/drive
    Battery-hydraulic

Other technical data

  • Suitable for
    Cable lugs and connectors
  • Cross section
    6 ... 300 mm²
  • Inserts exchangeable
    Yes
  • Compression shape
    Universal (exchangeable inserts)
  • Construction/operation
    Accumulator-hydraulic
  • With automatic return
    No
