"HUPcompact" pliers for wire end sleeves 0.25-16mm² 213088

local index:
NNP613HAUP
Catalog No:
213088
EAN code:
4011923587192
Manufacturer: HAUPA
Length [mm]: 198
Width [mm]: 50
Weight [g]: 480
Price:
124,40 €
gross / pcs.
(including VAT 23%)
259,17 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

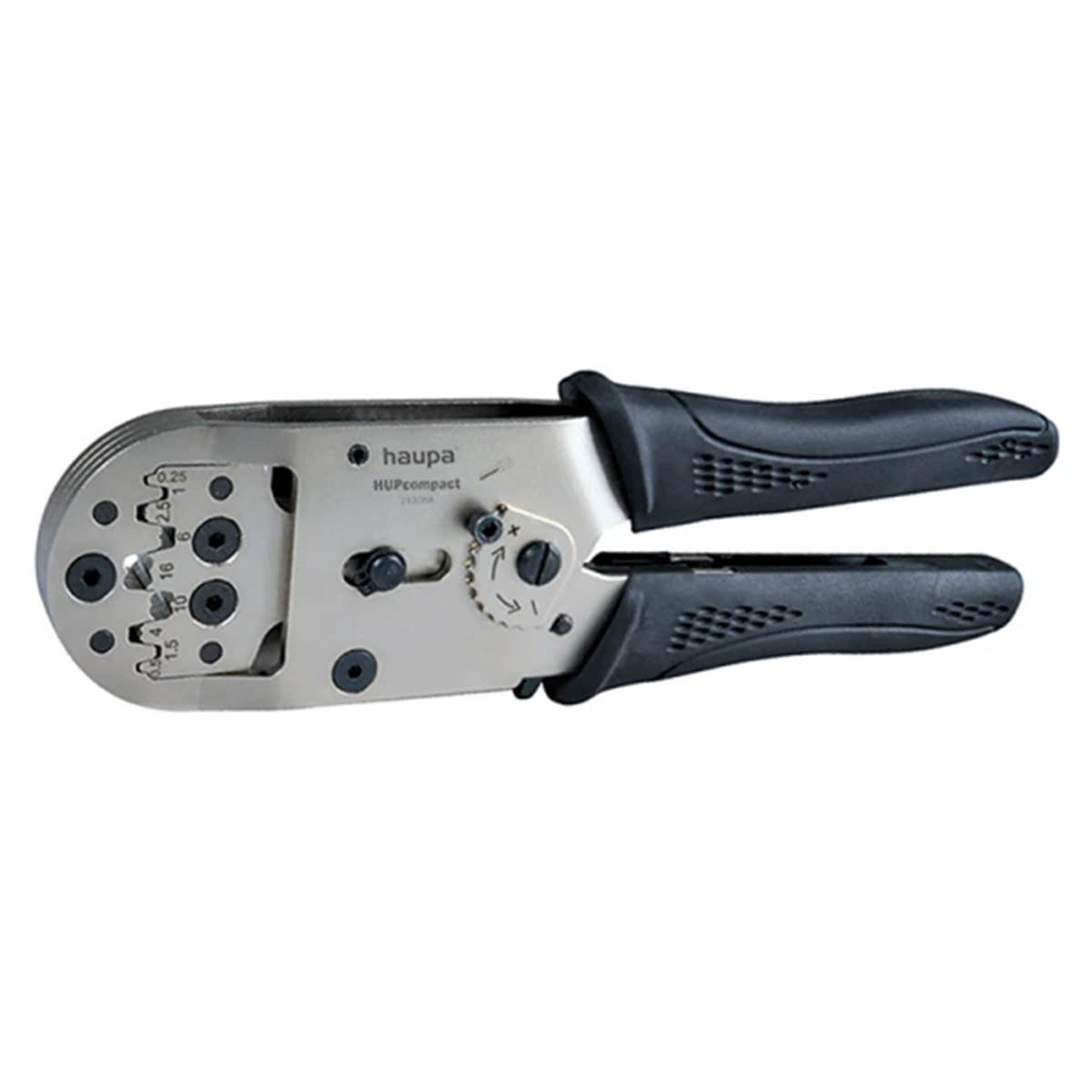

Crimping tool for ferrules HUPcompact HC02.

Special features:

  • The press body is made of steel hardened,
  • the outer surface is covered with a protective layer in silver.
  • 100% parallel feed,
  • precise clamping,
  • pressing force: 5 kN,
  • small compact design,
  • durability: 50,000 clamps.

Features:< /p>

  • Easy to obtain high clamping force thanks to optimized lever action,
  • Use of full clamping range and full clamping depth,
  • High quality steel metal parts,< /li>
  • all high-quality construction elements,
  • the ability to adjust the pressure force thanks to the eccentric axis,
  • unlockable forced lock,
  • recommended for production series,
  • small handle size.

Technical data

  • Length [mm]
    198
  • Weight [g]
    480
  • cross section [mm²]
    0.25 16
  • Width [mm]
    50
  • Vice
    trapezoidal

Other technical data

  • Suitable for
    Cable end sleeves
  • Cross section
    0.5 ... 16 mm²
  • With locking device (for mechanical tools)
    Yes
  • With automatic return
    No
  • Compression shape
    Trapezoid compression
  • Length
    198 mm
  • Construction/operation
    Mechanical

Manufacturer details

  • Manufacturer
    HAUPA GmbH
  • Address
    42857 Remscheid Lange Straße 40 Niemcy
