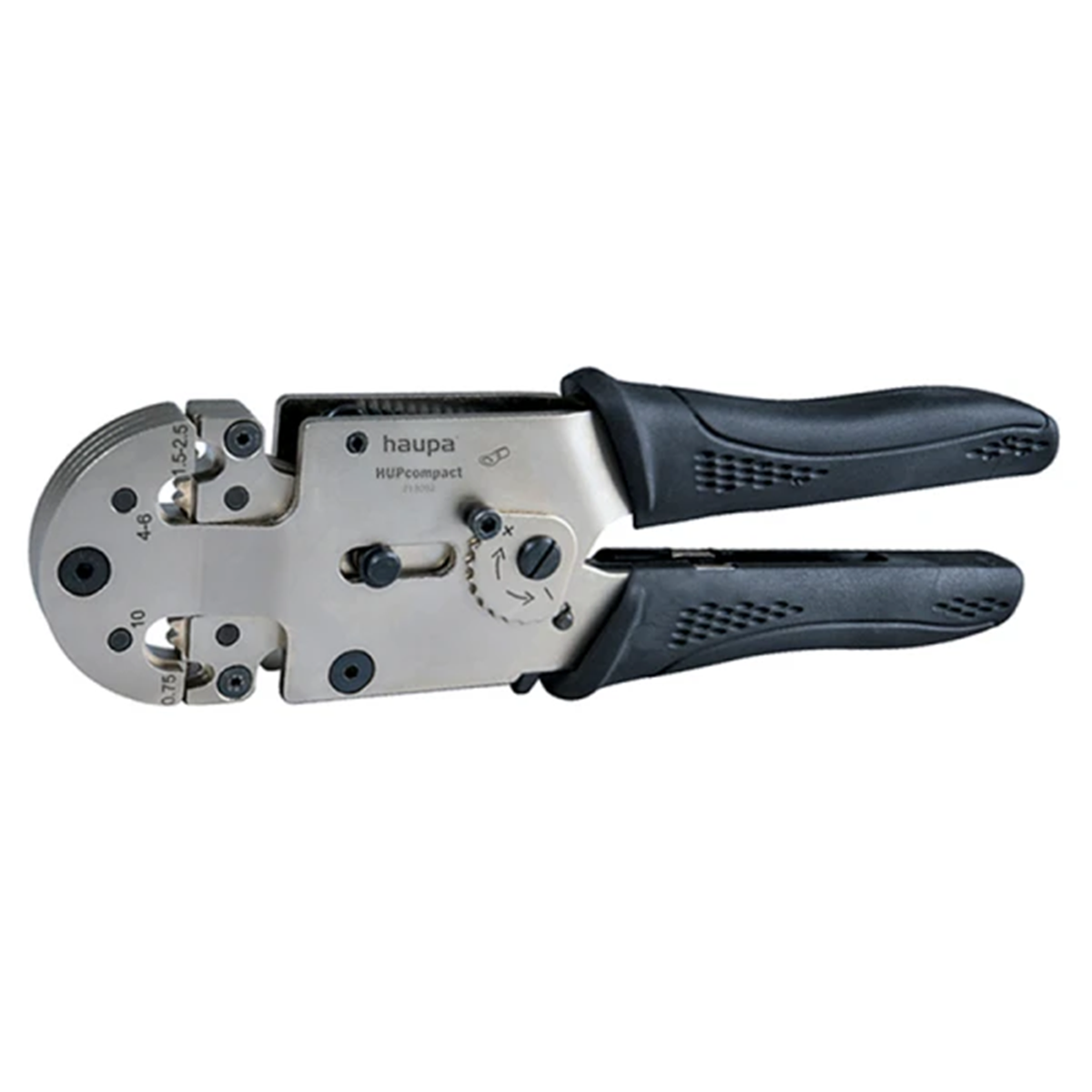

"HUPcompact" pliers for bare terminals 0.75-10mm² 213092

local index:
NNP615HAUP
Catalog No:
213092
EAN code:
4011923587215
Manufacturer: HAUPA
Length [mm]: 198
Width [mm]: 50
Weight [kg]: 0.48
Price:
138,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Prim for non-insulated lugs and connectors HUPcompact HC03.

Special features:

  • the body of the press is made of hardened steel,
  • the outer surface is covered with a protective layer in silver.
  • 100% parallel feed,
  • precise clamping,
  • pressing force: 5 kN,
  • small compact design,
  • durability: 50,000 clamps.

Features:

  • easy to obtain high clamping force thanks to optimized lever action,
  • use of the full clamping range and full clamping depth,
  • < li> metal parts made of high-quality steel,
  • all high-quality construction elements,
  • the ability to adjust the pressure force thanks to the eccentric axis,
  • unlockable positive lock,
  • recommended for mass production,
  • small handle size.

Technical data

  • Length [mm]
    198
  • Weight [kg]
    0.48
  • cross section [mm²]
    0.75 10
  • Width [mm]
    50
  • Vice
    Pin

Other technical data

  • Suitable for
    Cable lugs and connectors
  • Cross section
    0.75 ... 10 mm²
  • With locking device (for mechanical tools)
    Yes
  • With automatic return
    No
  • Compression shape
    Arbour clamping
  • Length
    198 mm
  • Construction/operation
    Mechanical
