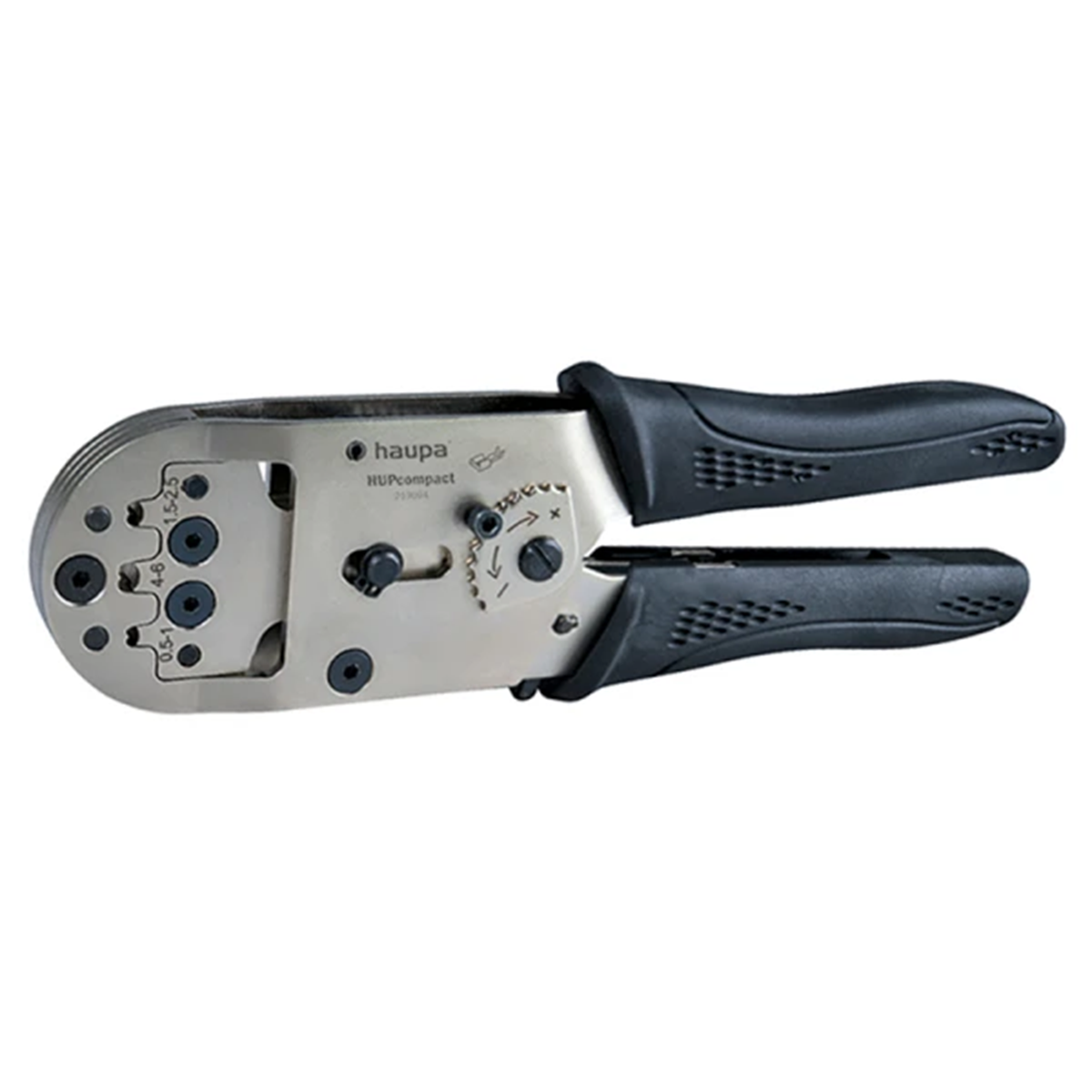

"HUPcompact" pliers for 0.5-6mm² connectors 213094

Index local:
NNP616HAUP
Numéro de catalogue:
213094
Code EAN:
4011923587222
Producteur: HAUPA
Length [mm]: 198
Width [mm]: 50
Weight [g]: 490
Prix:
180,83 €
gross / pcs.
(y compris la TVA 23%)
369,04 € gross/kg.
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Primage tool for connector terminalsHUPcompact HC04.

Special features:

  • the body of the press is made of hardened steel,
  • the outer surface is covered with a protective layer in silver.
  • 100% parallel feed,
  • precise clamping,
  • pressing force: 5 kN,
  • small compact design,
  • durability: 50,000 clamps,
  • with locator,
  • rolled clamp for connectors.

Features:

  • easy to obtain high clamping force thanks to optimized lever action,
  • use of the full clamping range and full clamping depth,
  • metal parts made of high-quality steel,
  • all high-quality construction elements,
  • adjustable pressing force thanks to the eccentric axis,
  • unlockable positive lock,
  • recommended for serial production,
  • small handle size.

Données techniques

  • Length [mm]
    198
  • Weight [g]
    490
  • Width [mm]
    50
  • cross section [mm²]
    0.5 6

Autres données techniques

  • Suitable for
    Cable lugs and connectors
  • Cross section
    0.5 ... 6 mm²
  • With locking device (for mechanical tools)
    Yes
  • With automatic return
    No
  • Compression shape
    Roll compression (shrinking)
  • Length
    198 mm
  • Construction/operation
    Mechanical

Détails du fabricant

  • Producteur
    HAUPA GmbH
  • Adresse
    42857 Remscheid Lange Straße 40 Niemcy
