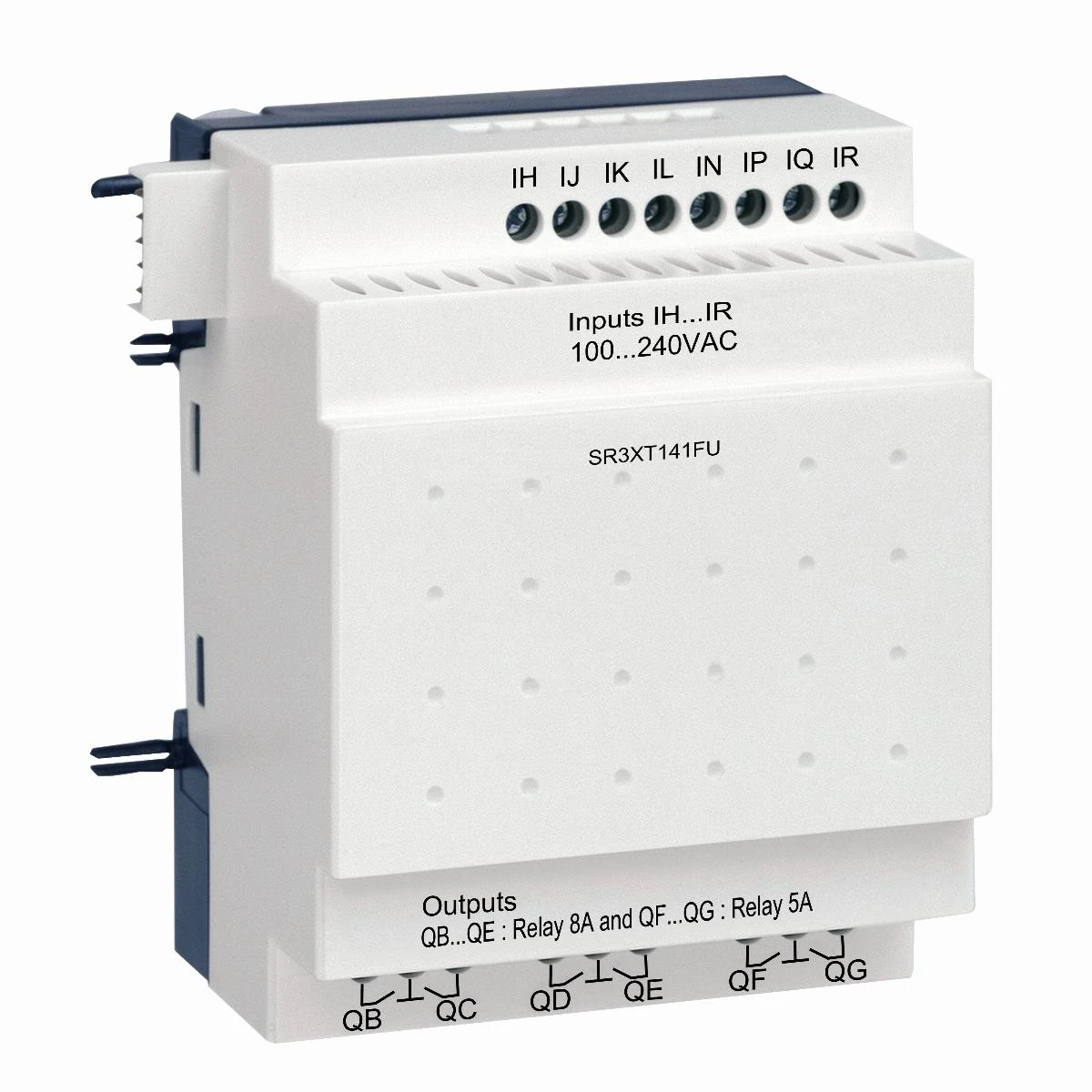

Zelio Logic 120VAC SR3XT141FU

local index:
RRR224SCHN
Catalog No:
SR3XT141FU
EAN code:
3389110550160
Manufacturer: SCHNEIDER ELECTRIC
Fixing: screw terminals
Price:
249,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Zelio Logic 120VAC

Technical data

  • Fixing
    screw terminals
  • PKWIU
    26.20.16.0

Other technical data

  • Supply voltage AC 50 Hz
    100 ... 240 V
  • Voltage type (supply voltage)
    AC
  • Number of analogue inputs
    0
  • Number of digital inputs
    8
  • With relay output
    Yes
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • Redundancy
    No
  • Degree of protection (IP)
    IP20
  • Expandable
    No
  • With time switch clock
    No
  • Wall mounting/direct mounting
    Yes
  • Rack-assembly possible
    No
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    72 mm
  • Depth
    59.5 mm
  • Supply voltage AC 60 Hz
    100 ... 240 V
  • Switching current
    8 A
  • Number of analogue outputs
    0
  • Number of digital outputs
    6
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces USB
    0
  • Number of HW-interfaces wireless
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • With display
    No
  • Basic device
    Yes
  • Expansion device
    Yes
  • Rail mounting possible
    Yes
  • Front built-in possible
    Yes
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    90 mm
