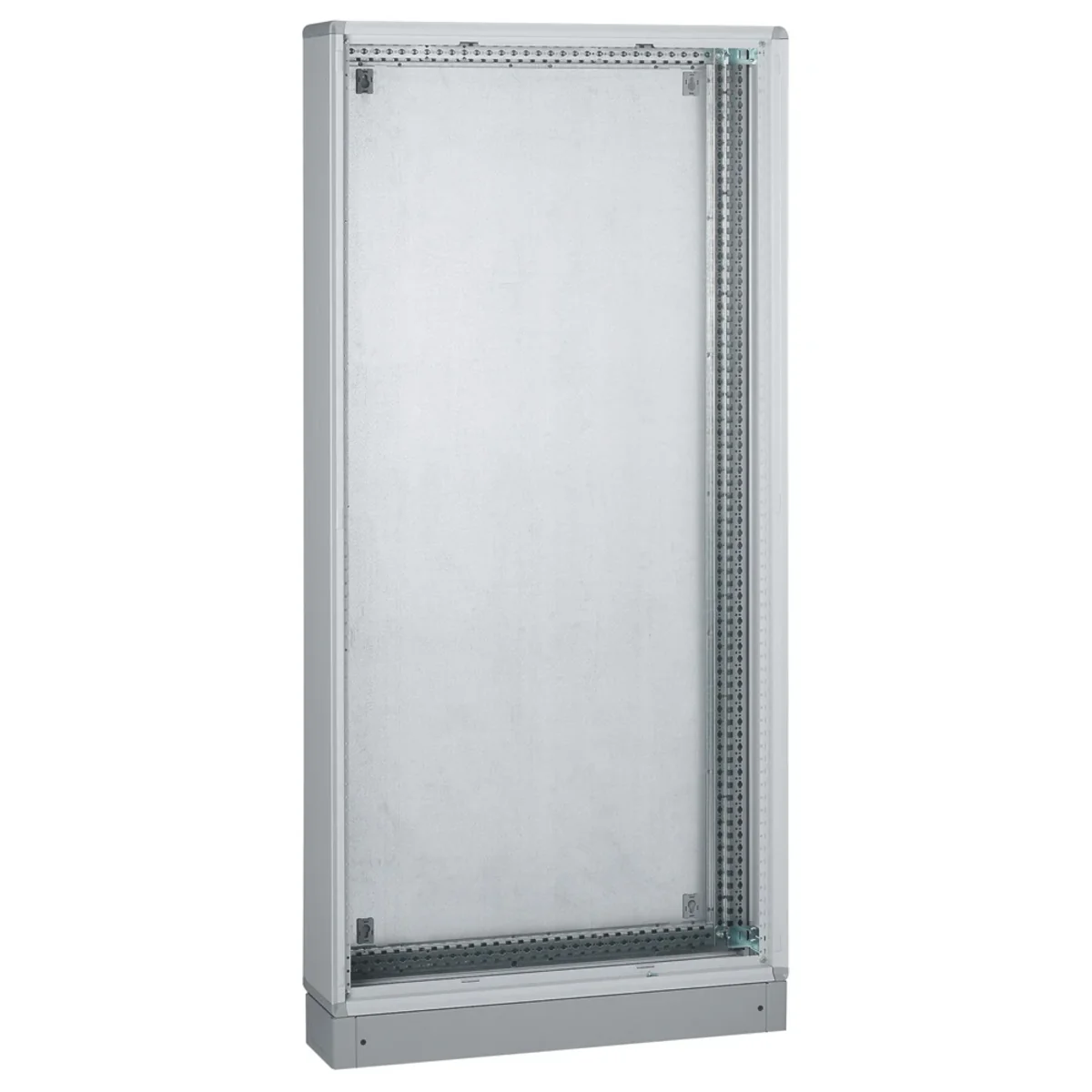

XL3 800 Metal enclosure 1950 x 910 020409

Metal enclosures
The possibility of mounting devices with In up to 800 A
Ear resistance up to 750 °C/ 5s, in accordance with the IEC 60695-2-1 standard
Intended for installation in public buildings
Capacity: 24 and 36 modules per row. Switchgear color: RAL 7035, plinth: RAL 7004
Supplied with mounting profiles fixed on the rear wall, with a cable gland plate that can be cut to size and accessories for connecting (horizontally and vertically) the switchboards into sets
IP 43 - IK 08 with gasket and door
IP 40 - IK 08 with door
IP 30 - IK 07 without door


Product parameters

Switchboards with 100mm high plinth
Width 910 mm
Cable compartment can be attached.
24 or 36 modules in a row (after using the internal cable compartment)
height: 1950 mm
Usable height: 1800 mm
Total width : 910 mm
Useable width: 850 mm
depth: 230 mm
