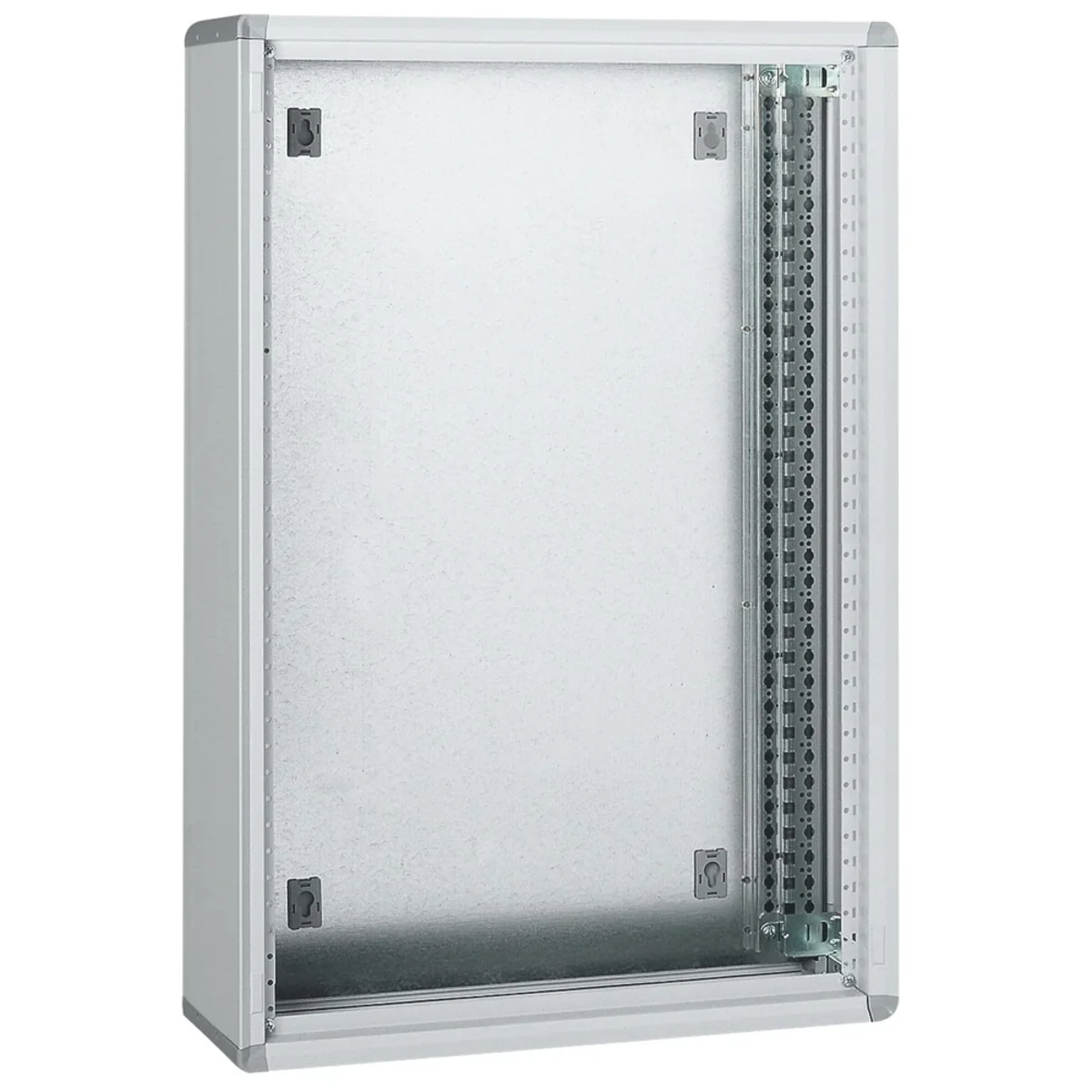

XL3 800 Metal enclosure 1050 x 660 020401

Metal enclosures
The possibility of mounting devices with In up to 800 A
Heat resistance up to 750 °C/ 5s, in accordance with the IEC 60695-2-1 standard
Intended for installation in public buildings
Capacity: 24 and 36 modules per row. Switchgear color: RAL 7035, plinth: RAL 7004
Supplied with mounting profiles fixed on the rear wall, with a cable gland plate that can be cut to size and accessories for connecting (horizontally and vertically) the switchboards into sets
IP 43 - IK 08 with gasket and door
IP 40 - IK 08 with door
IP 30 - IK 07 without door


Product parameters

Distributions
Width 660 mm
24 modules in a row
height: 1050 mm
usable height: 1000 mm
total width: 660 mm
usable width: 600 mm
depth: 230 mm
