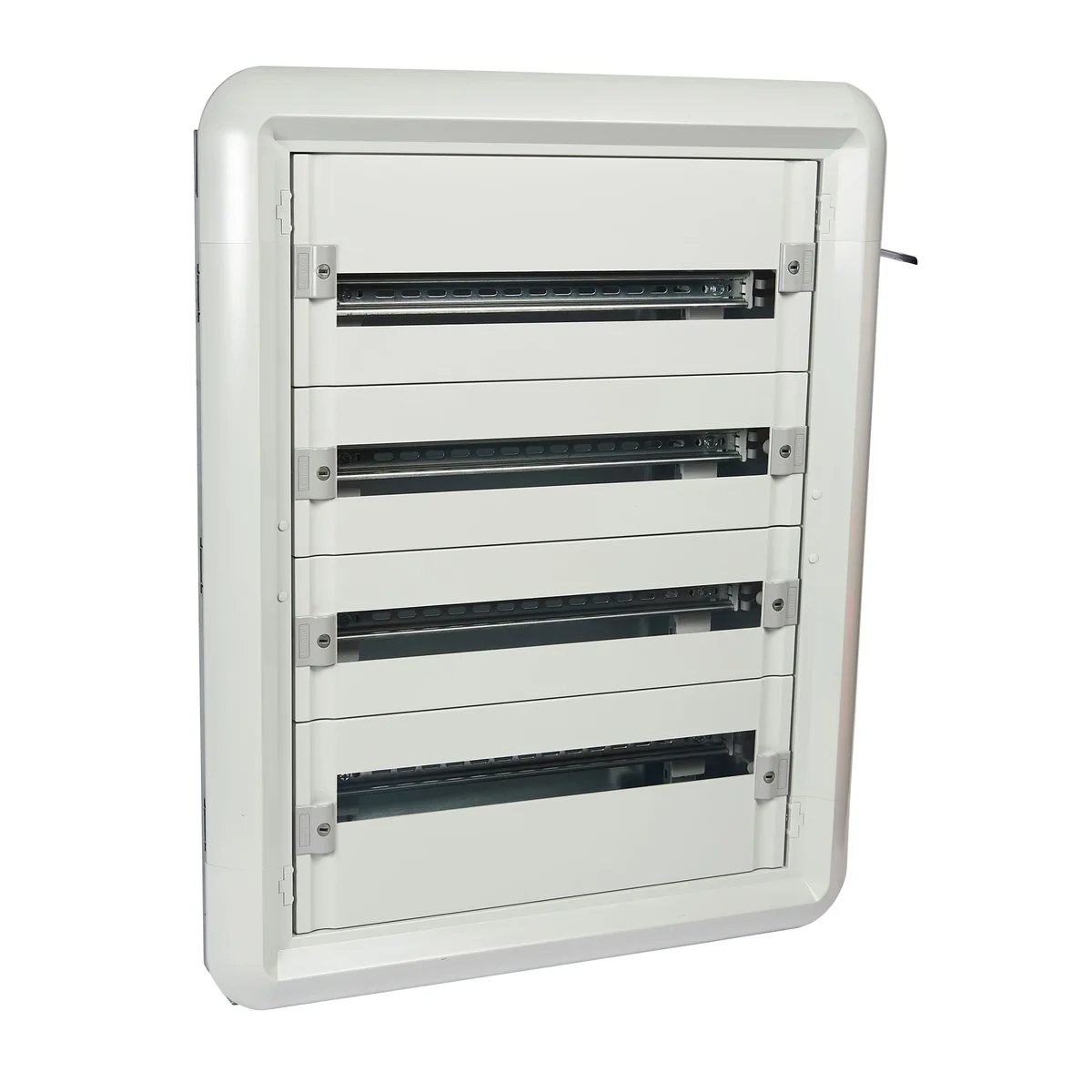

XL3 160 Recessed switchgear 4R 020064

Fire resistance up to 750 °C/5s, in accordance with IEC 60695-2-1.
Intended for installation in public buildings.
Removable support structure equipped with TH35 mounting brackets
Capacity: 24 modules in a row. Gray color RAL 7035
Equipped with:
- PE terminal strip: 36 holes 1, 5 to 10 mm2 and 2 holes 35 mm2
- N terminal strips
-TH35 mounting brackets and front covers.< br>Doors ordered separately
IP 40 - IK 08 with door
IP 30 - IK 07 without door
Recessed metal part, frame and insulating covers
Prepared for DPX 125 assembly


Product parameters

Recessed enclosures
Equipped
Number of rows: 4
Number of modules: 96
Dimensions of the external frame:
height: 845 mm
width: 670 mm
Recess dimensions:
height: 790 mm
width: 617 mm
