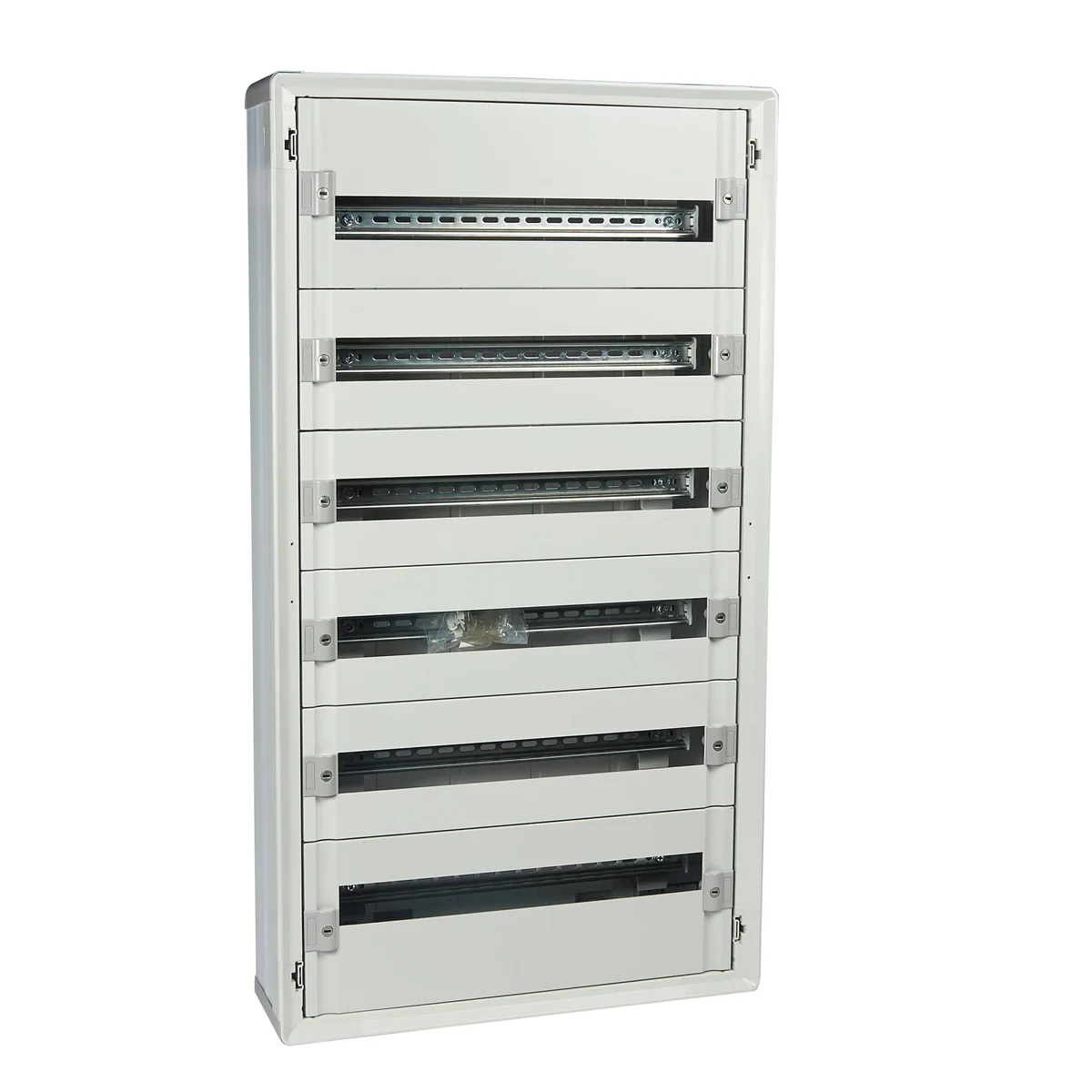

XL3 160 6R insulating switchgear 020076

Fire resistance up to 750 °C/5s, in accordance with IEC 60695-2-1.
Intended for installation in public buildings. Protection class II
Capacity: 24 modules in a row.
Colour: gray RAL 7035
Equipped with:
- PE connection strip: 36 holes 1.5 to 10 mm2 and 2 holes 35 mm2
- connection strips N
- mounting brackets TH35 and front covers.
IP 43 - IK 07 with gasket and door
IP 40 - IK 08 with door
IP 30 - IK 07 without door
Adapted for mounting DPX 125


Product parameters

Switchboards - wall-mounted, insulating
Number of rows: 6
Number of modules: 144
height: 1050 mm
width: 575 mm
depth: 147 mm
NOTE: Doors must be ordered separately
