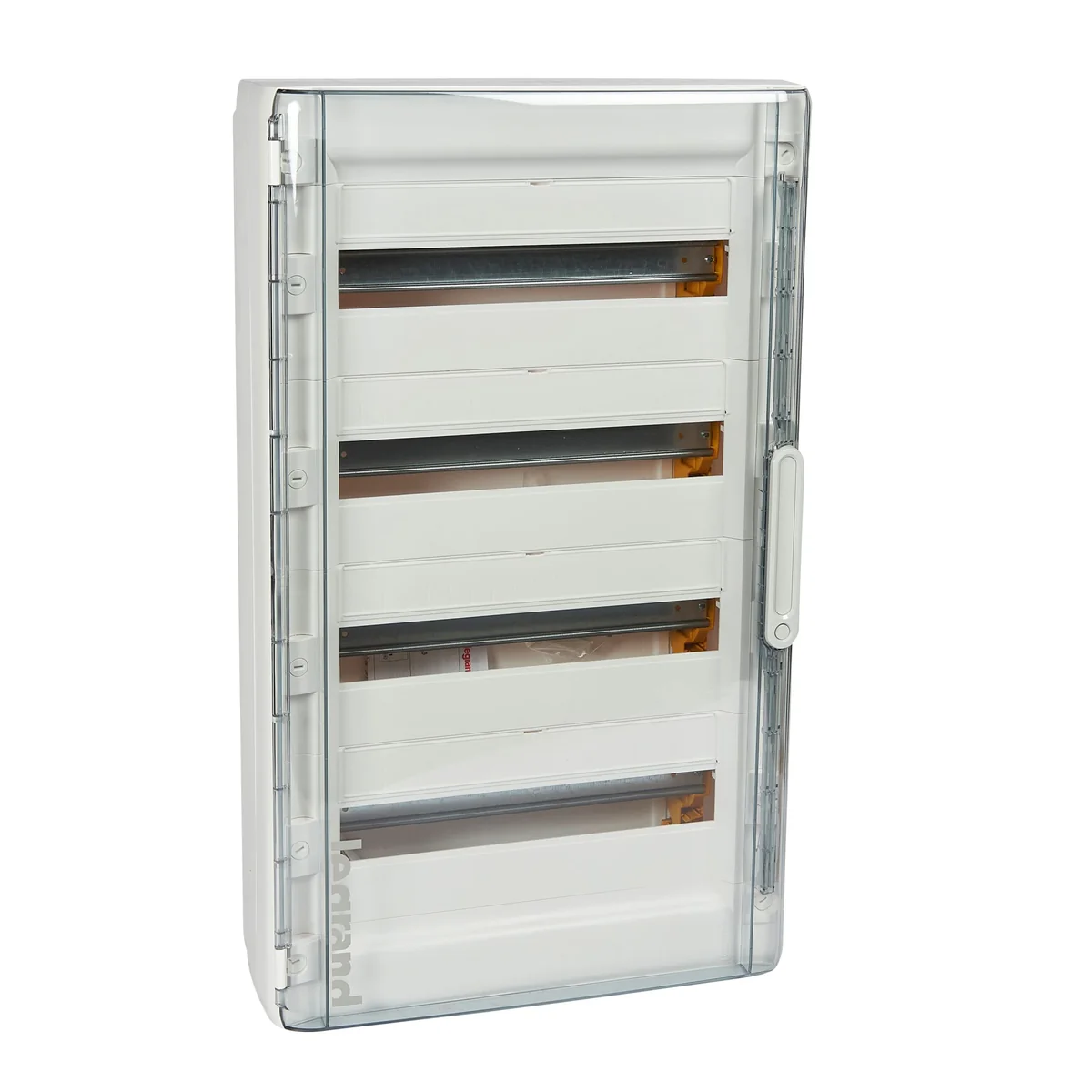

XL3 125 Wall-mounted switchgear 4X18transparent door 401659

Number of modules in a row: 18
White color RAL 9003
Fully reversible switchboards - supporting structure, doors and covers
Equipment:
- doors (transparent or white depending on the type),
- removable supporting structure with the possibility of tilting with mounted brackets,
- cable gland plates (upper and lower), removable without tools,
- covers fixed by a 1/4 turn of the screw, removable individually,
- strips connection plates IP2x N+PE,
- a strip of 5-module plugs with the possibility of cutting off 1 or 0.5 module,
- self-adhesive stickers for describing circuits
Bracket spacing: 150 mm
The brackets can be mounted in 2 positions (which makes it possible to mount both modular and DPX3 cameras). They can be dismantled individually without the need for tools. The switchboard can be equipped with full covers and perforated plates for mounting modular devices (2, 3 or 4 rows)
Dimensions (H x W x D): 750 x 450 x 150 mm
Number of rows: 4
Number modules: 72
Transparent doors
