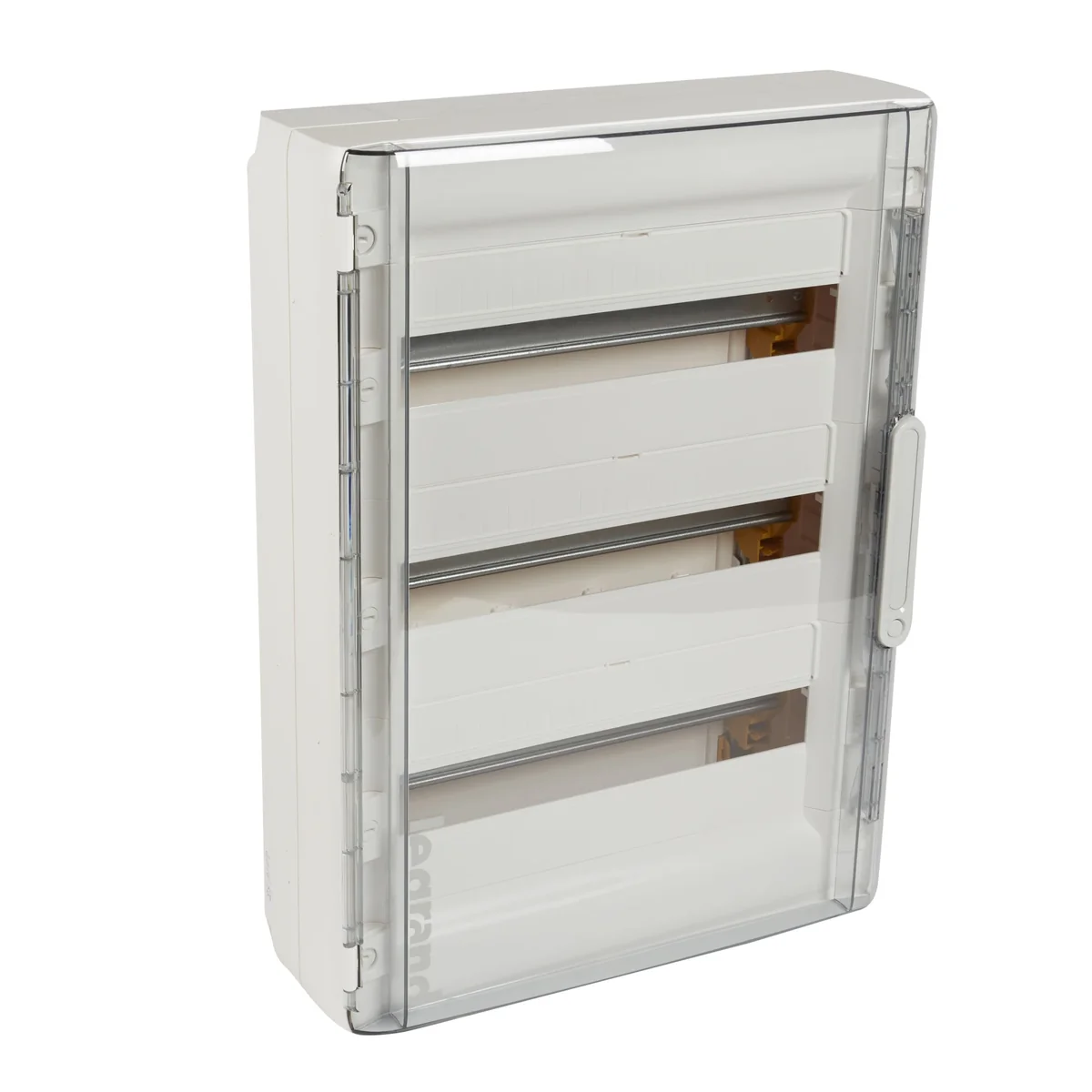

XL3 125 Wall-mounted distribution board 3X18transparent door 401658

Degree of protection: IP40 - IK09 with door, IP30 - IK08 without door
Second protection class
Self-extinguishing material: resistance to heat: 750 °C
Compliance with standards: IEC 60439-3 and IEC 60670-24< br>

Product parameters

Wall-mounted switchboards XL3 125
Number of modules in a row: 18
Color: white RAL 9003
Fully reversible switchboards - supporting structure, doors and covers
Equipment:
- door (transparent or white depending on the type),
- removable supporting structure with the possibility of tilting with mounted brackets,
- cable gland plate (upper and lower), disassembled without using tools,
- covers fixed by a 1/4 turn of the screw, individually removable,
- IP2x N+PE connection strips,
- strip of 5-module plugs with the possibility of cutting off 1 or 0.5 modules,
- self-adhesive stickers for labeling the circuits
Bracket spacing: 150 mm
The brackets can be mounted in 2 positions (which makes it possible to mount both modular and DPX3 devices). They can be dismantled individually without the need for tools. The switchgear can be equipped with full covers and perforated plates for mounting modular devices (2, 3 or 4 rows)
Dimensions (H x W x D): 600 x 450 x 150 mm
Number of rows: 3
Number modules: 54
Transparent doors
