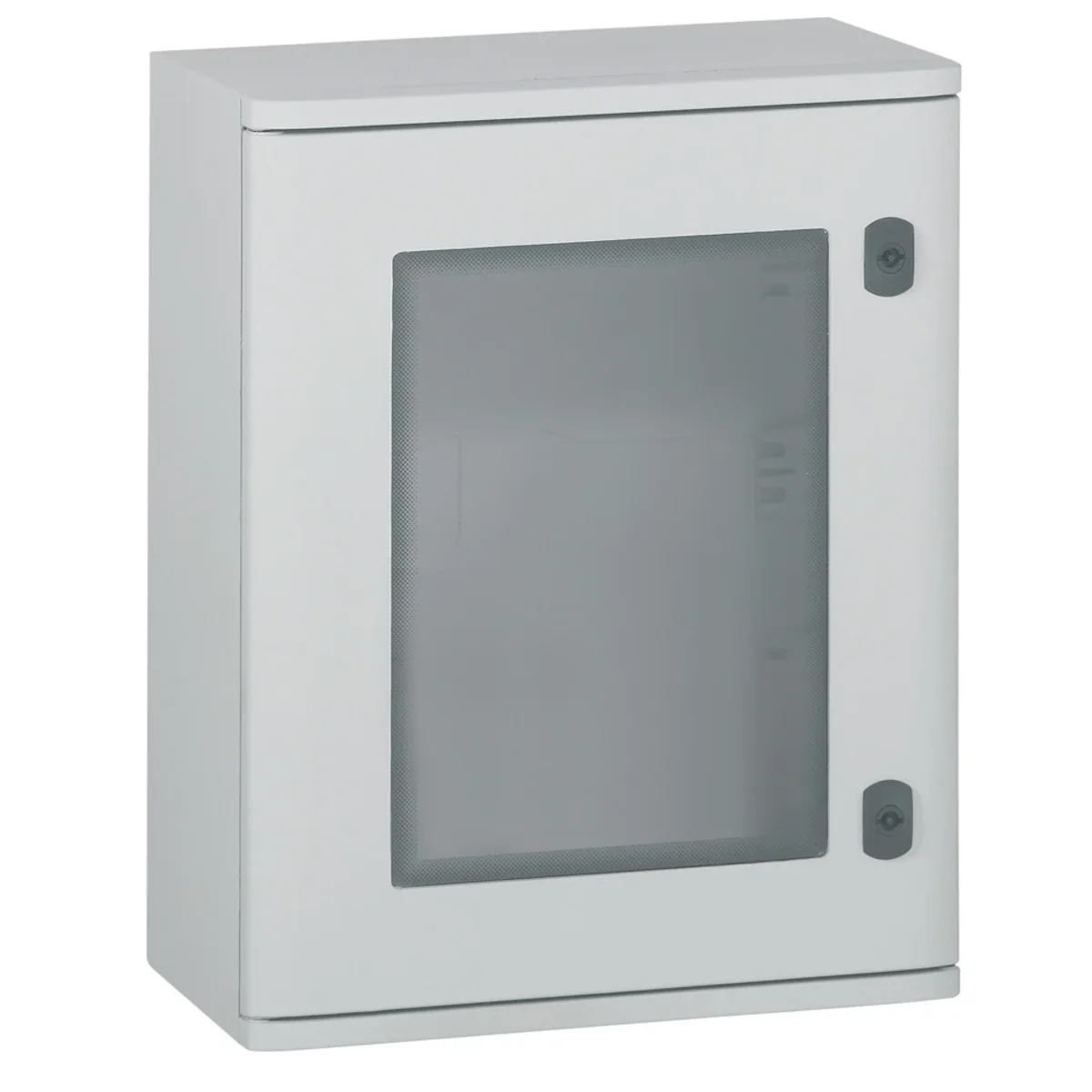

Wardrobe marina 400 x 300 x 200 window 036271

Indeks lokalny:
RIH070LEGR
Numer katalogowy:
036271
Kod EAN:
3245060362713
Producent: LEGRAND
Color: Gray
Cena:
2 378,89 zł
gross / szt.
(w tym VAT 23%)
do 2 tygodni
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

IP66 in accordance with the PN-EN 60529 standard
IK10 in accordance with the PN-EN 62262 standard
Insulation class II (used to create completely isolated environments in accordance with the PN-EN 60439-1 standard)
Reinforced with glass fiber
Made of heat-resistant material up to 960°C in accordance with the PN-EN 60695-2-11 standard
Excellent resistance to UV rays and brine mists, good for petrol, oils, greases
Reversible doors, opening angle 180° (except ref. 0362 50)
Hinge pins made of stainless steel (except ref. 0362 50)
Supplied with 2 double bar locks (1 lock for ref. 0362 50)
Lockable with lever Ref. 0368 05 + lock insert
Direct mounting of equipment on the top and bottom of the cabinet (screws included)
Adjustable panel part 500 x 400 x 200 mm(except ref. 0362 50)
Adjustable depth for cabinets with a depth of more than 200 mm using kit Ref. 0362 42


Product parameters

Cabinets with glass doors
Tempered colored glass. Door color: RAL7035
External dimensions: height x width x depth: 400 x 300 x 206 mm
Window dimensions: height x width: 235 x 145 mm

Dane techniczne

  • Color
    Gray
  • PKWIU
    27.12.40.0

Pozostałe dane techniczne

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    Yes
  • Height
    400 mm
  • Depth
    200 mm
  • Inner depth
    178 mm
  • Material plate thickness door/cover
    2.8 mm
  • RAL-number
    7035
  • Extension possible
    No
  • Surface protection
    Untreated
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP66
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Width
    300 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    2.5 mm
  • Colour
    Grey
  • Number of openings for flange plates
    0
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    Yes
  • Protection class
    II
  • Circuit integrity
    None

Dane producenta

  • Producent
    Legrand Polska Sp. z o.o.
  • Adres
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Opakowania zbiorcze

Rodzaj opakowania Karton Paleta
Ilość 1 szt. 50 szt.
Waga (kg) 4,500 225,000
Objętość (m3) 0,031 1,932
Szerokość (m) 0,310 1,200
Długość (m) 0,245 1,610
Głębokość (m) 0,410 1,000
