VOLTA Terminal block for control cables 7-pin VZ465N
local index:
RRR4X8HAGE
Catalog No:
VZ465N
EAN code:
3250616666429
Price:
17,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

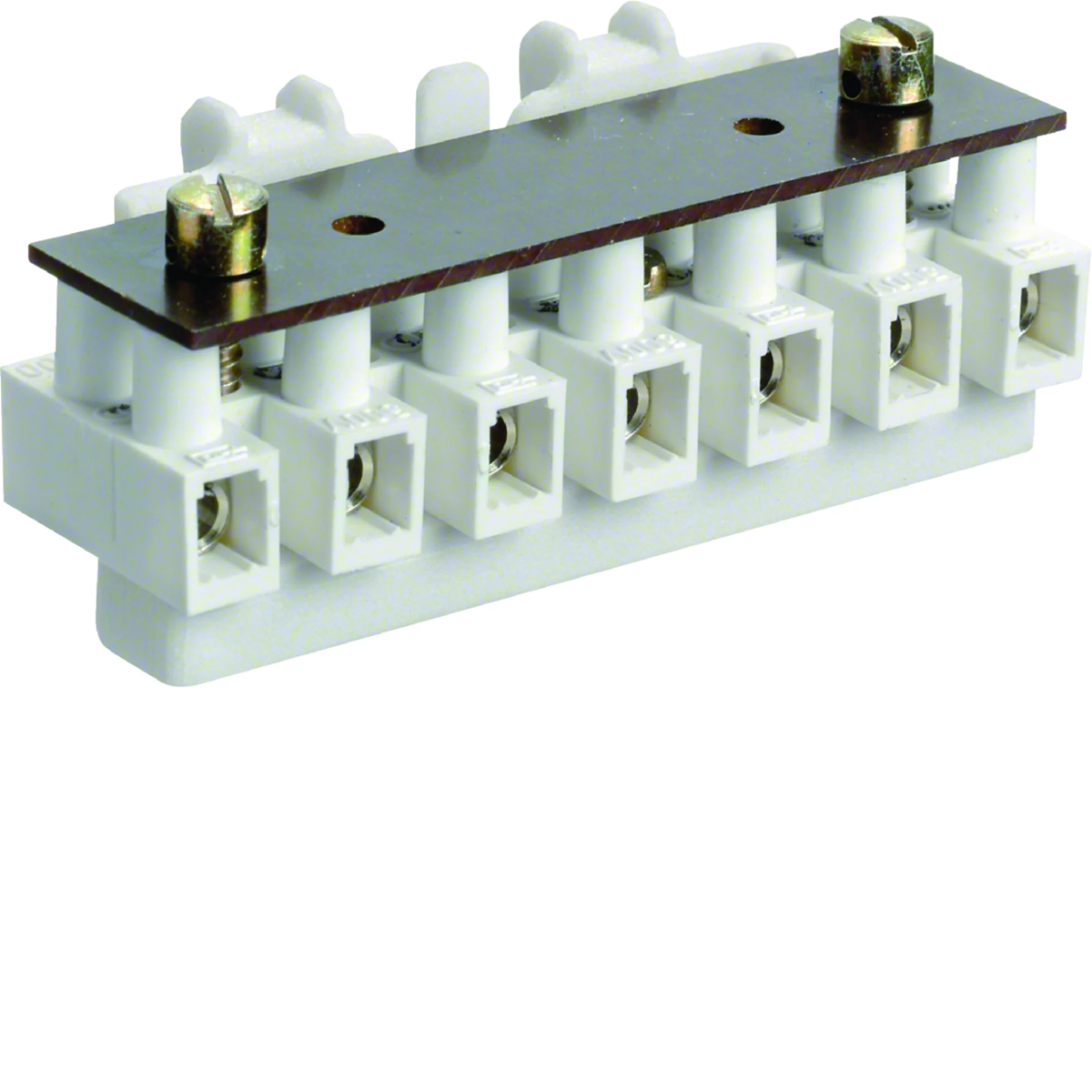

VOLTA Terminal block for control cables 7-pin
Technical data
-
Length [mm]80
-
Width [mm]32
-
PKWIU27.33.13.0
-
MaterialMiscellaneous materials
-
Height [mm]34
Other technical data
-
Drill hole distance centrically11 mm
-
Connectable conductor cross section fine-strand without cable end sleeve1.5 ... 6 mm²
-
Connectable conductor cross section solid-core1.5 ... 6 mm²
-
Rated current In63 A
-
Type of electrical connection 2Screw connection
-
Number of clamp positions per pole14
-
Material insulation bodyOther
-
Closing plate requiredNo
-
TransparentNo
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve1.5 ... 6 mm²
-
Connectable conductor cross section multi-wired8 ... 8 mm²
-
Type of electrical connection 1Screw connection
-
Number of poles7
-
Mounting methodDirect mounting
-
Operating temperature-25 ... 40 °C
-
ColourWhite
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 25 pcs. | 3200 pcs. |
| Weight (kg) | 0,049 | 0,050 | 1,340 | 196,520 |
| Width (m) | 0,171 | 0,040 | 0,180 | 0,800 |
| Length (m) | 0,116 | 0,030 | 0,125 | 1,110 |
| Depth (m) | 0,282 | 0,080 | 0,290 | 1,200 |
